WE866E4-P Module Hardware User Guide
1VV0301487 Rev. 1.2 36 2018-07-27
PRELIMINAR
Y

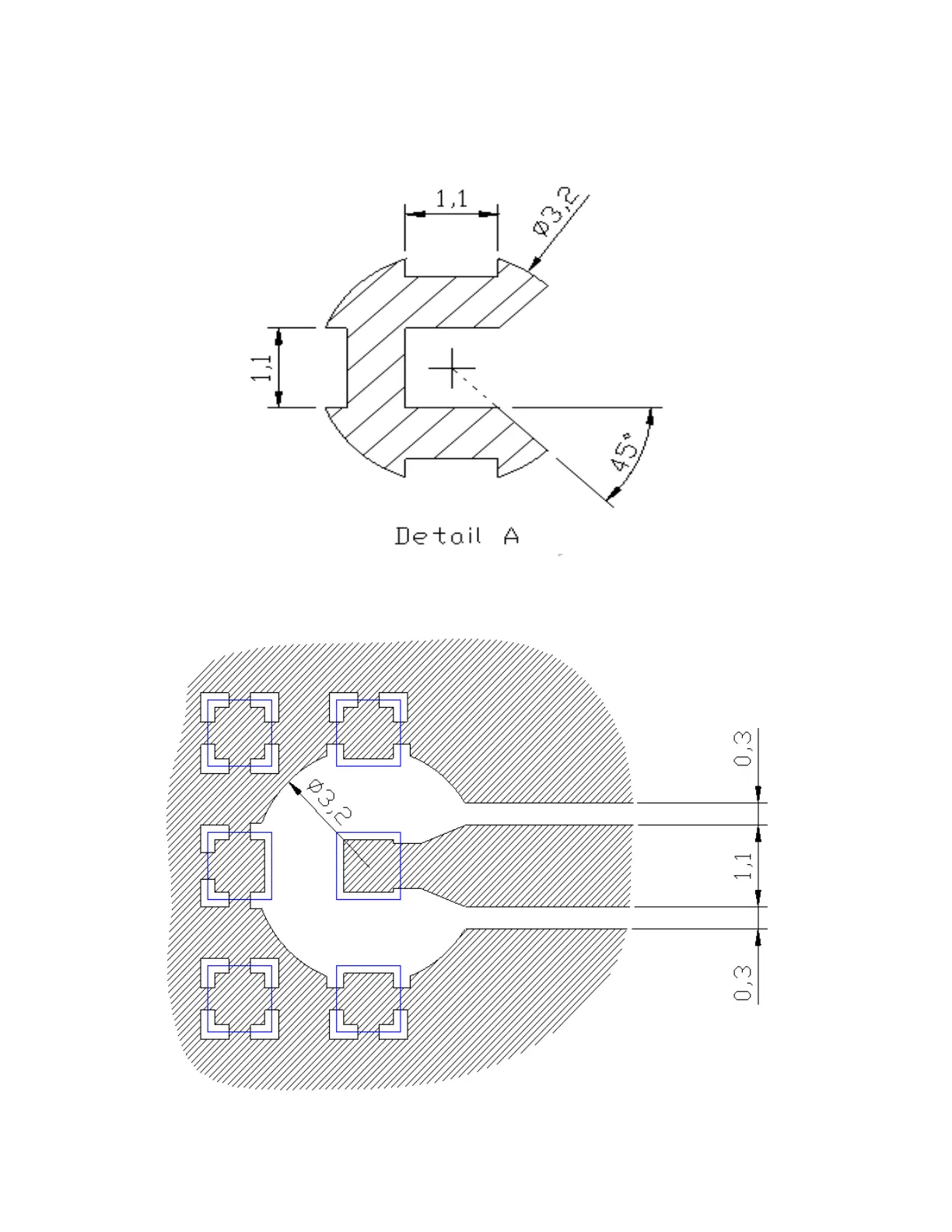

Figure 6, page 36 shows the Pad A details.
Figure 6 Pad A Details
Figure 7, page 36 shows the Pad details.
Figure 7 Pad Details
