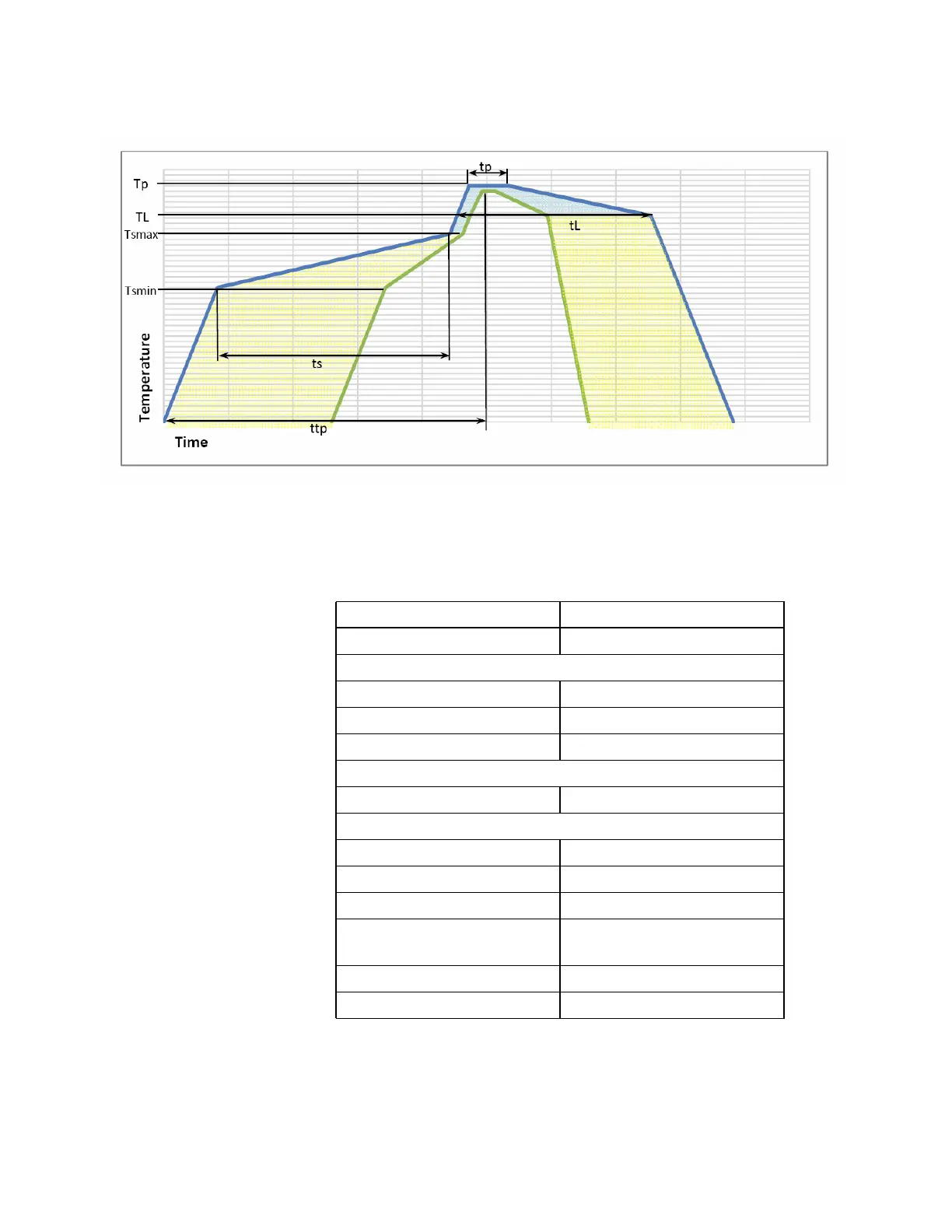

Figure 11 Solder Re-flow Profile
Table 18, page 40 provides the Solder re-flow profile features and its Pb-Free Assembly.
Table 18 Solder Re-flow Parameters
Profile Features Pb-Free Assembly
Average ramp-up rate (TL to TP) 3°C/second max
Preheat
Temperature Min (Tsmin) 150°C
Temperature Max (Tsmax) 200°C
Time (min to max) (ts) 60-180 seconds
Tsmax to TL
Ramp-up rate 3°C/second max
Time Maintained
Temperature (TL) 217°C
Time (t) 60-150 seconds
Peak Temperature (Tp) 245 +0/-5°C
Time within 5°C of actual Peak
Temperature (tp)
10-30 seconds
Ramp-down Rate 6°C/second max
Time 25°C to Peak Temperature 8 minutes max
