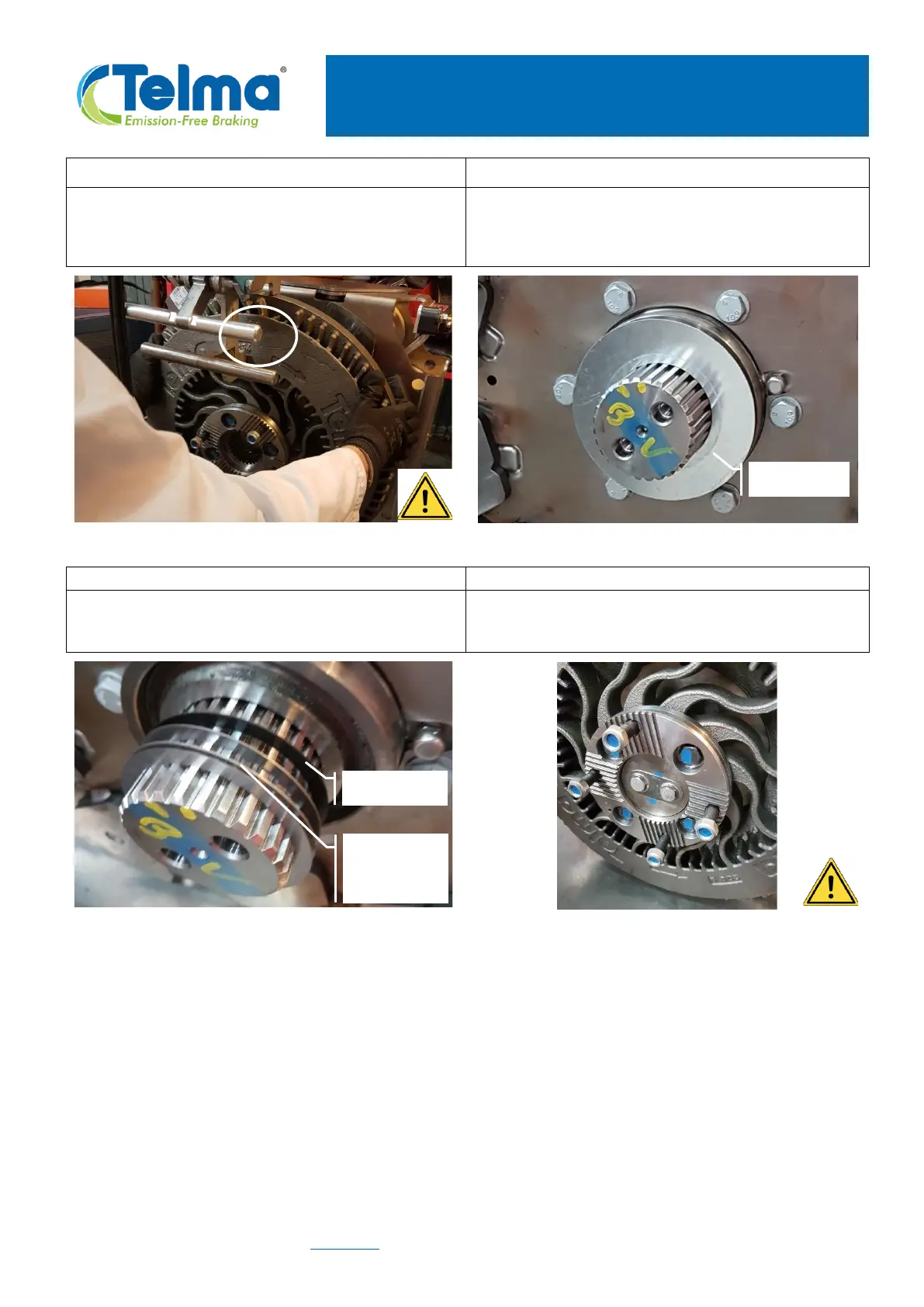

Insert a lifting hook between 2 cooling fins on the
frontal face of the rotor to facilitate pull off of the
rotor and coupling flange assembly.
Remove the dust shield from the shaft.
Remove from the shaft the air gap adjusting shims
and the 0.70mm black shim with Nuflon coating.
Do the same steps from 6A-2 to 6A-7 for the other
rotor (drive axle side).
Shims used
to set air
gap
