8. ANNEX
A. RETARDER AIR GAP VALUES
You will find the necessary information for this equipment in the following catalogue:
OC441xxx Maintenance manual for air gap adjusting on AF8 retarders

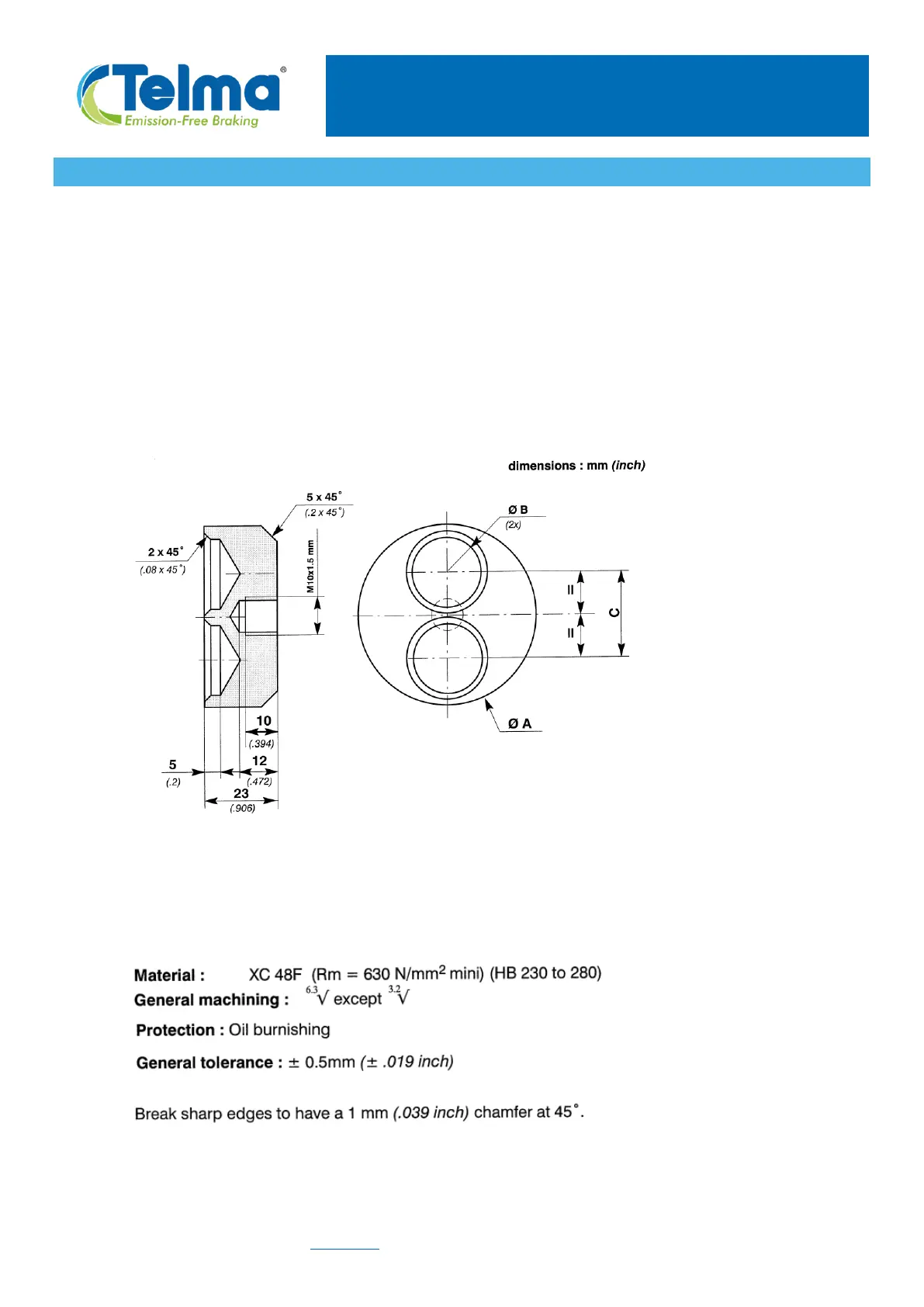

B. TAB WASHER DRIVER to be made locally
For Axial AF8 retarder: Ø A = 75mm (2.953”)
Ø A = 24mm
+0.1
0
(0.945” / 0.949”)
C = 40mm ± 0.1 (1.570” / 1.579”)
