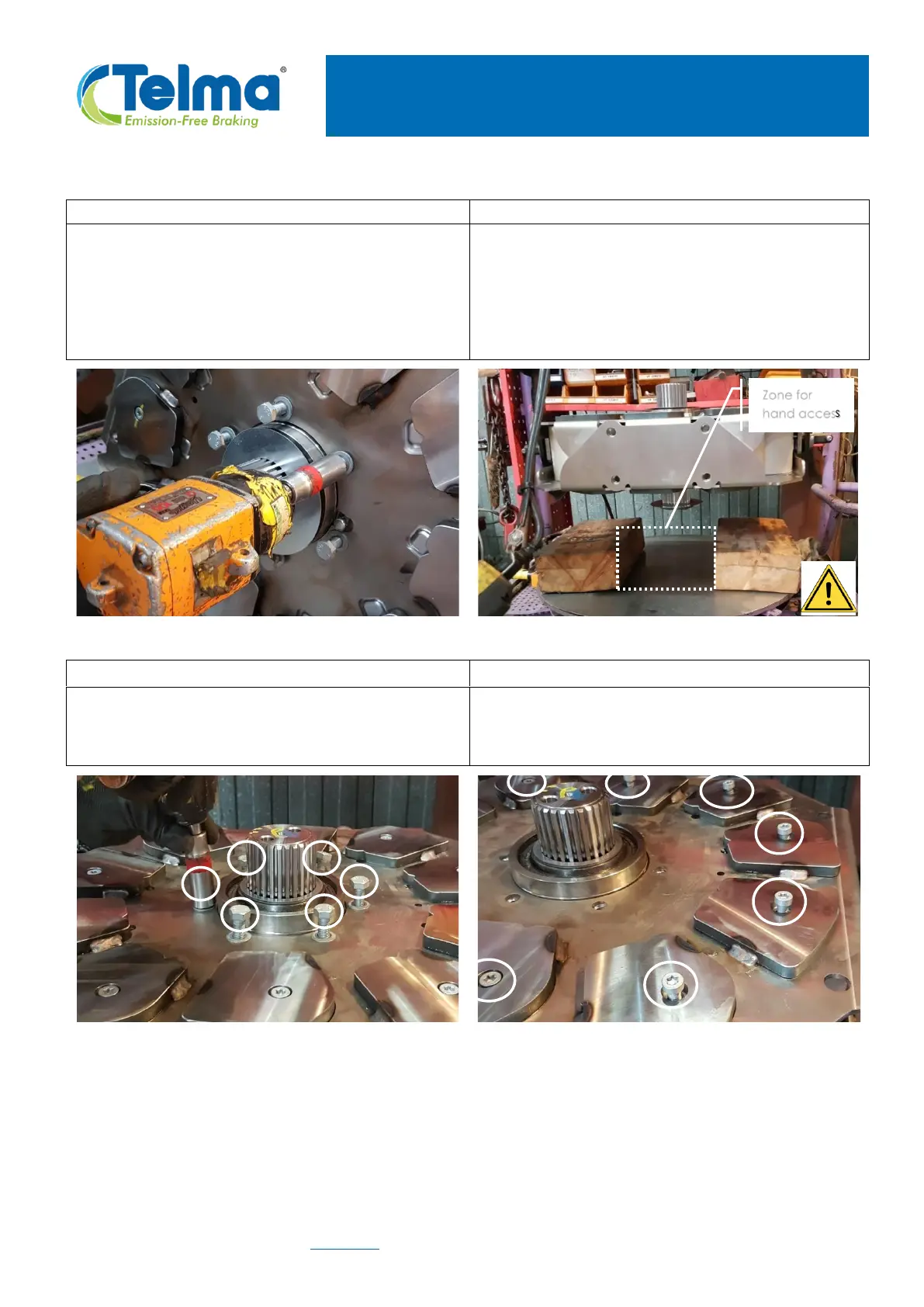

B. RETARDER STATOR OPENING
Unscrew and remove the 6 screws securing the
hub on gearbox side. Use a 19mm socket.
Put the stator in horizontal position (gearbox side
with the removed hub screws down) on wooden
blocks to protect the shaft. The wood beams must
be thick enough in order that the shaft does not
touch the table and for providing hand access for
further operations.
On the upper side, unscrew and remove the 6
screws securing the hub on axle side. Use a 19mm
socket.
On the upper side, remove the 10 screws securing
the pole shoes plate, using a Torx® TX40 socket.
