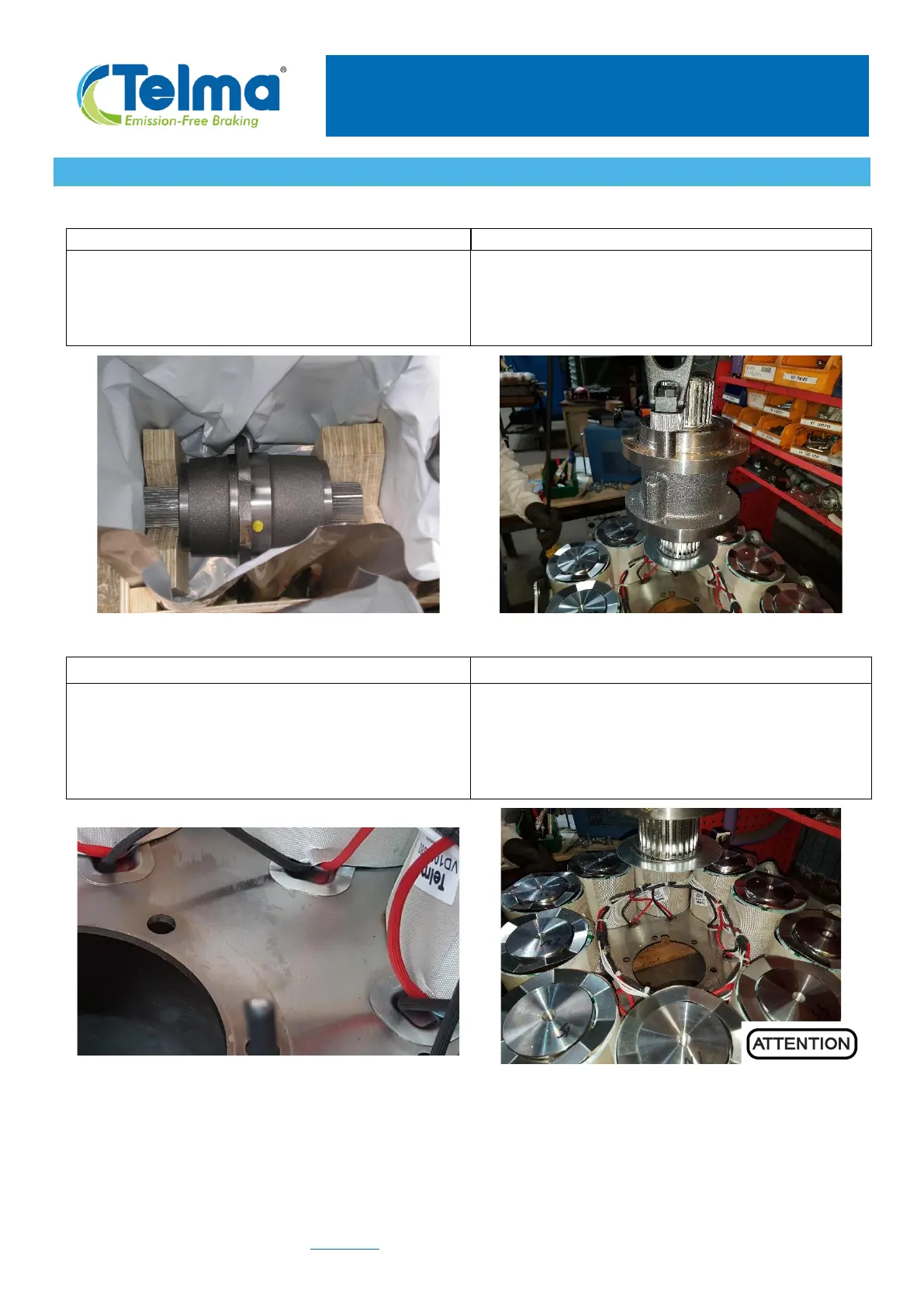

7. RE ASSEMBLING STEPS
A. INSTALLATION OF THE NEW COMPLETE HUB ASSEMBLY
Unpack the new hub assembly.
The “drive axle side” is shown below on the right
hand side.
On the drive axle side, fit 2 hooks or 2 screws either
in the shaft end or in the hub shoulder in order to
lift the hub assembly in the vertical position.
Before hub fitment, if a coil has also been
replaced, ensure that the coil wires are well placed
in the notch of the coil protective washer.
Orientate the hub at the correct position for the
vent cap, inside its indexing location.
Lower the hub in stator, taking care to coils and
internal wiring.
Remove hooks or screws after hub positioning.
