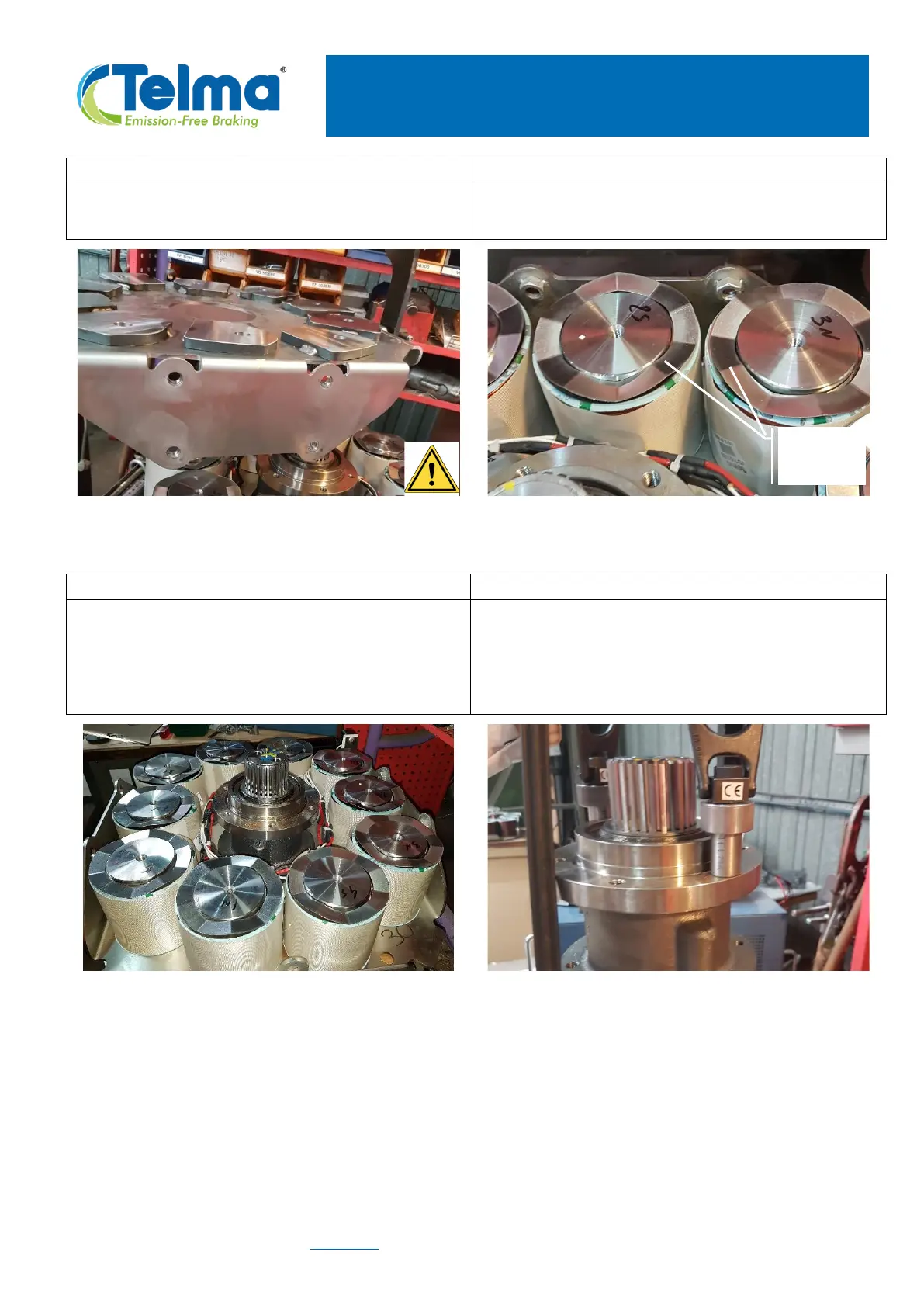

Lift and remove completely the pole shoes plate.
Put aside the 10 pressure washers from the top of the
coils in order not to lose or damage these parts.
C. REMOVAL OF THE DEFECTIVE HUB
View of the stator with the hub assembly ready to
be removed.
Pull on the screw by hand to help removing the hub
Fit 2 hooks or 2 screws either in the shaft end or in the
hub shoulder and pull out the hub assembly with
care in order not to damage the internal wiring nor
the coil insulators.
