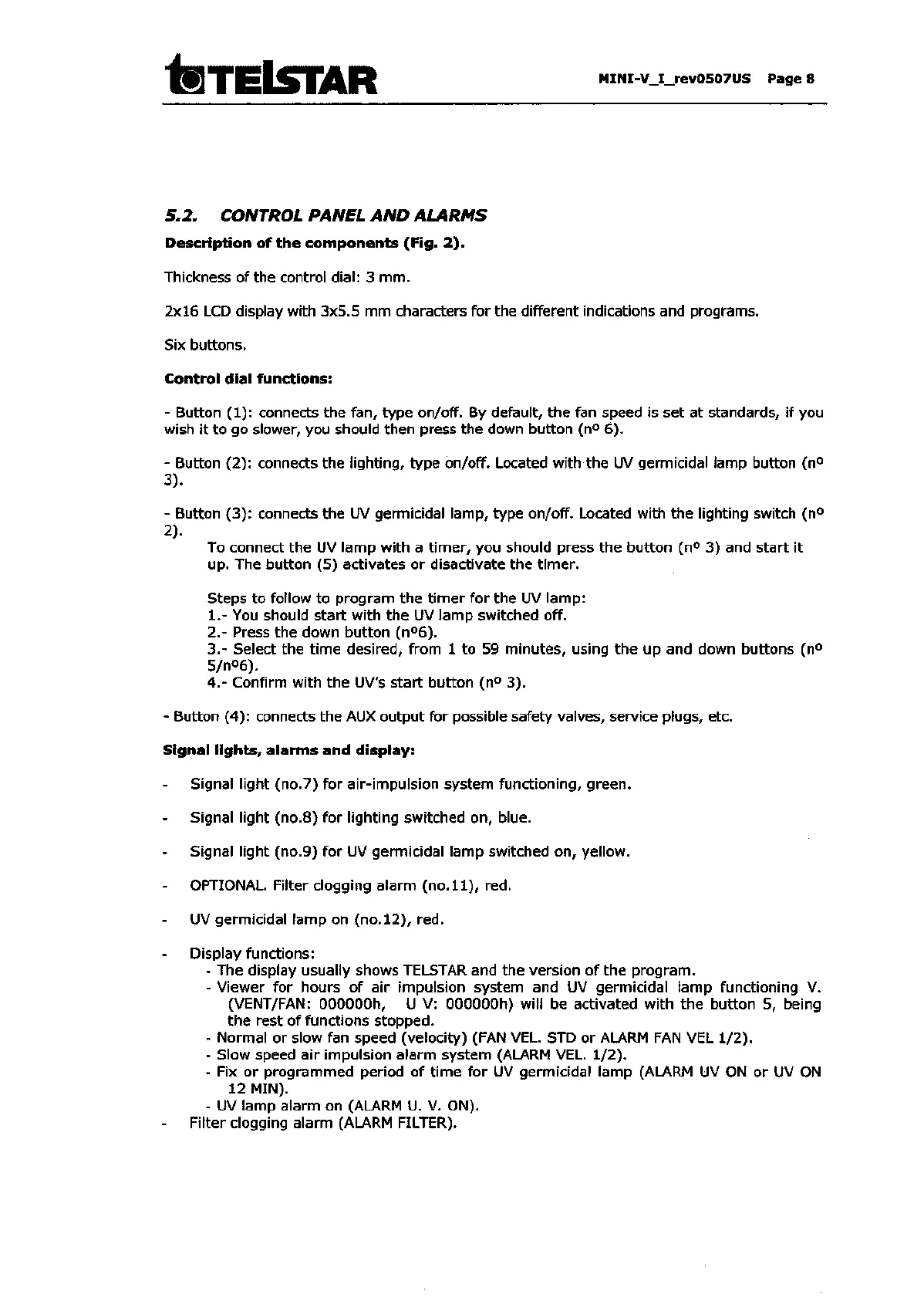

5.2. CONTROL PANEL AND ALARMS
Description of the components (Fig. 2).
Thickness of the control
dial:
3 mm.
2x16 LCD display with 3x5.5 mm characters for the different indications and programs.
Six buttons.
Control dial functions:
- Button (1): connects the fan, type on/off. By default, the fan speed is set at standards, if you
wish it to go slower, you should then press the down button (n° 6).
- Button (2): connects the lighting, type on/off. Located with the UV germicidal lamp button (n°
3).
- Button (3): connects the UV germicidal lamp, type on/off. Located with the lighting switch (n°
2).
To connect the UV lamp with a timer, you should press the button (n° 3) and start it
up.
The button (5) activates or disactivate the timer.
Steps to follow to program the timer for the UV lamp:
1.-
You should start with the UV lamp switched off.
2.-
Press the down button (n°6).
3.- Select the time desired, from 1 to 59 minutes, using the up and down buttons (n°
5/n°6).
4.-
Confirm with the UV's start button (n° 3).
- Button (4): connects the AUX output for possible safety valves, service plugs, etc.
Signal lights, alarms and display:
Signal light (no.7) for air-impulsion system functioning, green.
Signal light (no.8) for lighting switched on, blue.
Signal light (no.9) for UV germicidal lamp switched on, yellow.
OPTIONAL. Filter clogging alarm (no.11), red.
UV germicidal lamp on (no. 12), red.
Display functions:
- The display usually shows TELSTAR and the version of the program.
- Viewer for hours of air impulsion system and UV germicidal lamp functioning V.
(VENT/FAN:
OOOOOOh, U V: OOOOOOh) will be activated with the button 5, being
the rest of functions stopped.
- Normal or slow fan speed (velocity) (FAN VEL STD or ALARM FAN VEL 1/2).
- Slow speed air impulsion alarm system (ALARM VEL. 1/2).
- Fix or programmed period of time for UV germicidal lamp (ALARM UV ON or UV ON
12 MIN).
- UV lamp alarm on (ALARM U. V. ON).
- Filter clogging alarm (ALARM FILTER).
