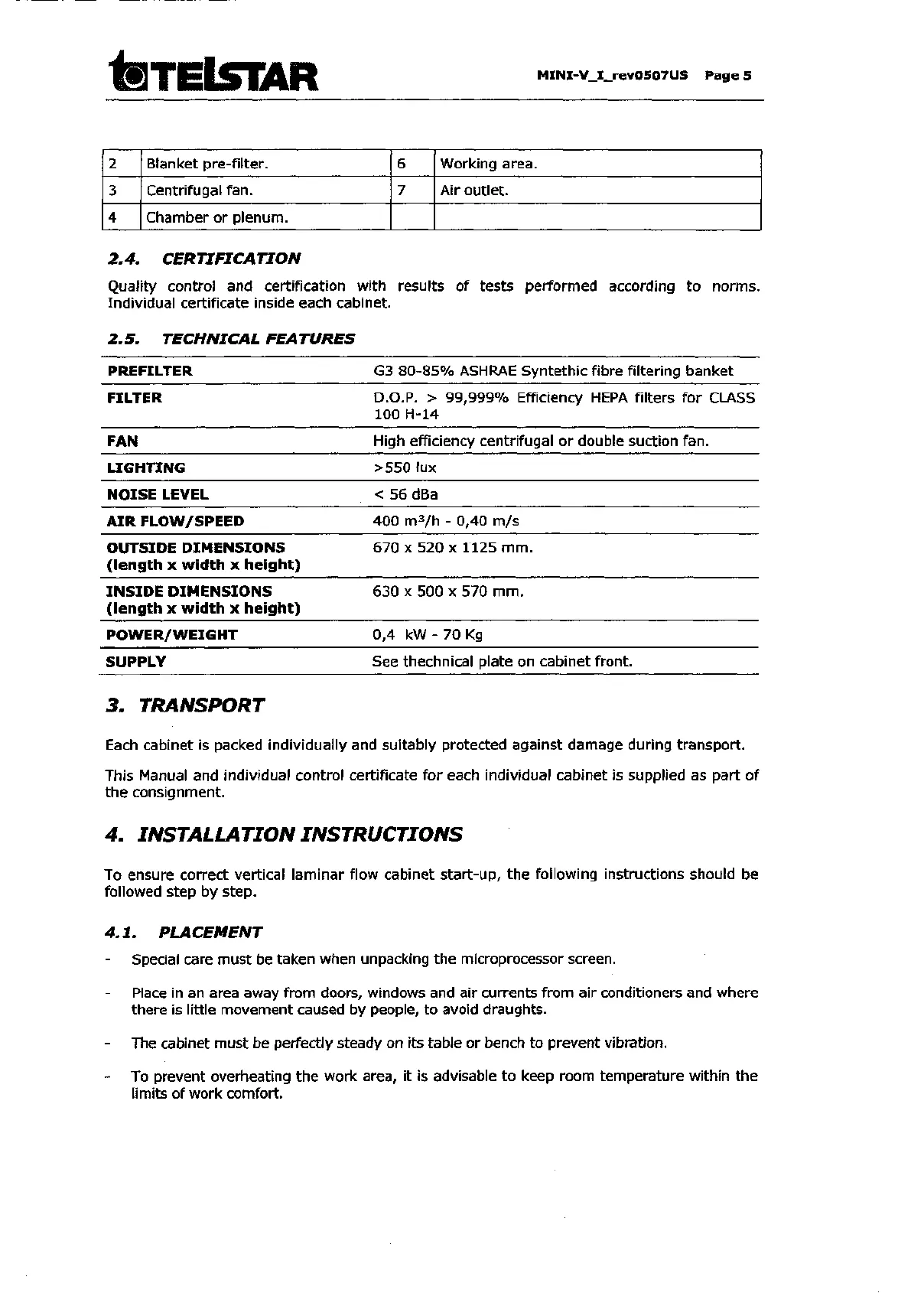

MINI-V_I_revO5O7US Page
5
2
3
4
Blanket pre-filter.
Centrifugal fan.
Chamber or plenum.
6
7
Working area.
Air outlet.
2.4.
CERTIFICATION
Quality control and certification with results of tests performed according to norms.
Individual certificate inside each cabinet.
2.5. TECHNICAL FEATURES
PREFILTER
FILTER
FAN
LIGHTING
NOISE LEVEL
AIR FLOW/SPEED
OUTSIDE DIMENSIONS
(length x width x height)
INSIDE DIMENSIONS
(length x width x height)
POWER/WEIGHT
SUPPLY
G3 80-85% ASHRAE Syntethic fibre filtering banket
D.O.P.
>
99,999% Efficiency HEPA filters
for
CLASS
100
H-14
High efficiency centrifugal
or
double suction
fan.
>550
lux
<
56 dBa
400
m
3
/h - 0,40 m/s
670
x 520 x 1125 mm.
630
x 500 x 570 mm.
0,4
kW - 70 Kg
See thechnical plate
on
cabinet front.
3- TRANSPORT
Each cabinet is packed individually and suitably protected against damage during transport.
This Manual and individual control certificate for each individual cabinet is supplied as part of
the consignment.
4. INSTALLATION INSTRUCTIONS
To ensure correct vertical laminar flow cabinet start-up, the following instructions should be
followed step by step.
4.1.
PLACEMENT
Special care must
be
taken when unpacking
the
microprocessor screen.
Place
in an
area away from doors, windows
and air
currents from
air
conditioners
and
where
there
is
little movement caused
by
people,
to
avoid draughts.
The cabinet must
be
perfectly steady
on its
table
or
bench
to
prevent vibration.
To prevent overheating
the
work area,
it is
advisable
to
keep room temperature within
the
limits
of
work comfort.
