MINI-V_I_rev0507US Page 10
For protection against direct UV ray radiation.
- Pipette fastening support: Reference 11289
A self sticking stainless steel part
to
place inside
the
cabinet
in a
position chosen
by the
user.
Dimensions: U 30x25mm 280 mm
long.

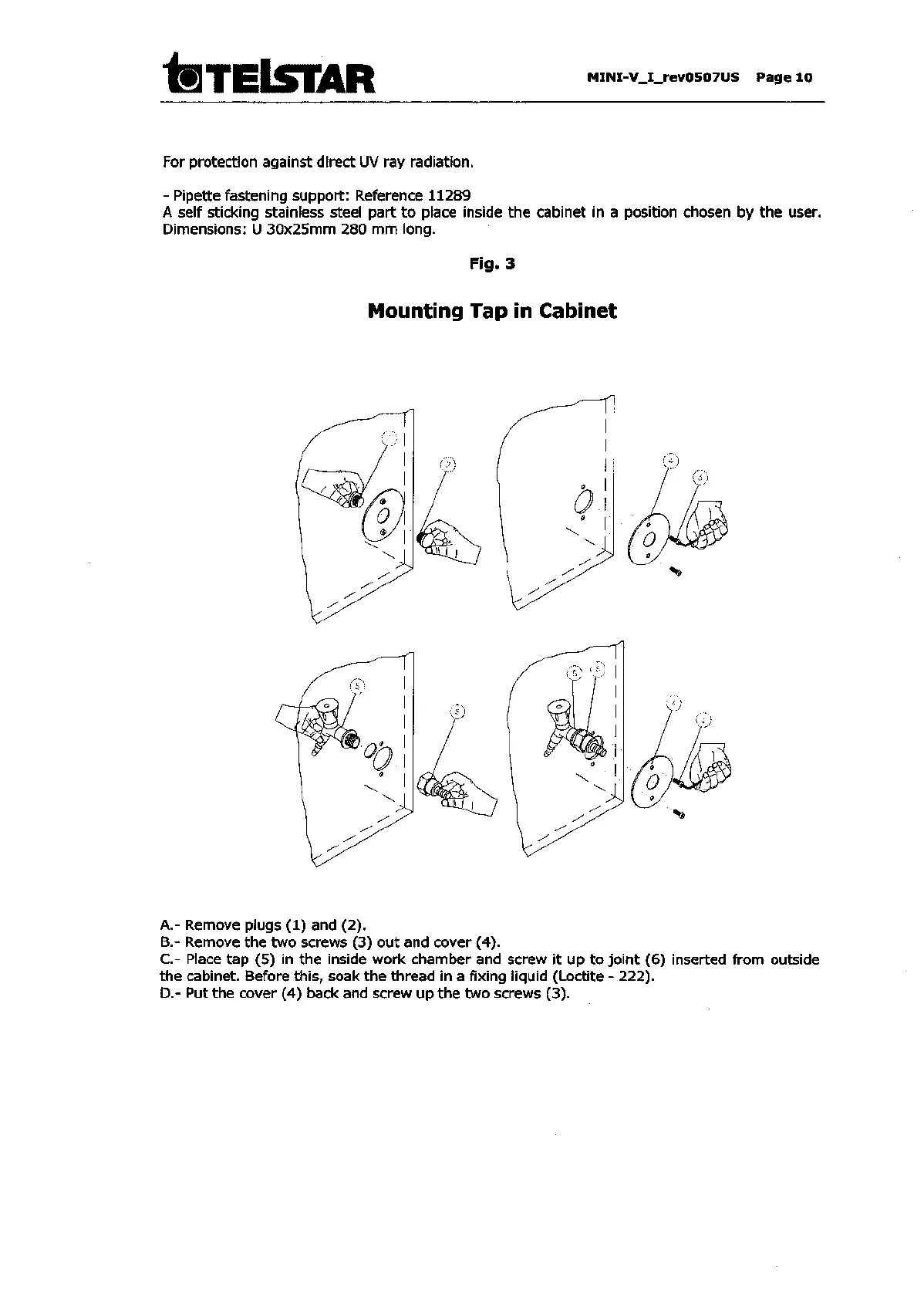

Fig.
3
Mounting Tap
in
Cabinet
A.- Remove plugs
(1)
and
(2).
B.- Remove the two screws
(3)
out and cover (4).
C- Place tap
(5) in the
inside work chamber and screw
it up to
joint
(6)
inserted from outside
the cabinet. Before this, soak the thread
in a
fixing liquid (Loctite
-
222).
D.- Put the cover (4) back and screw up the two screws (3).
