41

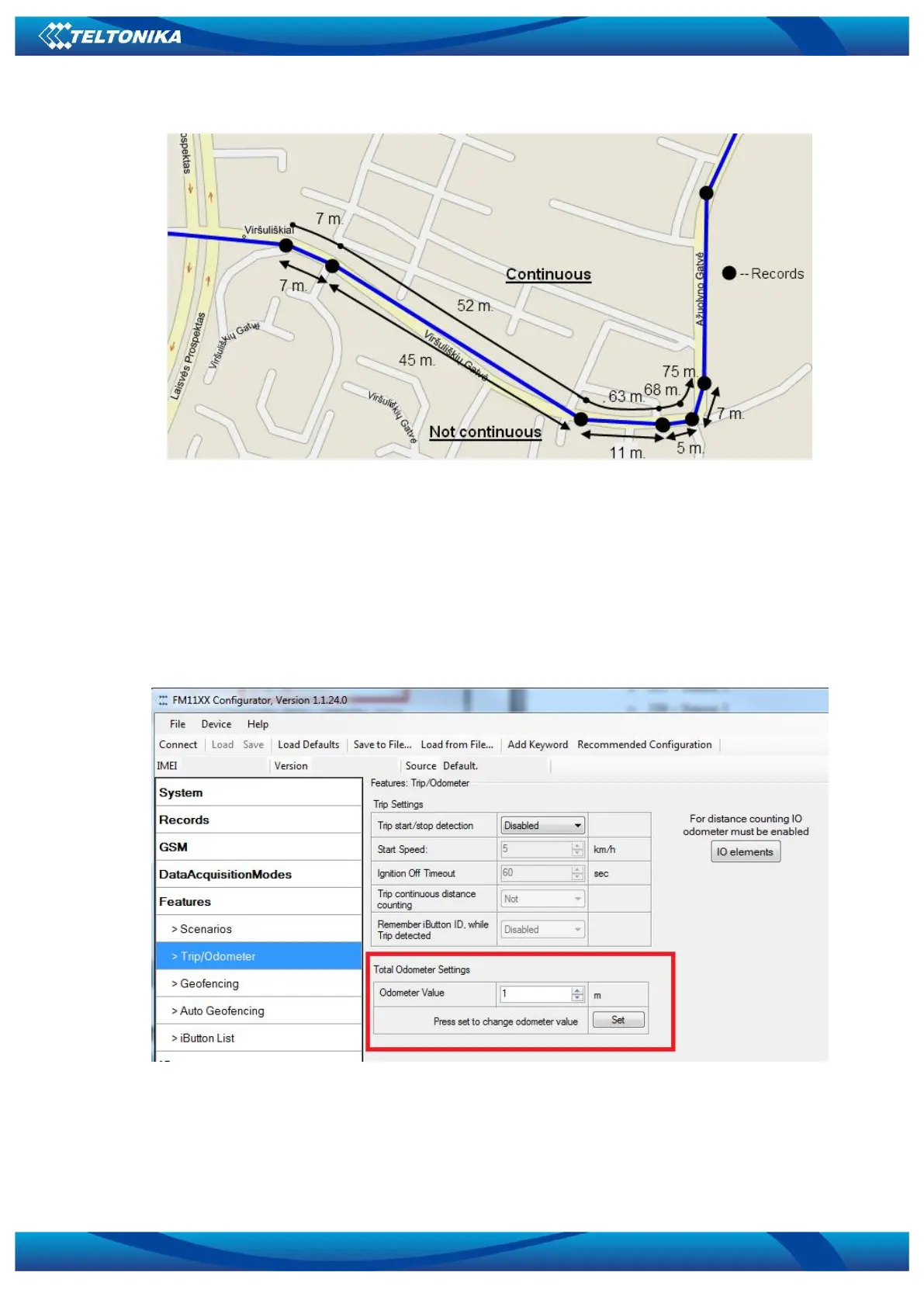

Figure 34 Trip configuration
Figure 35 Trip continuous distance counting parameter example
Continuous odometer. Continuous odometer calculates the distance if Total Distance I/O
element is enabled. Odometer Value is constantly saved to flash memory every 30 seconds, but
counted every second. After power is turned off, odometer value saved in flash does not reset.
Start odometer value with can be set using configurator („set“ button) or SMS/GPRS
(setparam/getparam) commands. This parameter can not be configured via TCP config. If this
value is not set, FMA110 starts counting from 0. Continuous odometer works irrespective of the
Trip functionality.
Figure 36 Continuous odometer setting in configurator.
Remember iButton functionality. If Remember iButton ID while trip detected and Trip
parameters are enabled, ignition is on and iButton is attached, then FMA110 remembers iButton
ID. iButton ID is saved and sent to server with every record. If new iButton is attached during the
To Next Page
