Pinout
Table 1 MTB100 pinout
PIN NUMBER PIN NAME DESCRIPTION
1 VCC (6-30) V DC (+) Power supply (6-30) V DC (+)
2 GND (-) Ground pin
3 DIN 1
Digital input, channel 1. DEDICATED
FOR IGNITION INPUT
4 AIN 1
Analog input, channel 1. Input range: 0-
30 V DC
5 DOUT 1
Digital output, channel 1. Open
collector output. Max. 0,5 A DC

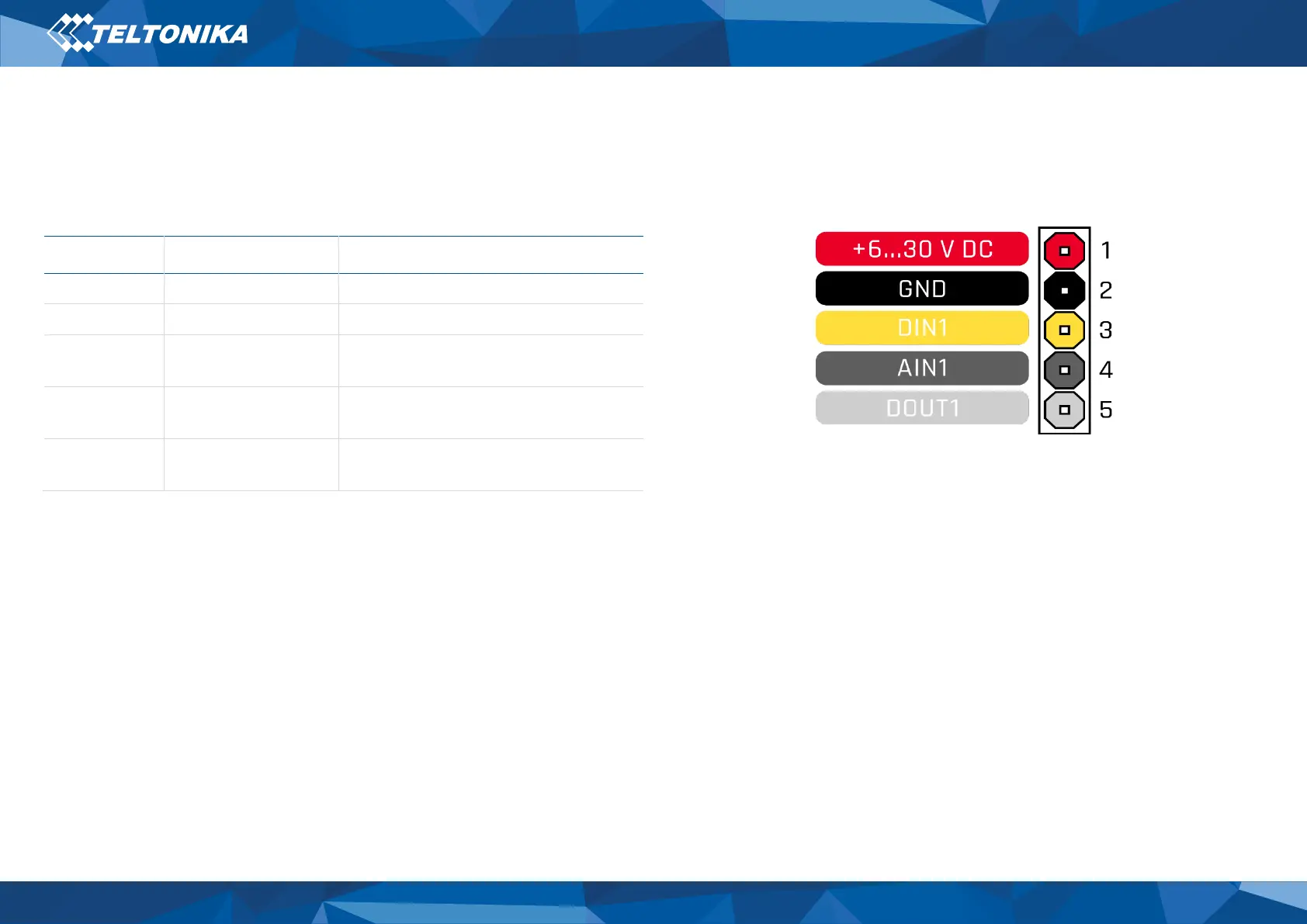

Figure 2 MTB100 pinout
