TEMPMASTER
58
FORM TPM3-EG1 (518)

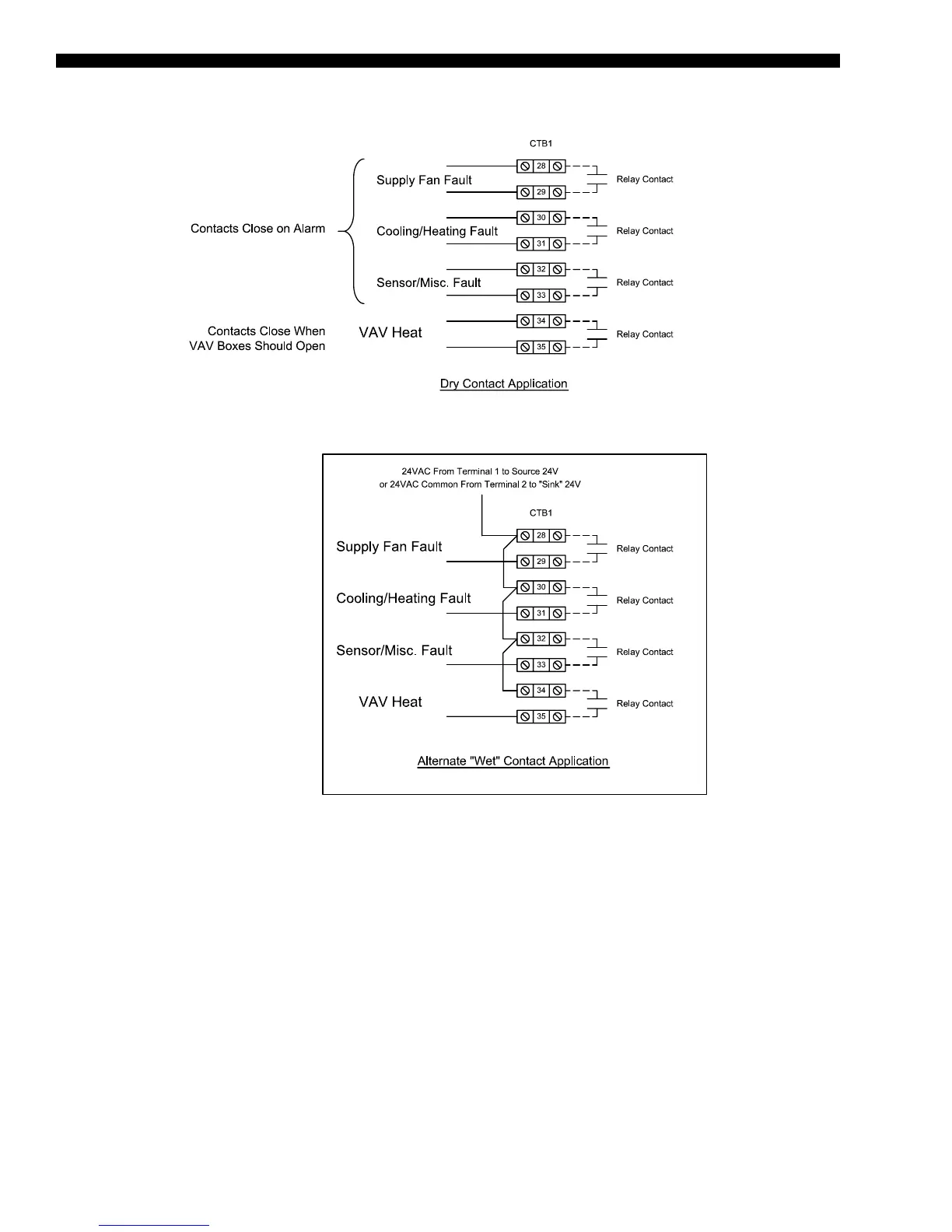

FIGURE 9 - FIELD CONTROL WIRING - OUTPUTS
Field Control Wiring (Cont'd)
LD08186
Wiring Notes:
1. Wiring shown indicates typical wiring. Refer to the IOM manual (Form TPM3-NOM1) for more detailed wiring methods and options
2. All wiring is Class 2, low voltage.
3. Maximum power available from the 24VAC terminal is 40VA.
4. Use shielded wire where shown.
5. Relay contacts suitable for pilot duty to 1A from 24VAC to 120VAC.
