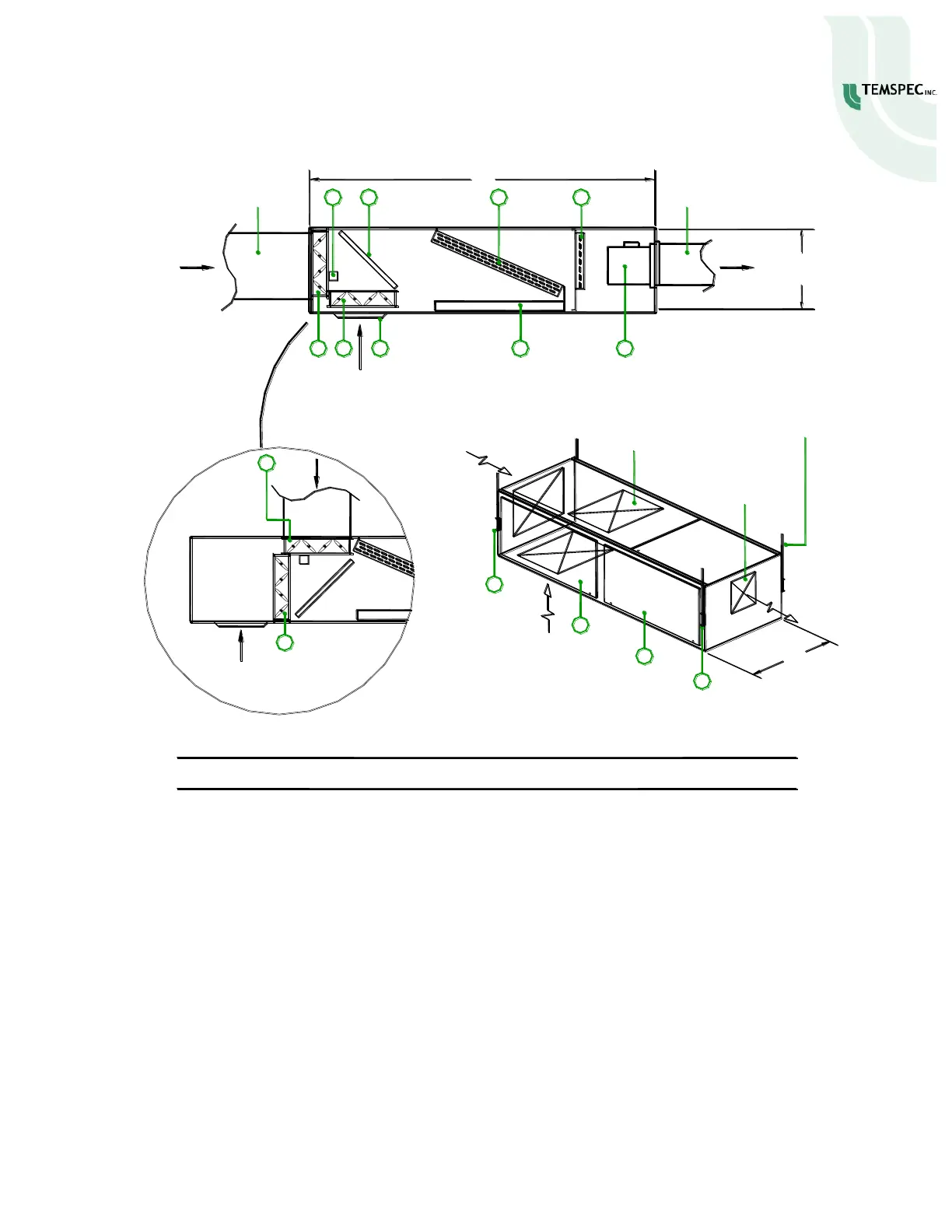

SIDE SECTION
O.A.
O.A. Outdoor Air
93"
Duct By
Others
OPTIONAL TOP O.A.
INTAKE DETAIL
1. Outdoor air damper.
2. Spring return mixed air damper actuator.
3. Return air damper.
4. Filters.
5. Heavy duty return air grille or duct collar.
6. Split DX or hot water/chilled water coil
(2 pipe or 4 pipe).
7. Drain pan. Drain pan is removable when
option for bottom access panels is selected.
R.A.
S.A. Supply Air
3
Duct By
Others
O.A.
31
1
O.A.
5
R.A.
42
10" x 12"
Supply Air
Opening
ISOMETRIC VIEW
(shown with left side access panel)
8. Hot water coil for spilt system DX or heating
only units. Optional steam and electric
heater also available.
9. Supply air fan.
10. Mounting brackets (4 per unit).
11. Left or Right side hinged filter access panel.
Bottom hinged access panel also available.
12. Left or Right side hinged coil access panel.
Bottom hinged access panel also available.
R.A.
10
11
R.A. Return Air
12
10
28"
Duct By
Others
7 9
Optional
O.A. intake
location
6 8
Suspension
Rods By
Others
S.A.
21.5"
