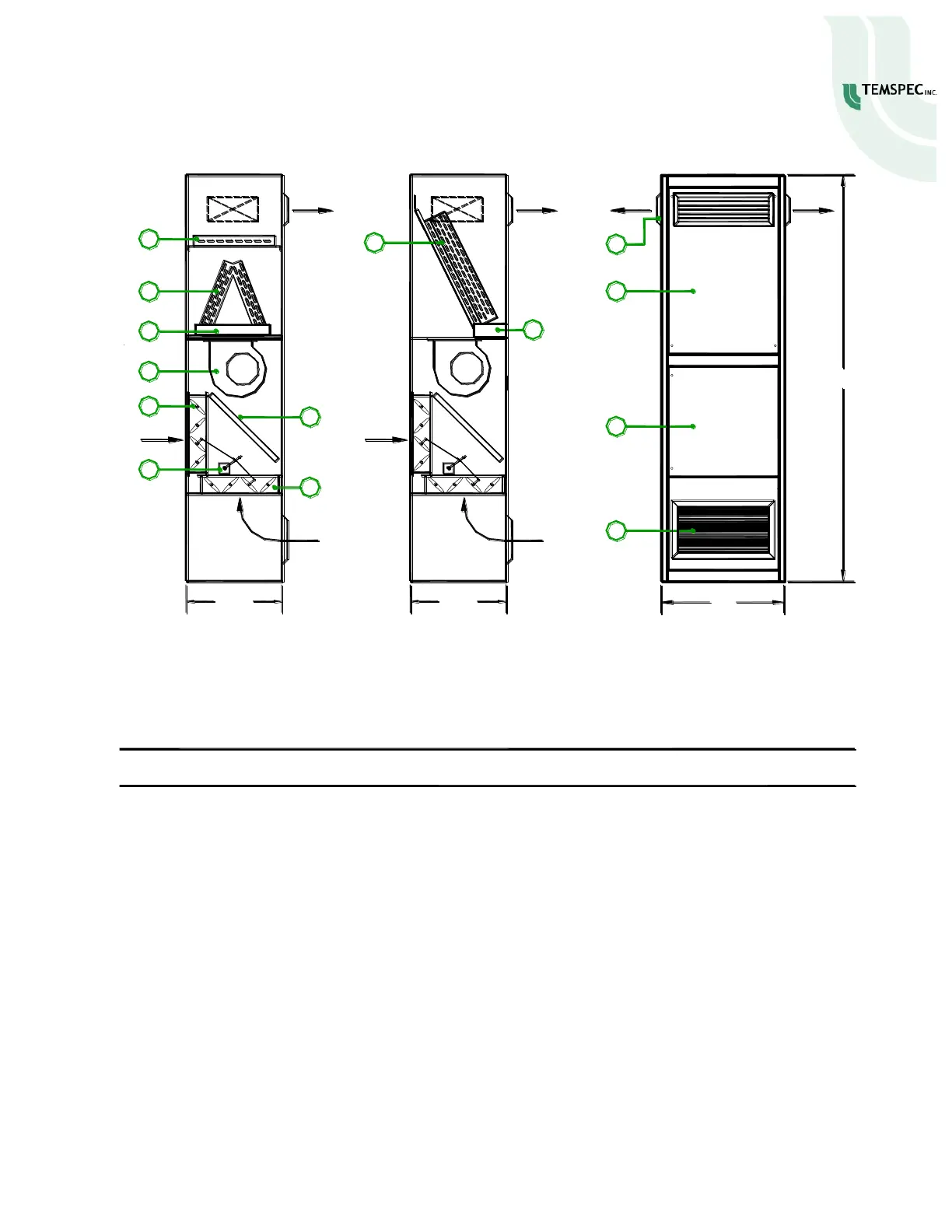

VUF 1200
O.A. Outdoor Air
SIDE SECTION
(Hot Water /
Chilled Water)
S.A. Supply Air
1. Hot water coil. Optional electric or steam
coil available.
2. DX cooling coil.
3. Drain pan.
4. Supply air fan.
5. Outdoor air damper.
6. Spring return mixed air damper actuator.
7. Filters.
SIDE SECTION
(Split System DX)
21.5"
R.A.
21.5"
3
5
6
O.A.
4
1
2
O.A.
7
8
S.A.
9
HW
CW
R.A. Return Air
8. Return air damper.
9. 2 pipe or 4 pipe (hot water coil can be
in the reheat position).
10. Double deflection supply air grille.
11. Coil access panel.
12. Hinged filter access panel.
13. Heavy duty return air grille.
FRONT ELEVATION
13
R.A.
28"
10
11
12
3
S.A. S.A.
93"
S.A.
NOTE: The component arrangement shown above may vary slightly from that in the unit supplied.
