Standard Piping

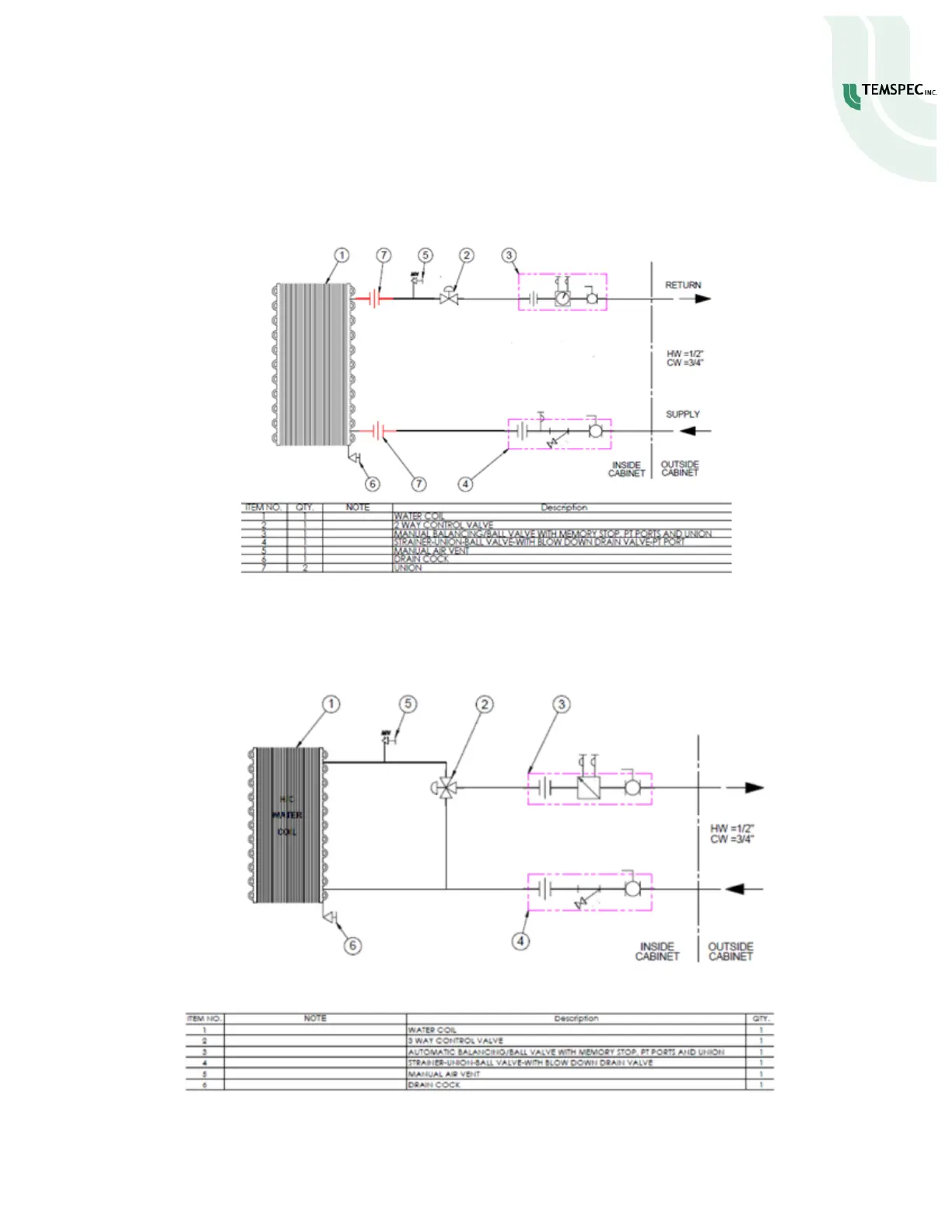

The following are typical hot water piping schematics for a unit ventilator. Please refer to the Job
Submittal for a more specific layout.
Hot Water / Chilled Water with 2-way Control
Note: The component arrangement shown above may vary slightly from that in the unit supplied
Hot Water / Chilled Water with 3-way Control
Note: The component arrangement shown above may vary slightly from that in the unit supplied
