Temspec VUD 1200 - Vgb 1600

Temspec Unit Ventilator IOM 2023-07-05
[14]
VGB 1600
O.A. Outdoor Air
11
10

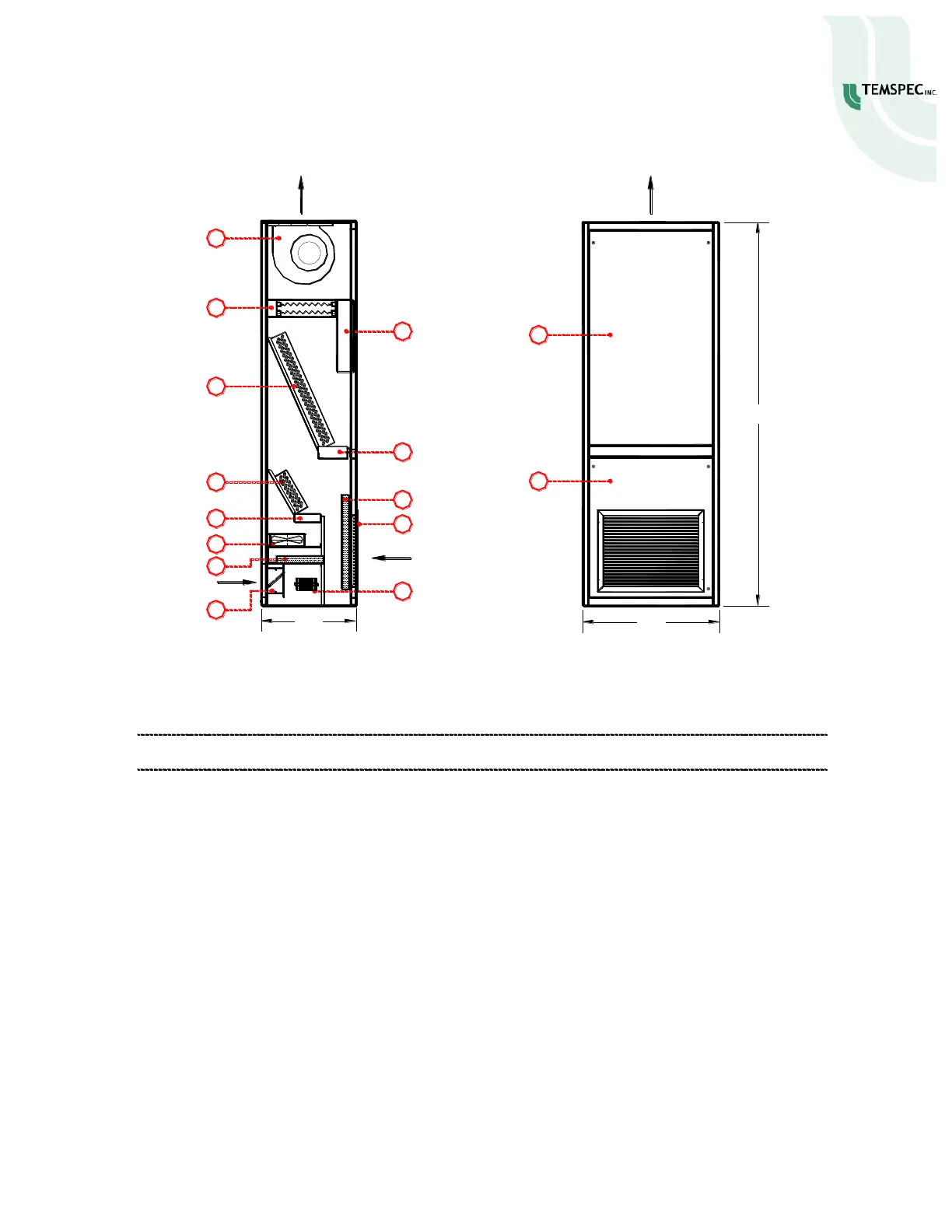

1. Supply air fan.
2. Optional electric coil.
3. Control / electrical enclosure.
4. Primary coil (DX or chilled water).
5. Drain pan.
6. Outdoor air coil (DX or chilled water).
7. Return air filter.
O.A.
9
5
23"
S.A. Supply Air
SIDE SECTION
12
R.A.
8
7
6
4
1
2
S.A.
3
5
8. Heavy duty return air grille.
9. Outdoor air fan.
10. Outdoor air filter.
11. Outdoor air damper.
12. Optional electric freeze protection.
13. Coil access panel.
14. Return air access panel.
FRONT ELEVATION
R.A. Return Air
33"
14
13
S.A.
93"
Note: The component arrangement shown above may vary slightly from that in the unit supplied
