Temspec VUD 1200 - Ver 1800

Temspec Unit Ventilator IOM 2023-07-05
[13]

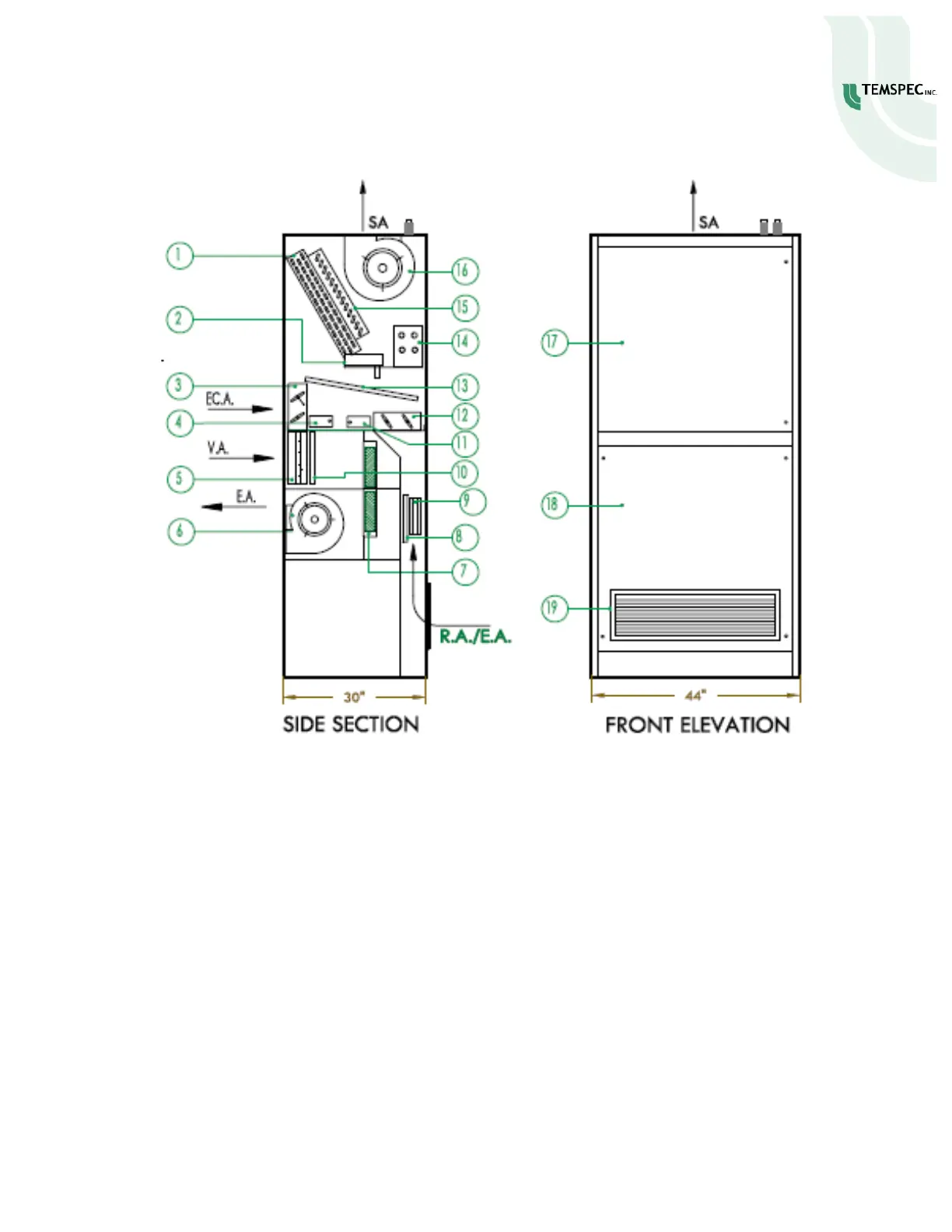

VER 1800
SA = Supply Air
VA = Ventilation Air
ECA = Economizer Air
RA = Return Air
EA = Exhaust Air
ITEM NO.
DESCRIPTION
ITEM NO.
DESCRIPTION
ITEM NO.
DESCRIPTION
1.
Evaporator Coil
8.
ERV Exhaust Filter
15.
Hot Water Coil
2.
Drain Pan
9.
Powered Exhaust Damper and Actuator
16.
Supply Air Fan
3.
100% Economizer OA Damper
10.
ERV O.A. Filter
17.
LH Hinged Access Panel
4.
Modulating damper actuator.
11.
RA Actuator
18.
Removable Access Panel
5.
ERV Damper with Actuator.
12.
RA Damper
19.
Heavy Duty RA Grille
6.
ERV Exhaust Fan
13.
Mixed Air Filters
7.
ERV Enthalpy Wheel
14.
Electrical Box/Controls Enclosure
NOTE: The component arrangement shown above may vary slightly from that in the unit supplied
