CW
O.A. Outdoor Air
1. Supply air fan.
2. Hot water coil. Optional electric or steam
coil available.
3. DX cooling coil.
4. Drain pan.
5. Outdoor air damper.
6. Spring return mixed air damper actuator.
7. Filters.

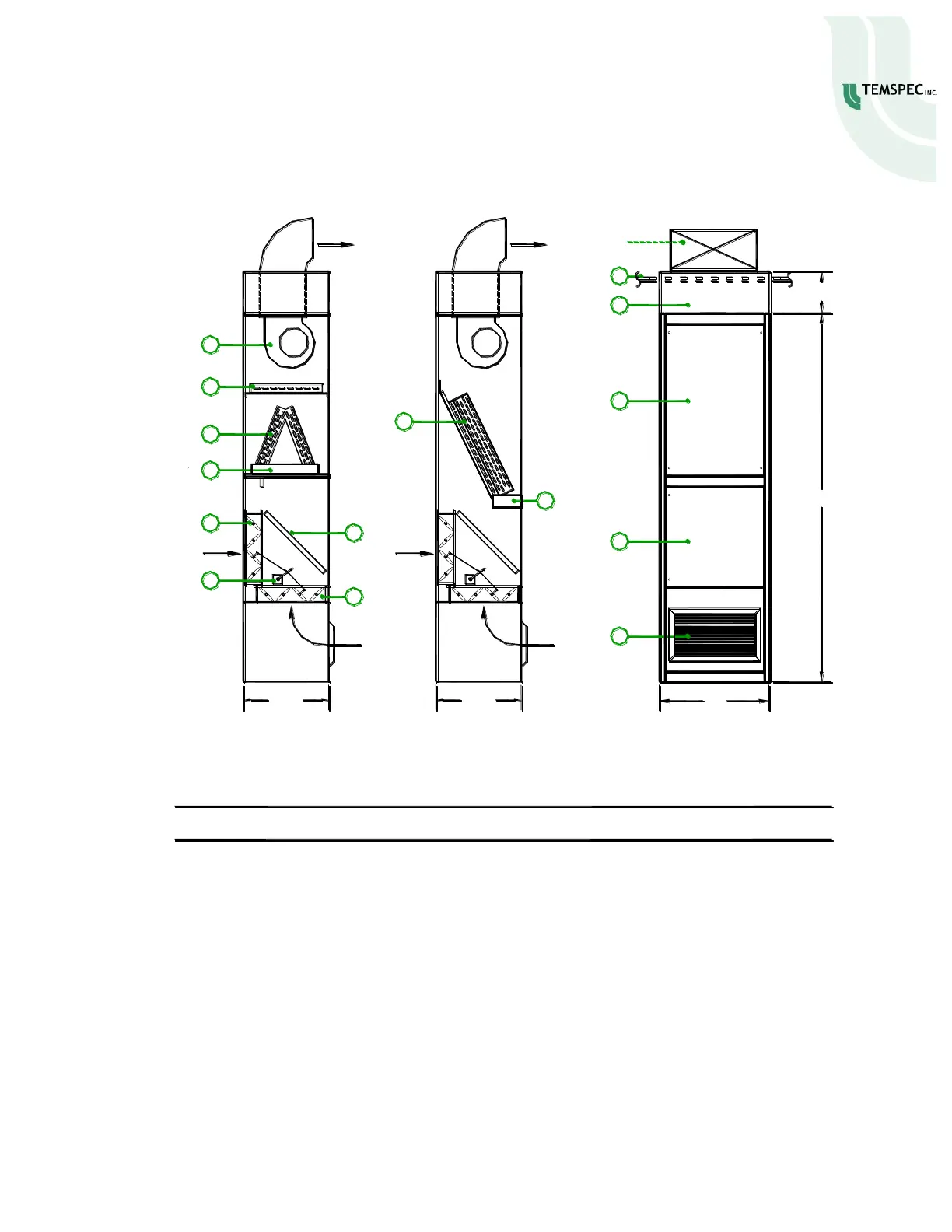

SIDE SECTION
(Hot Water /
Chilled Water)
SIDE SECTION
(Split System DX)
6
S.A. Supply Air
21.5"
R.A.
8
21.5"
O.A.
5
4
3
2
1
7
O.A.
9
HW
S.A.
8. Return air damper.
9. 2 pipe or 4 pipe (hot water coil can be
in the reheat position).
10. Ceiling tile.
11. Top extension (optional).
12. Coil access panel.
13. Hinged filter access panel.
14. Heavy duty return air grille.
FRONT ELEVATION
14
R.A.
R.A. Return Air
28"
Duct By
Others
10
11
12
13
4
S.A.
93"
H
