Temspec VUD 1200 - Page 22

Temspec Unit Ventilator IOM 2023-07-05
[21]
DX Split System

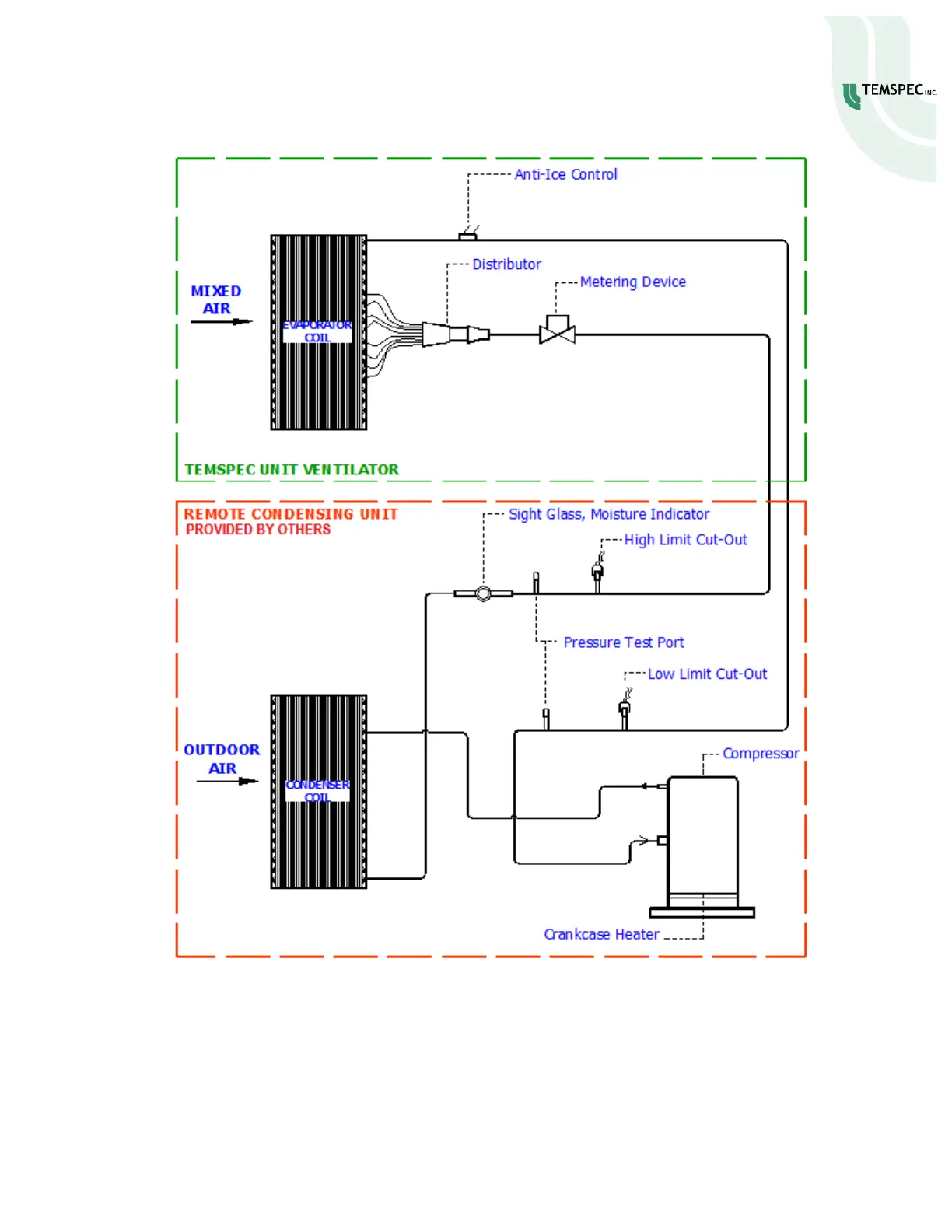

The following is a typical split system refrigeration circuit.
Note: The component arrangement shown above may vary slightly from that in the unit supplied
