Tenda A9 User Manual

28
Web UI Features

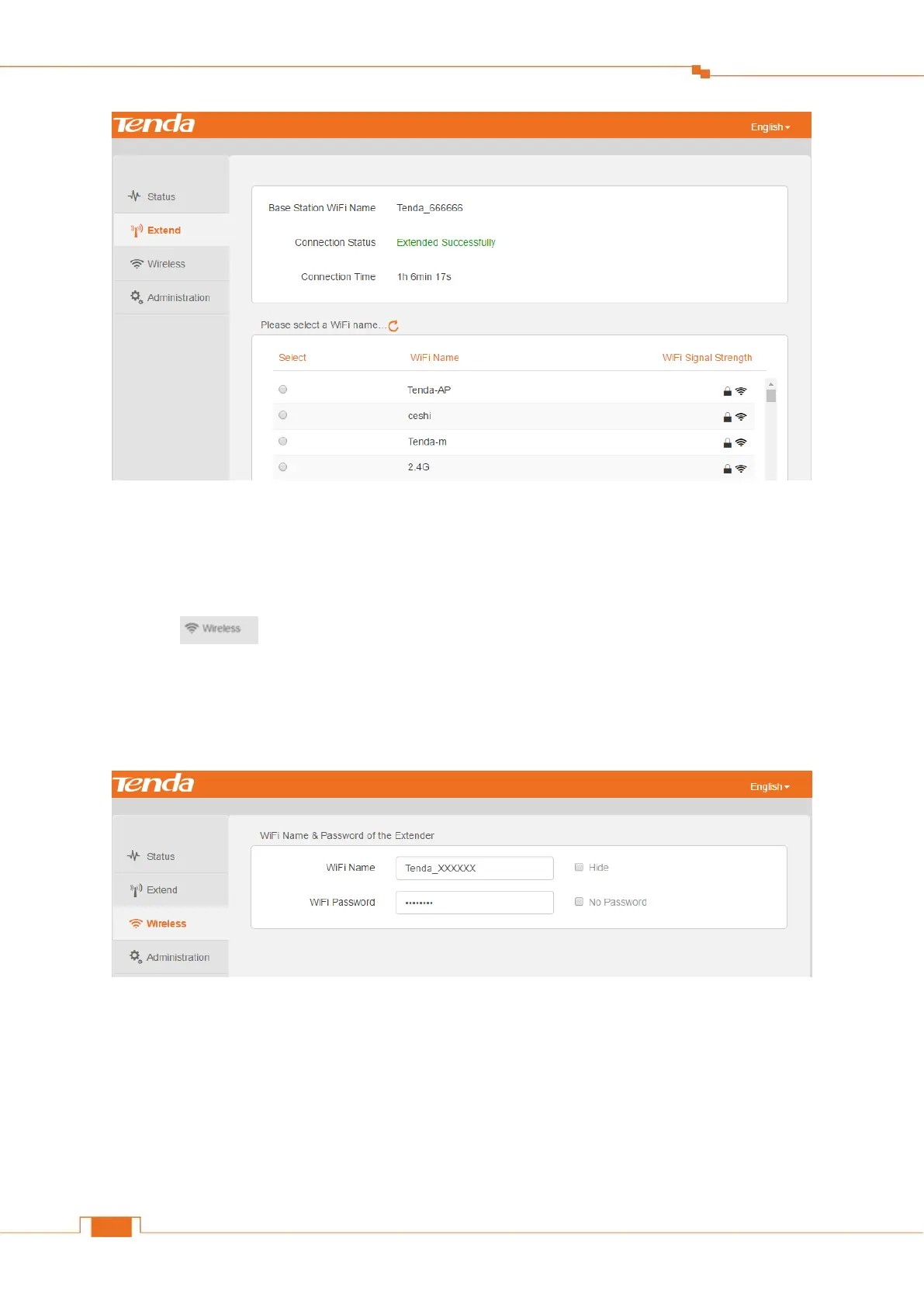

Change the Extender’s WiFi Settings
By default, the WiFi name and password of the extender are changed to the same as that of
the WiFi router (the base station). If you want to customize them, please do as follows.
① Click on the left menu to enter Wireless configuration page.
② WiFi name: Type a WiFi name for your extender.
③ WiFi password: Type a WiFi password for your extender.
④ Click OK to save your settings.
 Hide
If the Hide option is checked, no wireless clients can search the WiFi name of the extender.
You need to know the WiFi name in advance and enter the WiFi name on each wireless client
manually.

Tenda A9 Specifications

General

Type	Network transmitter & receiver
Ethernet LAN data rates	- Mbit/s
Maximum transfer distance	- m
Antenna type	External
Antennas quantity	2
Antenna gain level (max)	3 dBi
Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA-PSK, WPA-TKIP, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Product color	Grey, White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	47.7 mm
Width	56 mm
Height	111 mm
