Tenda A9 User Manual

4
Get to Know Your Extender

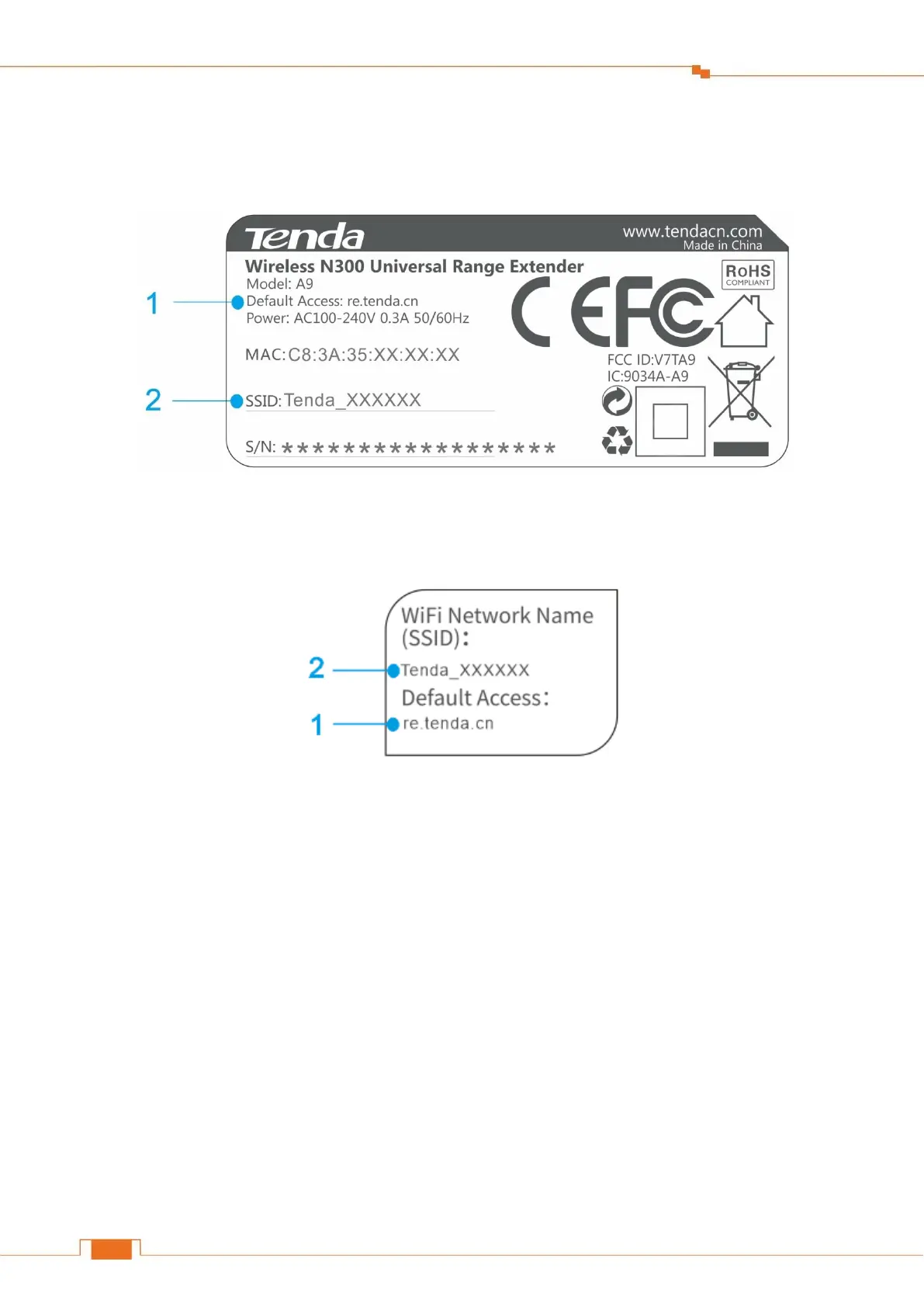

Product Label
The label on the rear panel:
The label on the side panel:
1 Default Access: re.tenda.cn
It’s the default login domain name of the extender. After you connect to the extender
wirelessly, you can log in to the extender’s web UI with re.tenda.cn.
2 SSID: Tenda_XXXXXX
It’s the default WiFi name of the extender. You can connect to this SSID to access the internet
or to configure the extender.

Tenda A9 Specifications

General

Type	Network transmitter & receiver
Ethernet LAN data rates	- Mbit/s
Maximum transfer distance	- m
Antenna type	External
Antennas quantity	2
Antenna gain level (max)	3 dBi
Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA-PSK, WPA-TKIP, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Product color	Grey, White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	47.7 mm
Width	56 mm
Height	111 mm
