Tenda A9 User Manual

30
Web UI Features

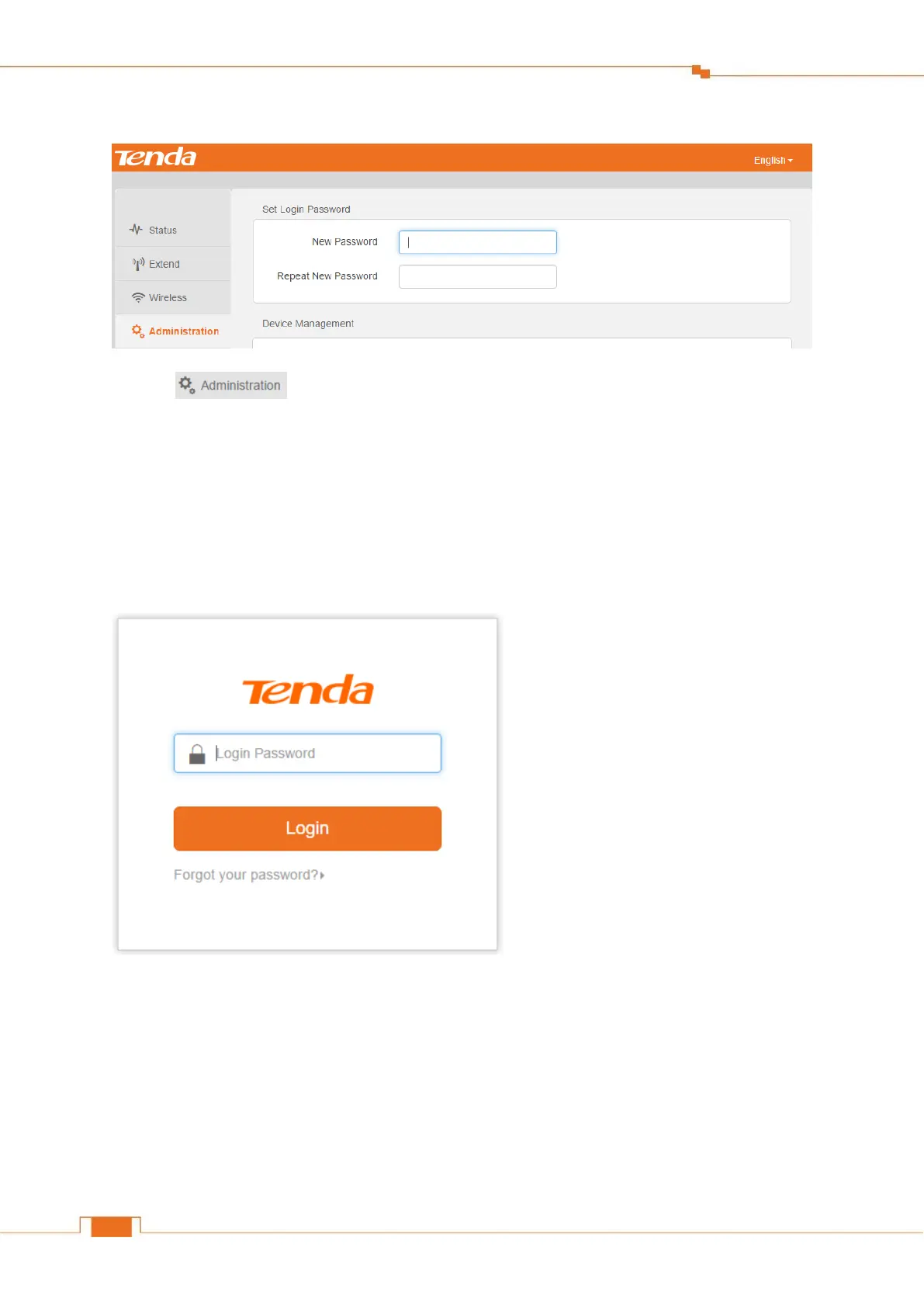

Set up a login password
① Click to enter Administration configuration page.
② Type a login password in New Password field.
③ Re-type the login password in Repeat New Password field.
④ Click OK on the bottom of the page to save your settings.
After the settings take effect, a login password is required when you log in to the extender’s
web UI.
Reboot the extender
Rebooting the extender will activate any modified settings on the extender. When the
parameters you set cannot take effect or the extender cannot be used normally, please try
rebooting your extender to solve these problems.

Tenda A9 Specifications

General

Type	Network transmitter & receiver
Ethernet LAN data rates	- Mbit/s
Maximum transfer distance	- m
Antenna type	External
Antennas quantity	2
Antenna gain level (max)	3 dBi
Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA-PSK, WPA-TKIP, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Product color	Grey, White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	47.7 mm
Width	56 mm
Height	111 mm
