Tenda AP Series User Manual

Option A Connect to the included PoE injector
Power the AP CAT5e or better Ethernet cables are recommended.
❺
❻

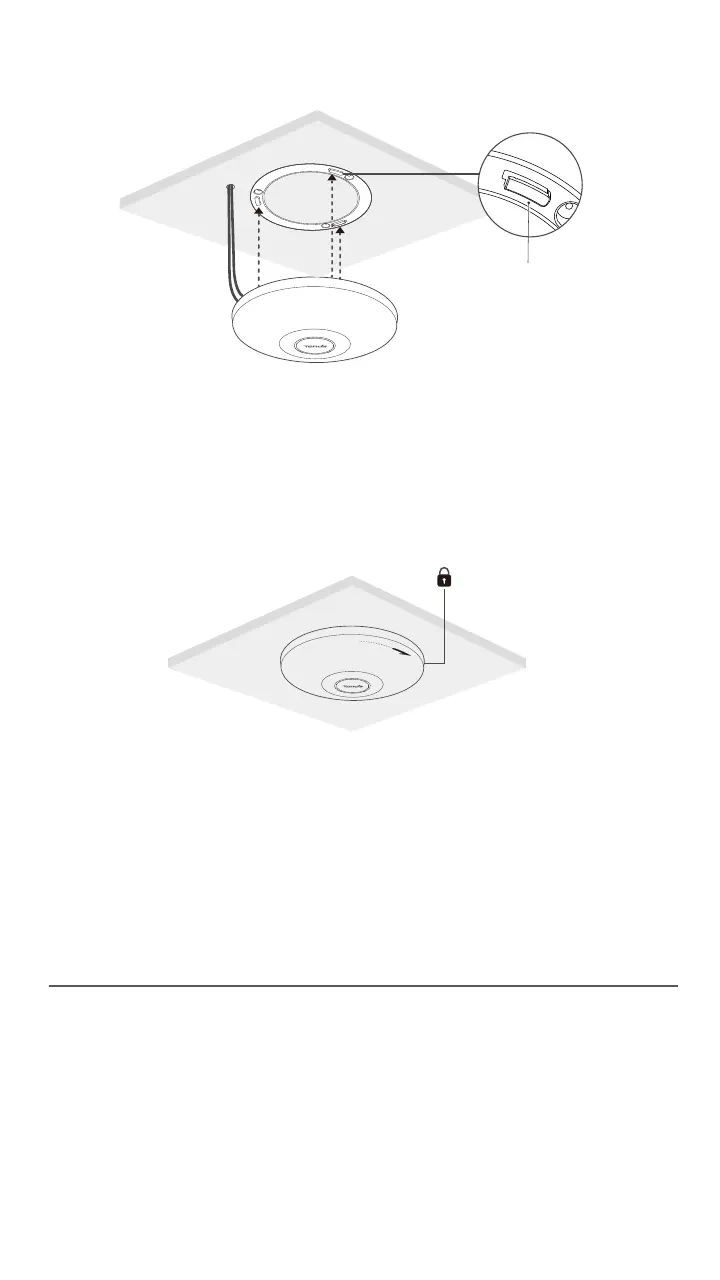

Ensure that the AP is firmly seated onto the bracket. Turn the
AP clockwise until it is fixed securely onto the bracket.
1. Use an Ethernet cable to connect the LAN/PoE port of the AP
to the PoE port of the PoE injector.
2. Use the included power adapter to connect the PoE injector to
a power source.
Align the slots of the AP with the hooks of the bracket.
- 6 -
Hook

Tenda AP Series Specifications

General

Model	AP Series
Category	Wireless Access Point
Frequency Range	2.4GHz/5GHz
Wireless Standards	IEEE 802.11a/b/g/n/ac
Wireless Speed	Up to 1200Mbps
Operating Mode	Repeater
Security	WPA/WPA2-PSK
Antenna	External antennas
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
