Tenda C50 - Cube IP Camera; PTZ IP Camera

Super easy IP Camera
12

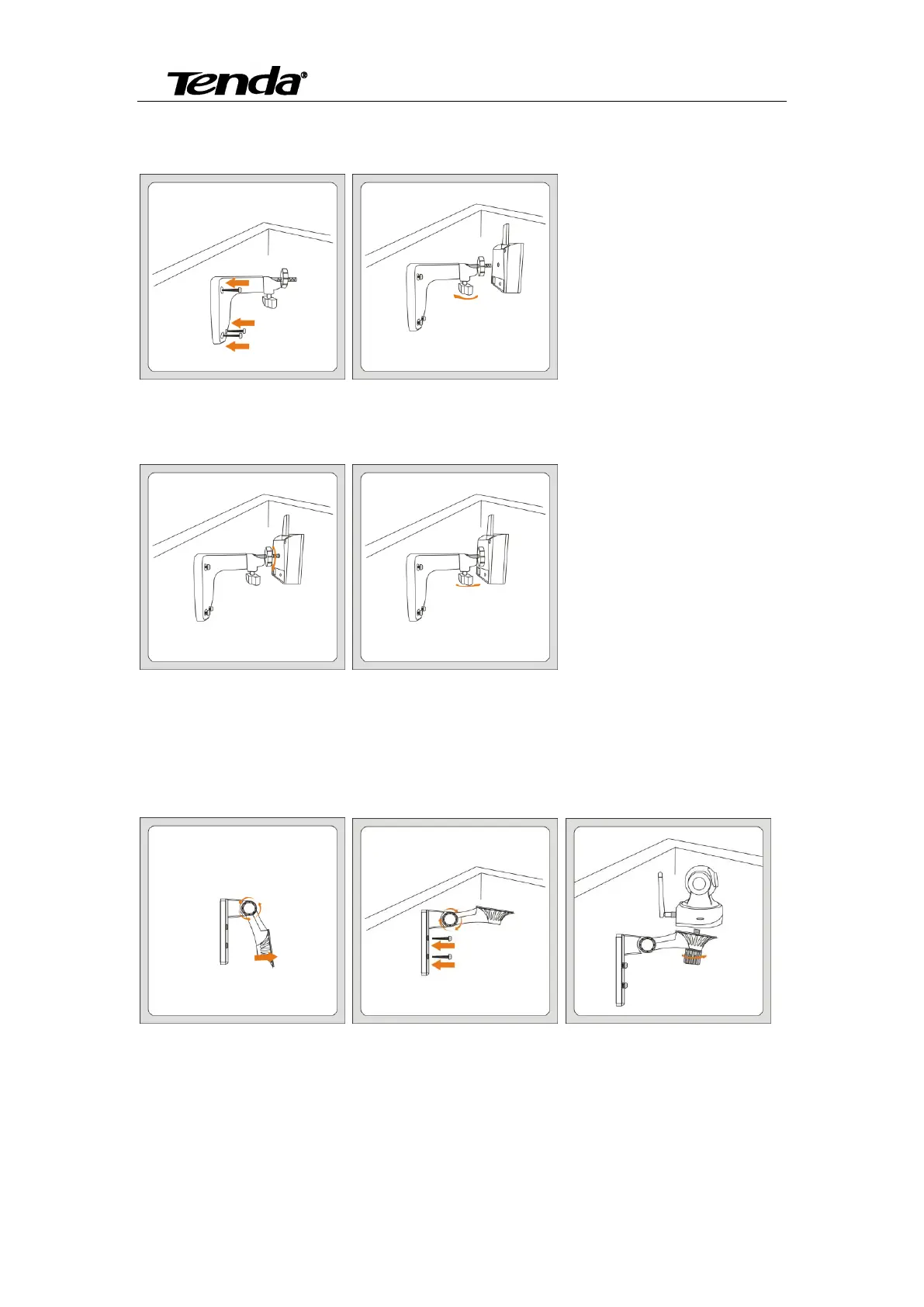

2.1.2.1 Cube IP Camera
Figure 1:Take out the bracket,then fix the bracket to the wall using screws.
Figure 2:Turn the screw on the bracket counter-clock wise to loosen it.
Figure 3:Camera connect to bracket, turn the collar on the bracket clockwise to tighten it.
Figure 4:Moving the camera to the position you want, tighten the screw by turning it clock wise.
2.1.2.2 PTZ IP Camera
Figure 1:Turn the collar on the bracket to loosen it then move the camera to the position you want .
Figure 2: Turn the collar on the bracket to tighten it,then fix the bracket to the wall using screws.
Figure 3:Camera connect to bracket, turn the collar on the bracket clockwise to tighten it.
①
②
④
③
③
②
①
