Tenda C50 User Manual

Super easy IP Camera
38
5.2.4 Network setting
5.2.4. 1 LAN settings

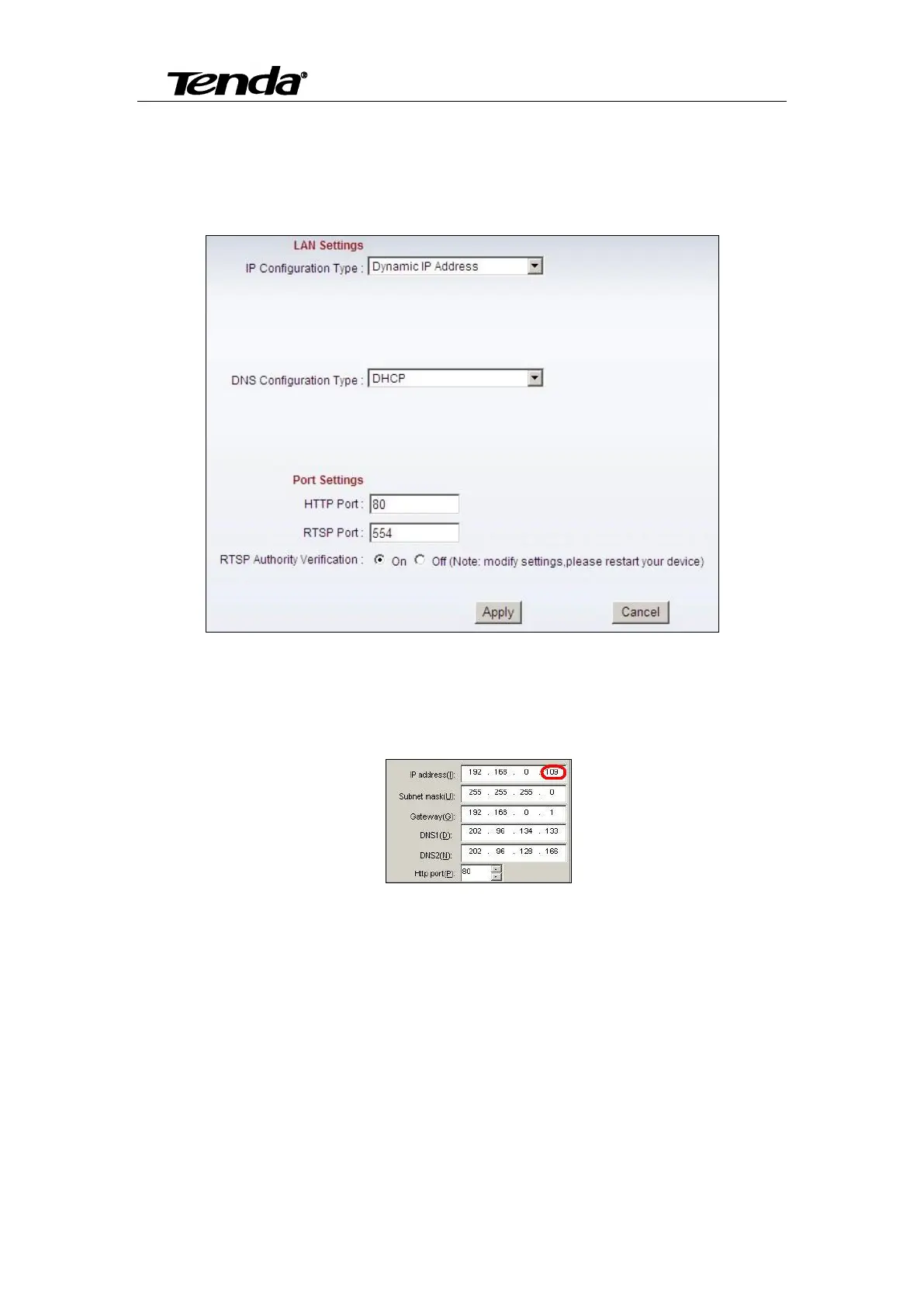

There is two ways to assign IP address, one is DHCP, one is set manually; the default one is
DHCP. If you want to change the IP address of the camera, choose “set IP Manually”, and modify
the information as the below picture:
Just change the last part of IP address, then click “Update” button to save the setting.
The default HTTP port is 80, if you do not modify the port, you can directly enter the camera
IP in the web address field; if you change the port, you need to add "：" and port number benind
the IP address. For example: If you modify the port is 8081, the camera IP address is 192.168.0.10.
You must enter 192.168.0.10:8081 to access camera.
The cameras support RTSP protocol, if select “on” of “RTSP authority verification”, you
need to enter user name and password when invoke video by RTSP protocol.
Note: When you modify the parameters, you need to click Apply to save your settings.

Tenda C50 Specifications

General

Maximum resolution	1280 x 720 pixels
Supported video modes	720p
Minimum illumination	- lx
Sensor type	CMOS
Optical sensor size	1/4 \
Optical zoom	- x
Focal length range	3.6 - 3.6 mm
Security algorithms	WEP, WPA, WPA-AES, WPA2-PSK
Video motion detection	Yes
Built-in HDD	No
Form factor	Dome
Product color	White
Type	IP security camera
Certification	CE, FCC
Placement supported	-
Connectivity technology	Wired & Wireless
Cables included	LAN (RJ-45)
Bundled software	Setup Wizard, P2P View client software (support Apple iOS, Android, Windows), IP / DDNS View client software (support Android), PC centralized control and management platform
Browser supported	IE6 / IE7 / IE8 / IE9, Firefox, Safari, Goolge Chrome
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Audio system	2-way
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Wi-Fi data rate (max)	150 Mbit/s
Supported network protocols	TCP/IP, DHCP, ARP, ICMP, FTP, SMTP DDNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP/IP P2P，ONVIF
Minimum RAM	256 MB
Minimum processor	2.0 Ghz
Minimum graphics card memory	64 MB
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 50 °C
Storage relative humidity (H-H)	3 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	102 mm
Width	109 mm
Height	127 mm
