Tenda D301-V2 User Manual

Wireless Modem Router
28
When the IPoE connection is successful, you can access the Internet.
Bridging
If you wish to initiate a dialup directly from your PC for Internet access or enjoy the entire Internet connection (instead
of sharing it with others), you can use the Bridging DSL link type and create a dialup program on your PC.

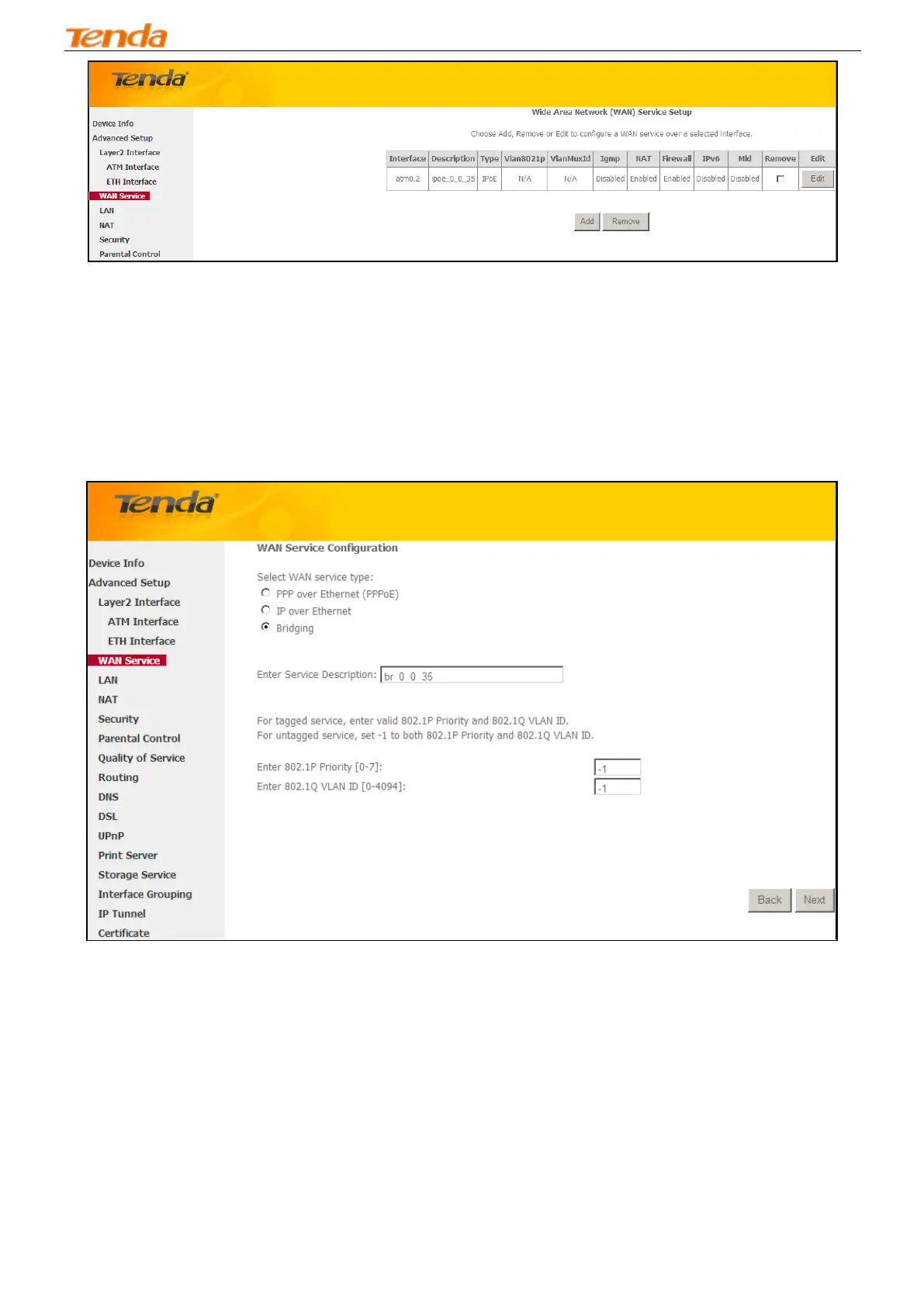

If you have selected the EoA from the ATM Interface screen in Layer2 Interface, you will see the screen below when
you click the WAN Service tab, select the configured interface and click Next.
The Enter Service Description field is optional. We recommend that you keep it unchanged from default and click
Next.

Tenda D301-V2 Specifications

General

Wireless Standards	IEEE 802.11b/g/n
Frequency	2.4 GHz
Wireless Speed	300Mbps
WAN Ports	1 x 10/100 Mbps
LAN Ports	3 x 10/100Mbps
Antenna	2 x 5dBi external antennas
WAN Connection Type	PPPoE, Dynamic IP, Static IP
Security	WPA/WPA2, WEP
Button	Reset/WPS Button
DHCP Server	Supported
Operating Temperature	0°C ~ 40°C
Storage Temperature	-40°C ~ 70°C
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Weight	210g
