Tenda D301-V2 User Manual

Wireless Modem Router
29

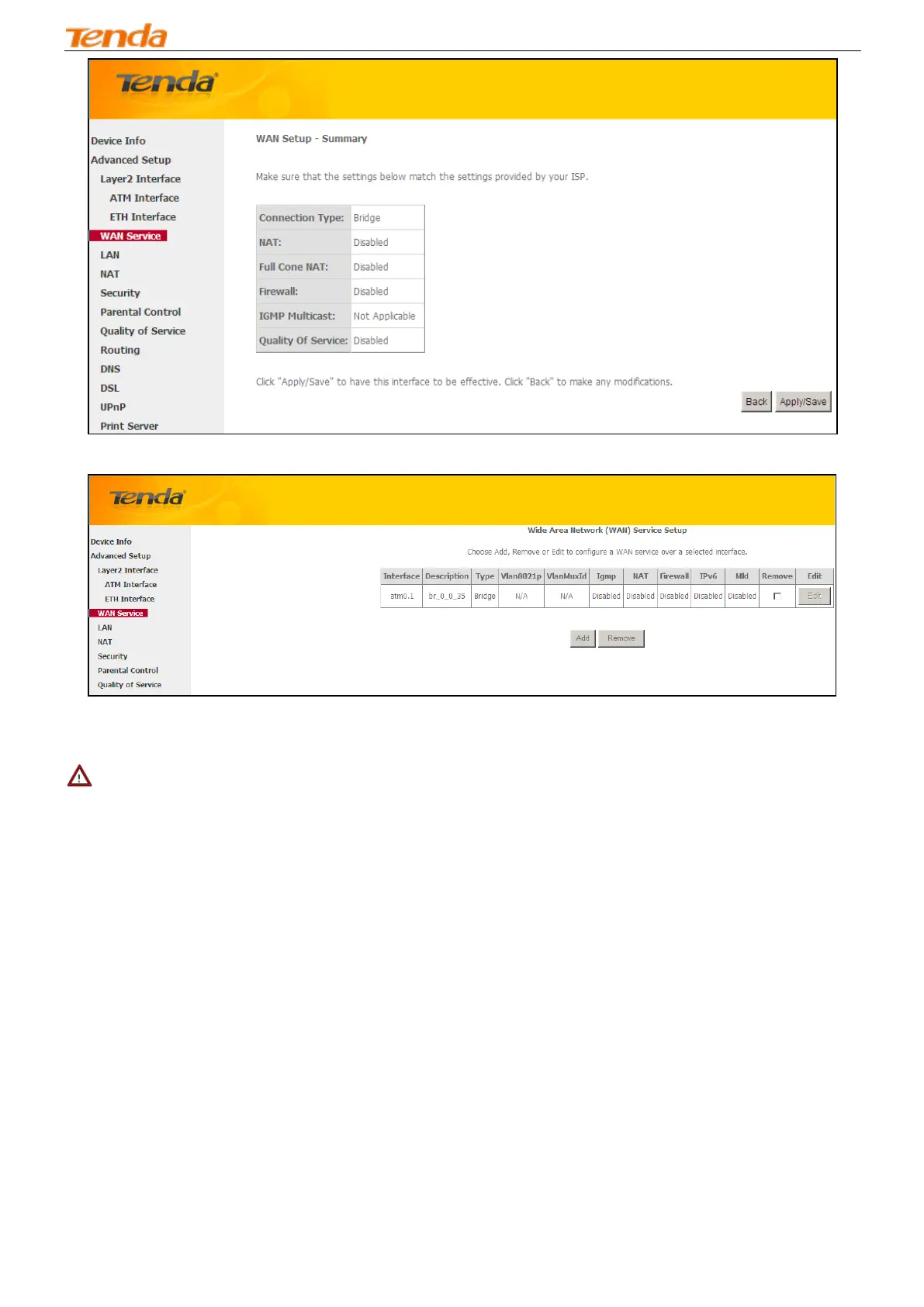

Here you can view your configurations. Click Apply/Save to save your settings if everything is correctly set.
When the bridging connection is successful, you can access the Internet.
_________________________________________________________________________________________________
Note:
To configure multiple WAN connections, simply configure multiple ATM interfaces and then follow the instructions
above.
_________________________________________________________________________________________________
PPPoA
If you have selected the PPPoA from the ATM Interface screen in Layer2 Interface, you will see the screen below
when you click the WAN Service tab, select the configured interface and click Next.

Tenda D301-V2 Specifications

General

Wireless Standards	IEEE 802.11b/g/n
Frequency	2.4 GHz
Wireless Speed	300Mbps
WAN Ports	1 x 10/100 Mbps
LAN Ports	3 x 10/100Mbps
Antenna	2 x 5dBi external antennas
WAN Connection Type	PPPoE, Dynamic IP, Static IP
Security	WPA/WPA2, WEP
Button	Reset/WPS Button
DHCP Server	Supported
Operating Temperature	0°C ~ 40°C
Storage Temperature	-40°C ~ 70°C
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Weight	210g
