C3
2. Installation
2.1.Hardware installation
2.1.1.Table install
2.1.1.1.Cube IP Camera

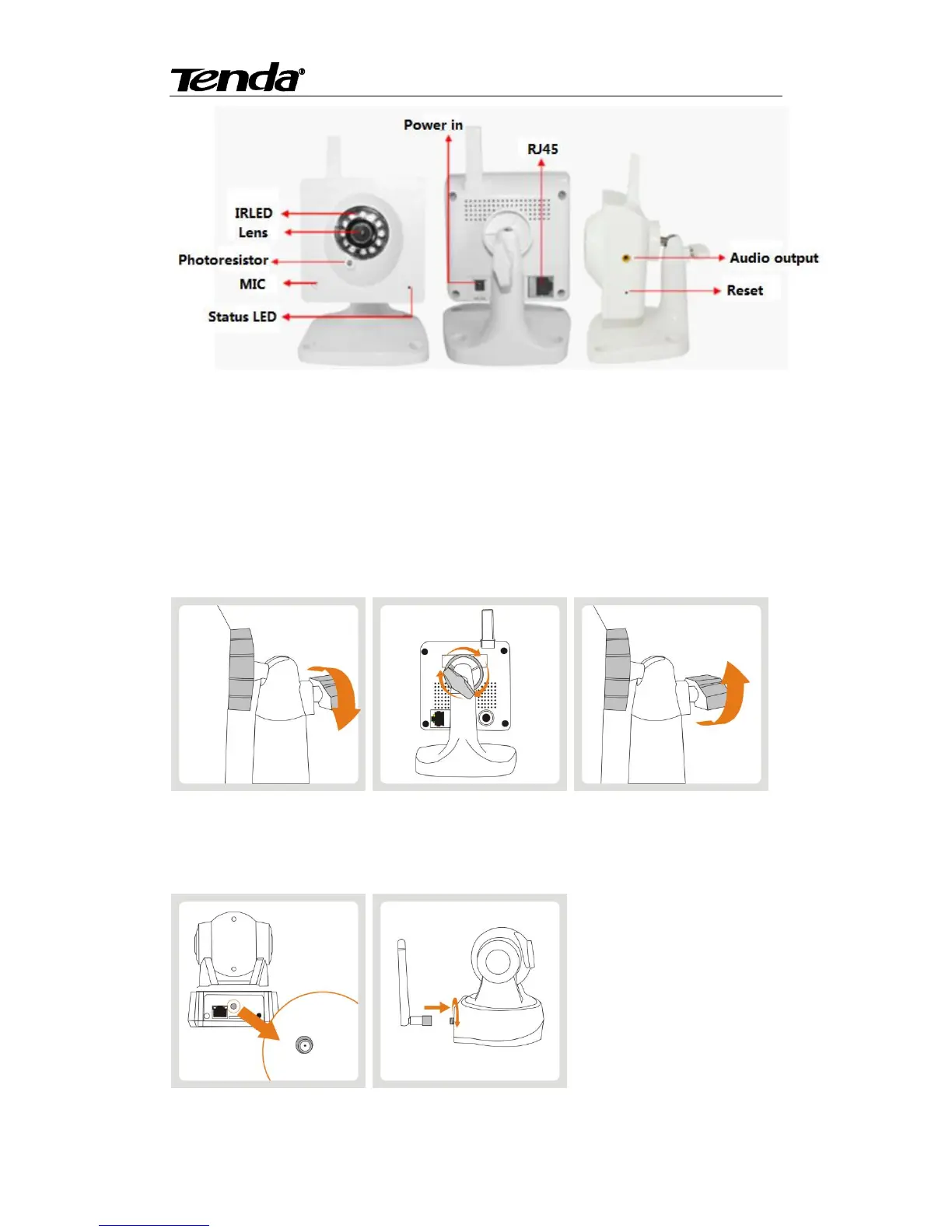

Figure1.Take out the bracket ,turn the screw on the camera base counter-clock wise to loosen it.
Figure2.Camera connect to camera base, turn the collar on the camera base clockwise to tighten it.
Figure3.Moving the camera to the position you want, tighten the screw by turning it clock wise.
2.1.1.2.PTZ IP Camera
Figure4.Take out the camera and antenna
③
①
②
④
⑤
