Tenda N301 User Manual

54

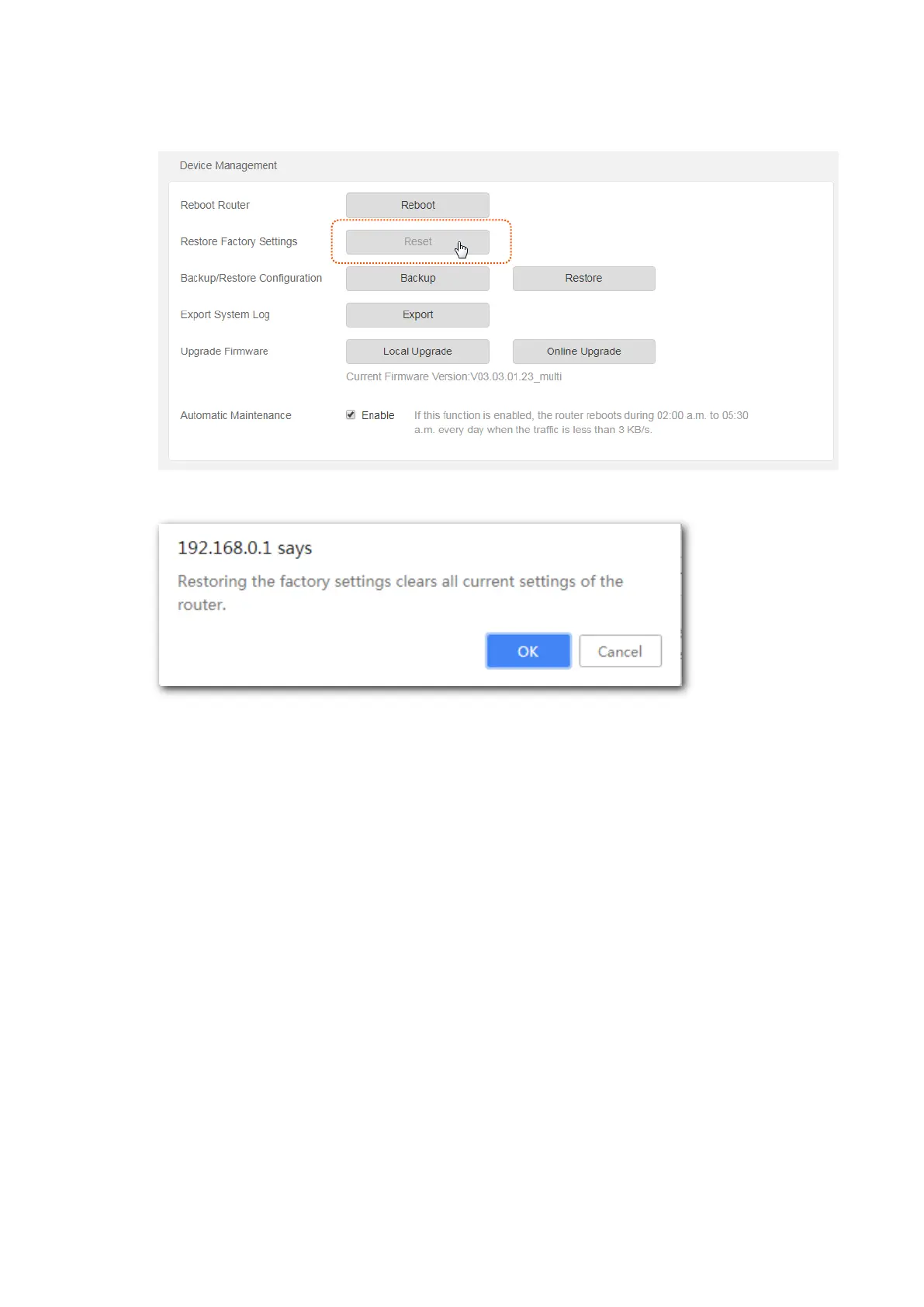

 It is recommended that you reset the router only when you forget your login password or Tenda
technical support asks you to do so.
 Ensure that the power supply of the router is normal when the router is reset.
 Resetting the router deletes all your customized settings. Therefore, you can access the internet only
after reconfiguring the router.
Reset the Router Using the Reset Button
Hold on the WPS/RST button of the router for about 8 seconds and release the button when all the LED
indicators blink once.
Backup/Restore a Configuration File
This function enables you to back up the current configuration of the router to your computer. After the
configuration is changed, you can use the backup file to restore the configuration of router. This saves
router configuration time.
To back up or restore the configuration of your router, choose Administration > Device Management
and perform either of the following procedures.

Tenda N301 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Frequency range	2.4 - 2.472 GHz
WLAN data transfer rates supported	11, 54, 300 Mbit/s
Ethernet LAN (RJ-45) ports	3
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
Antennas quantity	2
Antenna gain level (max)	5 dBi
Product color	White
Power source type	DC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE, RoH
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	127.4 mm
Width	90.5 mm
Height	26 mm
Weight	- g
