Tenda O3 User Manual

42

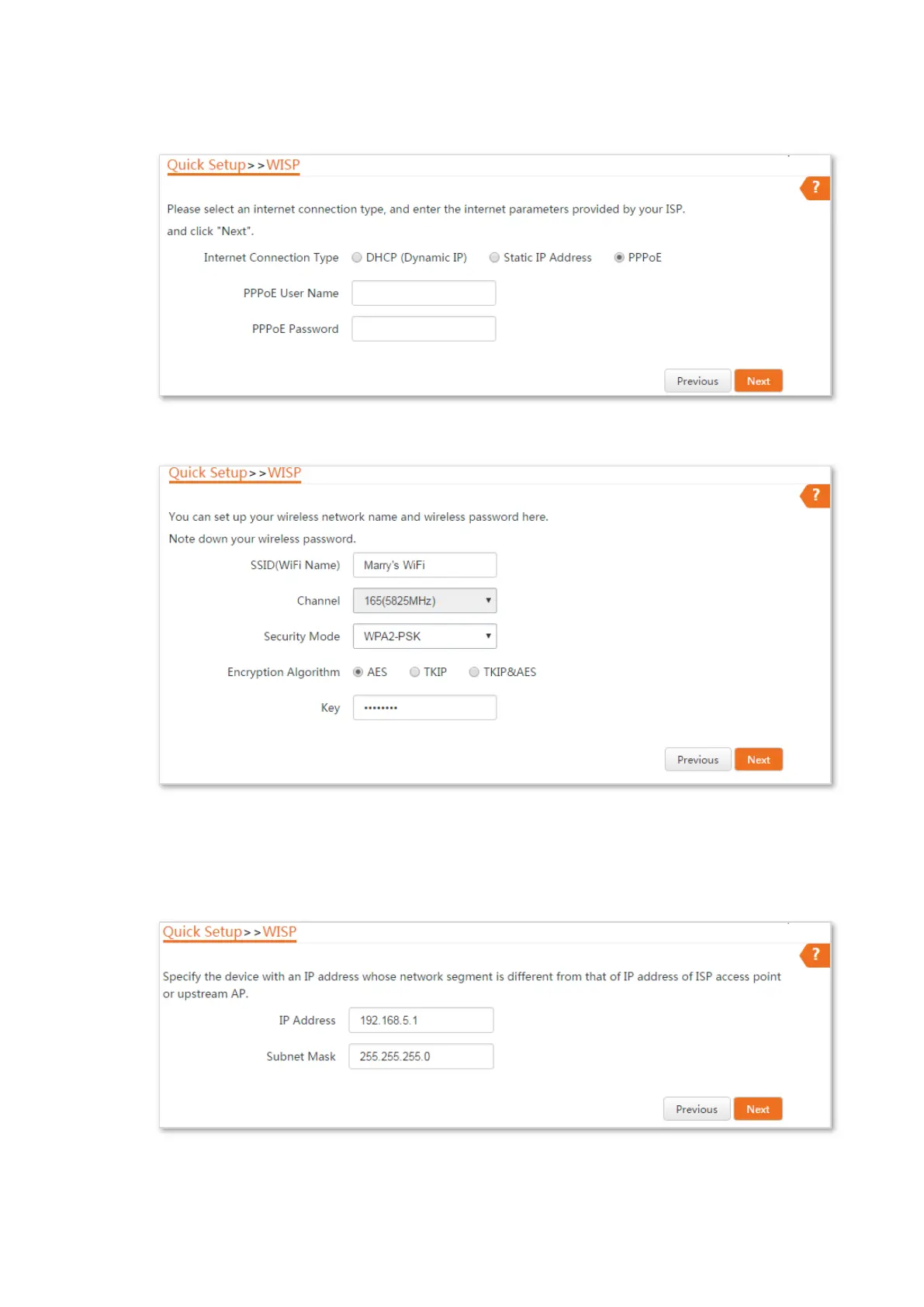

Step 5 Select the Internet Connection Type of your ISP hotspot, which is PPPoE in this example.
Enter the PPPoE user name and password provided by your ISP, and click Next.
Step 6 Customize the SSID and key, and click Next.
Step 7 Set an IP address belonging to a different network segment as that of your ISP hotspot.
For example, if the IP address of your ISP hotspot is 192.168.2.1, you can set this device’s
IP address to 192.168.X.1 (X ranges from 0 to 254 excluding 2) which is also the login IP
address of the CPE. Then click Next.
*
*

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
