Tenda O3 User Manual

60

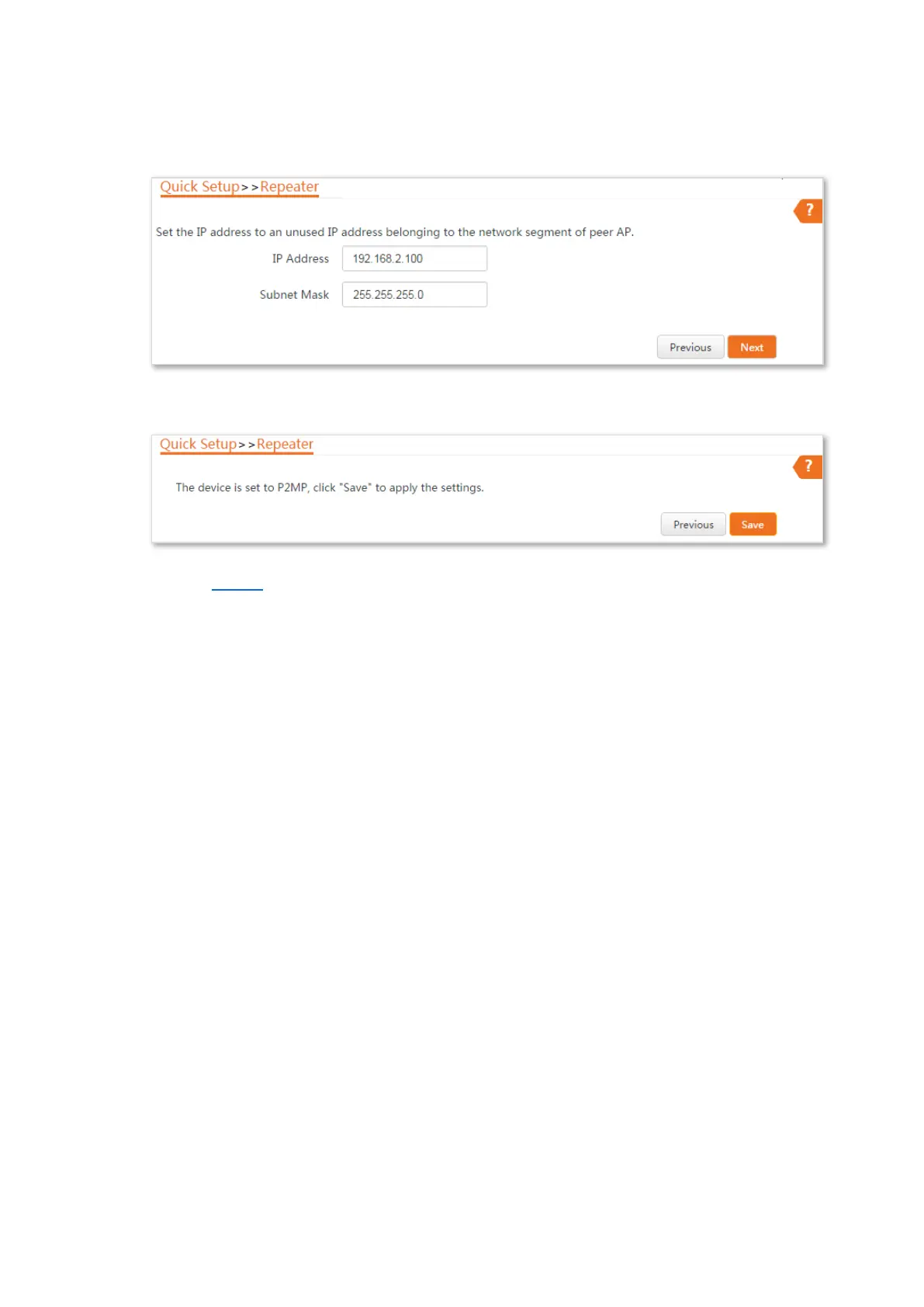

4. Set the IP address to an unused IP address belonging to the same network segment as that
of CPE1. For example, if the IP address of CPE1 is 192.168.2.1, you can set the IP address of
the device to 192.168.2.X (X ranges from 2 to 254). Then click Next.
5. Click Save, and wait until the device reboots to activate the settings.
Step 2 Perform Step 1 to set the CPE3, CPE4 and CPE5 to Repeater mode, and bridge to the
CPE1.
Step 3 Set CPE1 to P2MP mode and bridge to CPE2, CPE3, CPE4 and CPE5.
1. Start a web browser on the computer connected to the CPE1, and visit 192.168.2.1.
2. Choose Quick Setup to enter the configuration page.
3. Select P2MP mode, and click Next.
4. Select the SSID of CPE2, CPE3, CPE4 and CPE5, which are Tenda_2, Tenda_3, Tenda_4 and
Tenda_5 in this example, and click Next.

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
