Tenda PH10 User Manual

15

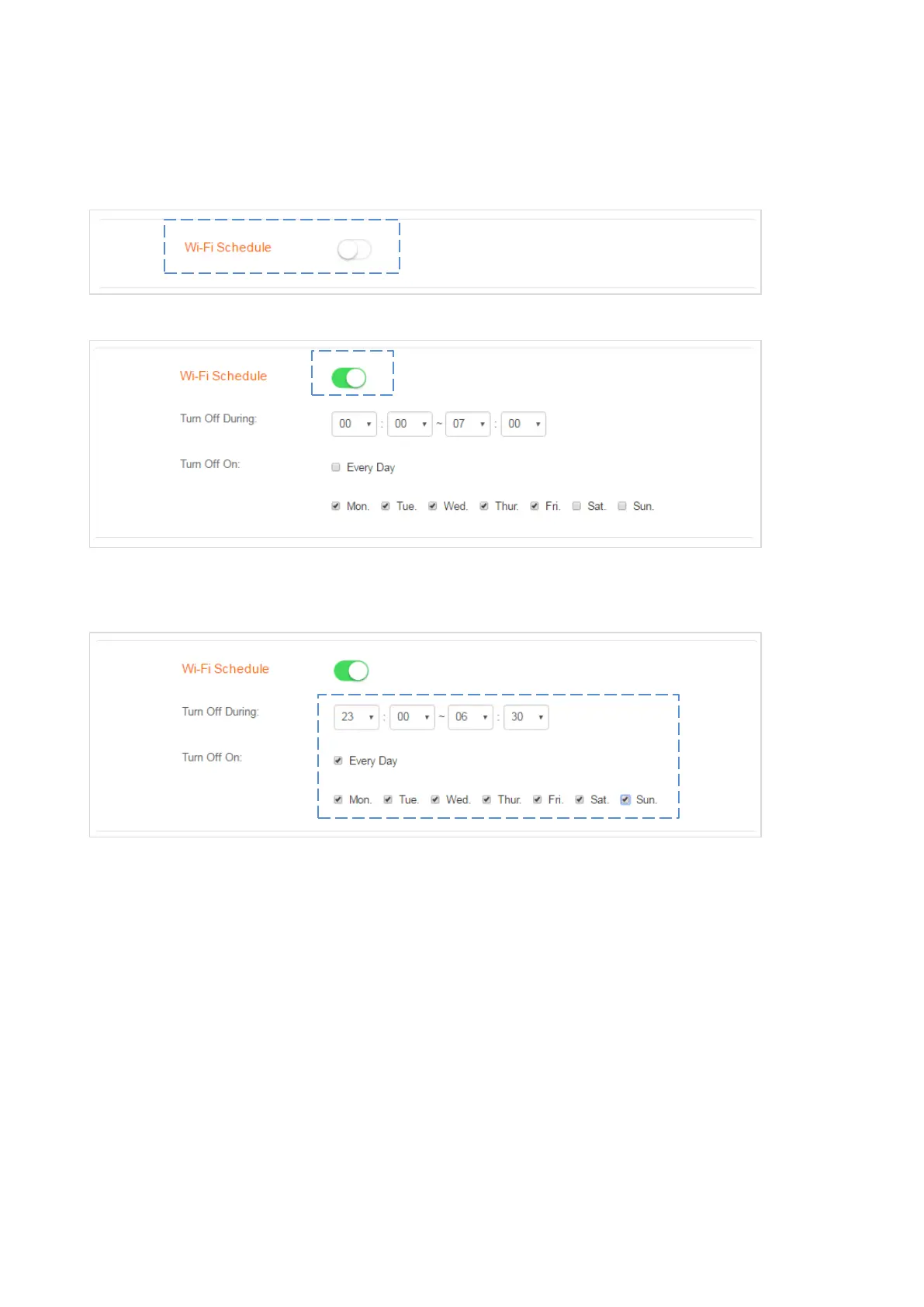

4.3.2 Setting a WiFi Schedule
You can use the Wi-Fi Schedule function to specify when to disable the WiFi network.
Step 1 Choose Wi-Fi, and locate the Wi-Fi Schedule part.
Step 2 Click the button.
Step 3 Specify a period when you want to disable the WiFi, which is 11:00 pm - 06:30 am in this example.
Step 4 Select the days to which this rule applies, which are Sunday to Saturday in this example.
Step 5 Click OK on the bottom of this page to apply the settings.
--End
4.3.3 Wireless Parameters
You can try changing other wireless parameters according to the description in the following form if necessary.

Tenda PH10 Specifications

General

Ethernet LAN	Yes
Certification	CE, FCC
Product color	White
LED indicators	Power, WLAN
Frequency range	2 - 86 MHz
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Antennas quantity	2
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Number of adapters included	1 pc(s)
Sustainability certificates	RoHS
WLAN data transfer rates supported	200, 433 Mbit/s
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	85171800
