Tenda W150D User Manual

ADSL2/2+ Router

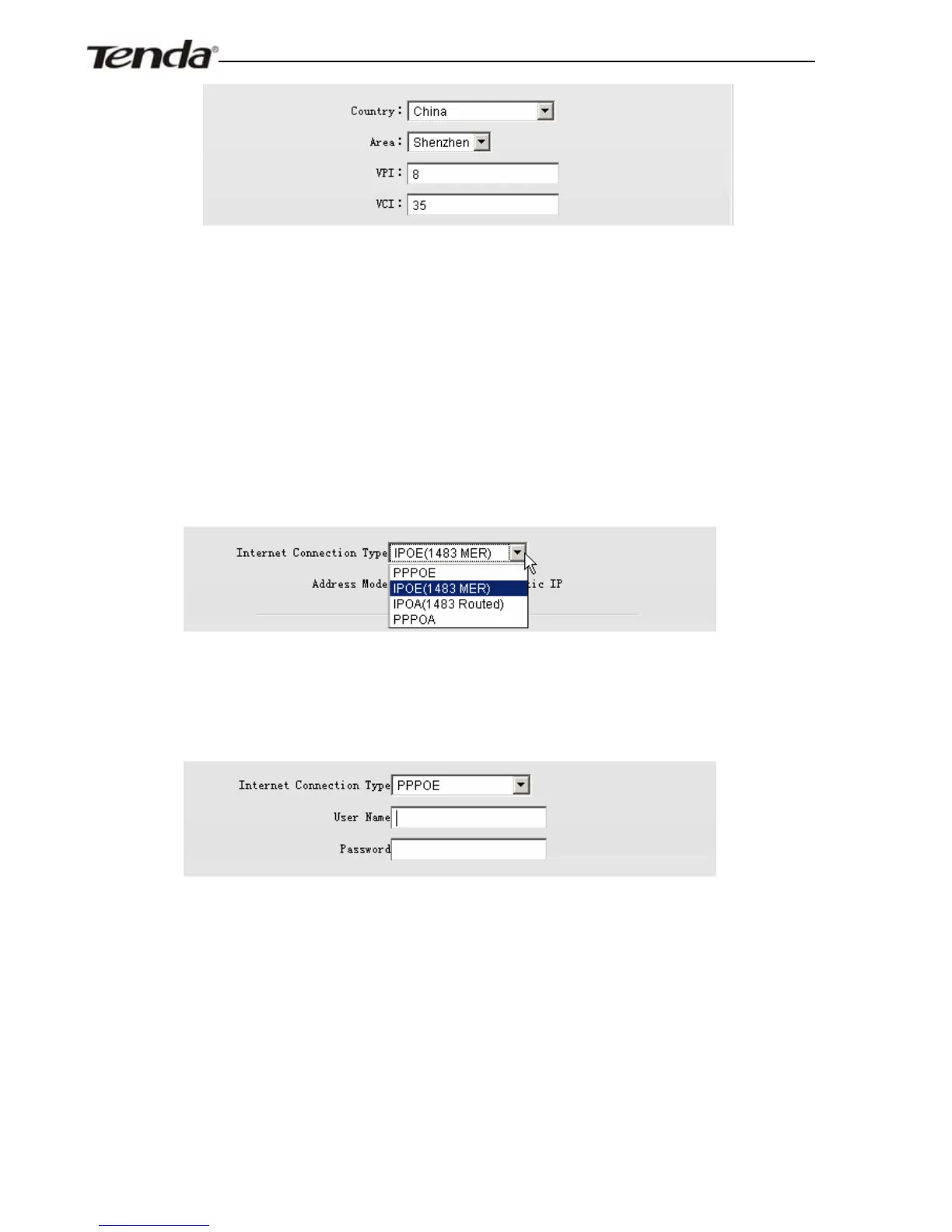

VPI/VCI values vary depending on different countries and area.
The device has integerated common VPI/VCI values of some countries
and areas. So you can just select your country and area, the VPI/VCI
values (if included) for that specific area in your country will be
populated automatically. However if you don’t find the VPI/VCI values
suiting you area or your ISP uses special VPI/VCI, consult your ISP and
then enter them manually.
2. Internet Connection Type
Internet Connection Type: PPPOE，IPOE，IPOA，PPPOA are
provided. Select one that suit yourself. Here in the example below we
use the PPPOE. For methods of configuring other types, refer to 4.3.2.
User name: Enter the user name provided by your ISP.
Password: Enter the password provided by your ISP.
Note: This information is given by an Internet service provider when you
subscribe the DSL service. If you are not sure of it, contact your service
provider for help.
- 20 -

Tenda W150D Specifications

General

VPN support	PPPTP, L2TP, Ipsec
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Bandwidth	2.4 GHz
Interface	LAN, WAN, WLAN
USB ports quantity	0
Networking features	Ethernet, Fast Ethernet
Maximum data transfer rate	0.1 Gbit/s
Minimum system requirements	Internet Explorer 6.0 / Firefox 1.0
Supported data transfer rates	10/100Mbit/s
WLAN data transfer rates supported	11, 54, 150 Mbit/s
Supported network protocols	IPoE, PPPoE, PPPoA, IPoA, DHCP server
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	1
Antenna gain level (max)	5 dBi
Web-based management	-
Ethernet LAN (RJ-45) ports	4
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	9 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	FC, CE, RoHS
Cables included	LAN (RJ-45)
Product color	White
LED indicators	DSL, LAN, Link, Power, WAN, WLAN

Weight and Dimensions

Depth	171.95 mm
Width	118.97 mm
Height	31 mm
Weight	- g
