ADSL2/2+ Router
Note: If you include port 80 on this section, you must set the
port on remote (web-based) management section to a different
number than 80, such as 8080, otherwise the virtual server feature
may not take effect.

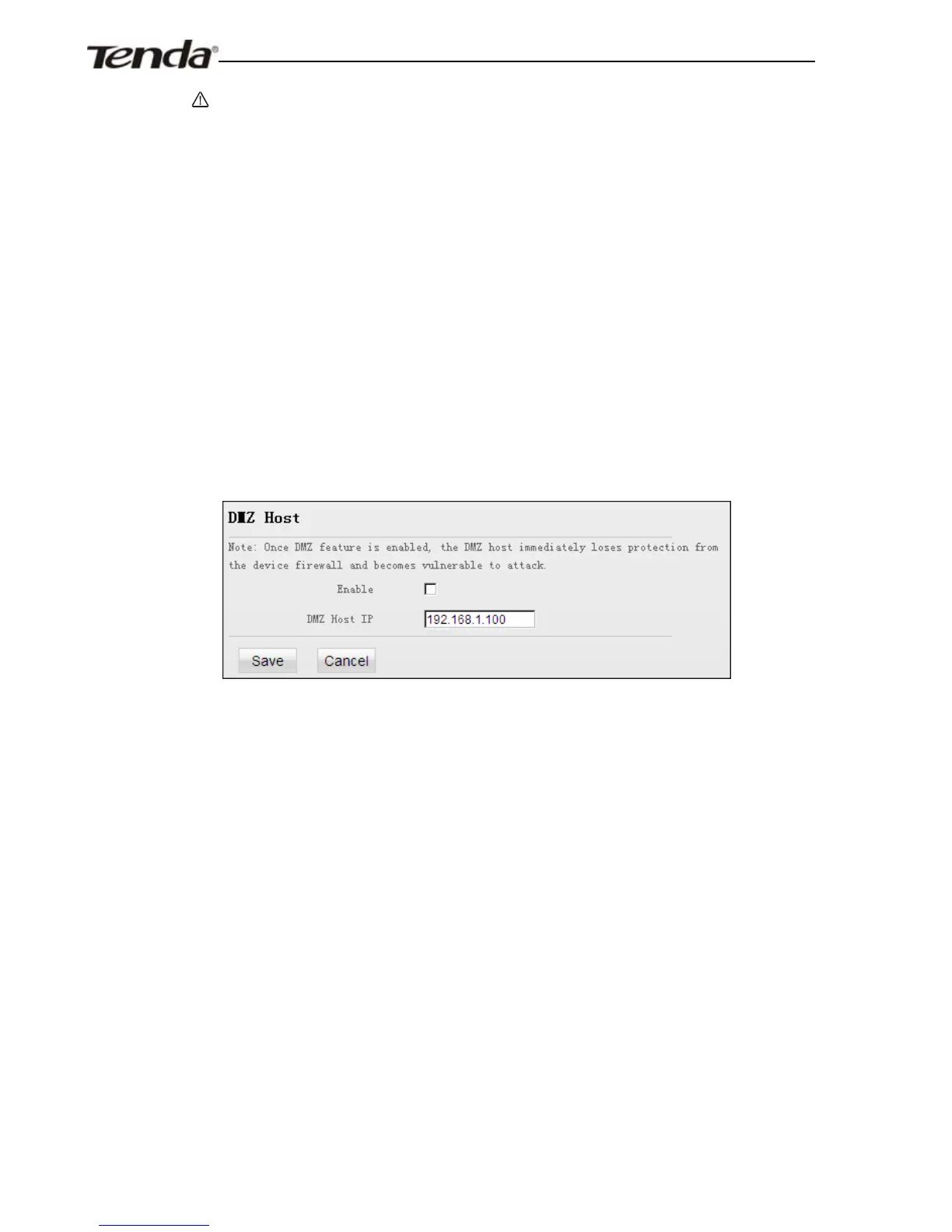

4.5.7 DMZ Host
In some cases, we need to set a computer to be completely
exposed to extranet for implementation of a bidirectional
communication. To do so, we set it as a DMZ host.
DMZ Host IP Address: Enter the IP address of a LAN computer
which you want to set to a DMZ host.
Enable: Check/uncheck to enable/disable the DMZ host feature.
For example: If you want to completely expose a PC (behind the
device) at the IP address of 192.168.1.100 to Internet users for sharing
resources, do as follows:
1. On the DMZ interface, enter 192.168.1.100 and check “Enable”.
- 72 -
