ADSL2/2+ Router
over Ethernet.
¾ IPOA-Dynamic IP: Connect to Internet via a dynamic IP over ATM.
¾ IPOA- Static IP: Connect to Internet via a fixed IP over ATM.
¾ PPPOA: Connect to Internet via PPPOE virtual dialup over ATM.

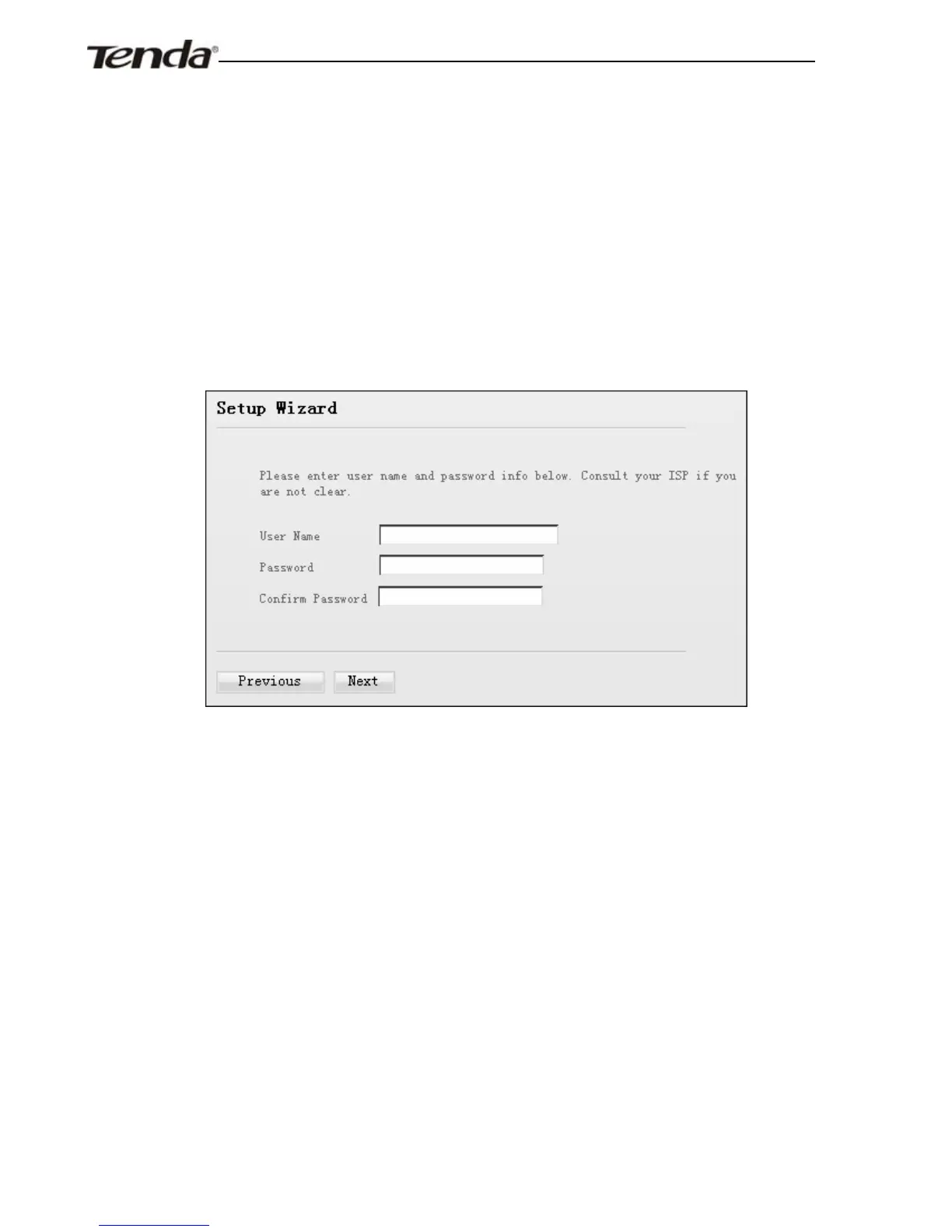

Select PPPoE, click “Next”, if your ISP is using a PPPoE connection,
and then enter the user name and password provided by your ISP.
If you are using a dynamic IP, simply click "Next”. The device will
obtain IP settings automatically from your ISP.
If you are using a static IP, enter the IP, subnet mask, gateway,
and primary/secondary DNS addresses and then click “Next”.
- 33 -
