ADSL2/2+ Router

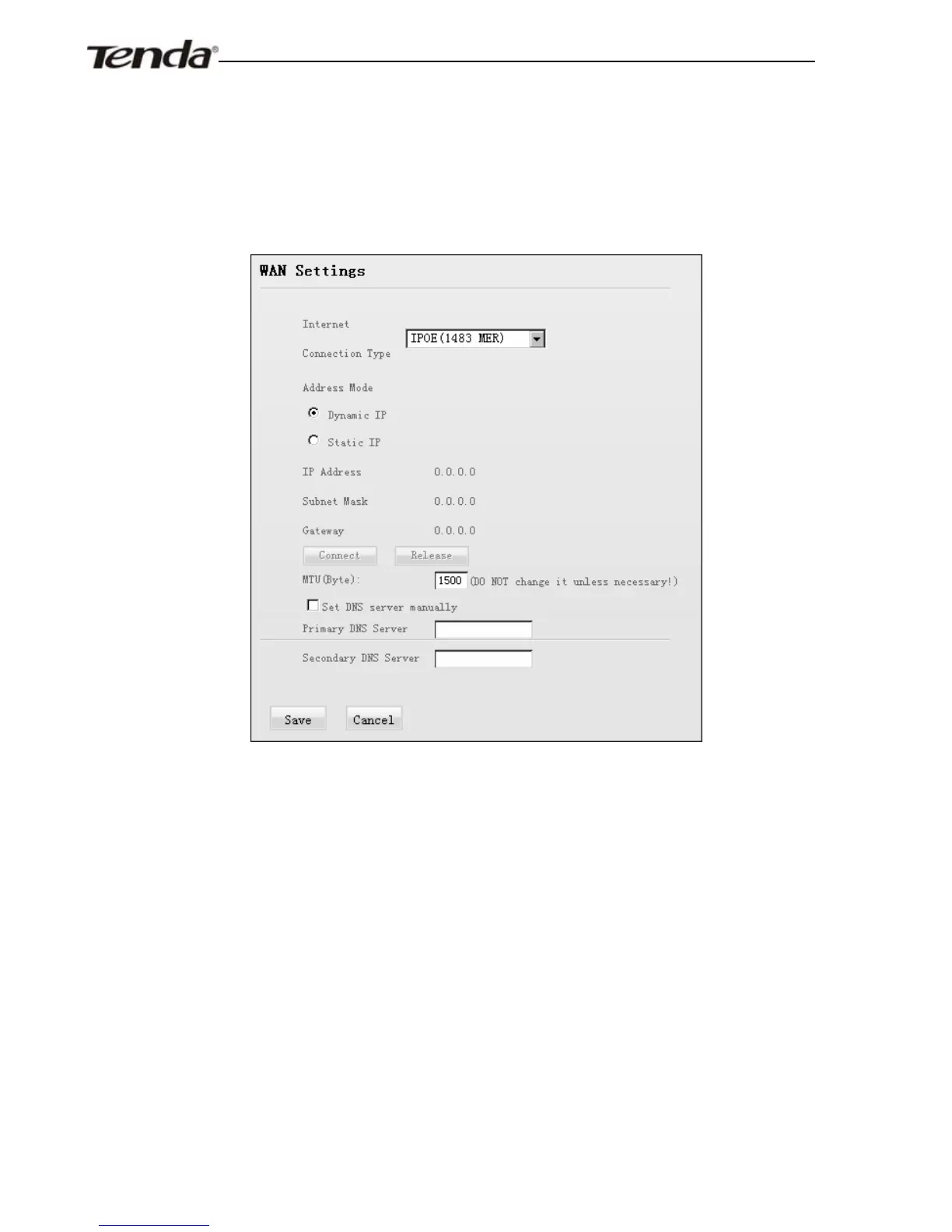

IPoEDynamic IP
If your ISP is using an IPoE connection and does not give you any
IP info, then select IPoEDynamic IP.
The device will obtain an IP address from ISP automatically.
MTU: Maximum Transmission Unit. The default value is 1500.
Set DNS Server Manually: Check the box to enter DNS address(es)
manually.
IPoEStatic IP
If your ISP is using an IPoE connection and assigns a fixed IP
address to you, then select IPoEStatic IP, and enter the IP address,
subnet mask, primary DNS and secondary DNS(optional) info provided
- 39 -

Other manuals for Tenda W150D

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Tenda W150D and is the answer not in the manual?

Tenda W150D Specifications

General IconGeneral
VPN supportPPPTP, L2TP, Ipsec
Ethernet LANYes
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeFast Ethernet
Wi-Fi bandNo
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity13 channels
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)150 Mbit/s
Bandwidth2.4 GHz
InterfaceLAN, WAN, WLAN
USB ports quantity0
Networking featuresEthernet, Fast Ethernet
Maximum data transfer rate0.1 Gbit/s
Minimum system requirementsInternet Explorer 6.0 / Firefox 1.0
Supported data transfer rates10/100Mbit/s
WLAN data transfer rates supported11, 54, 150 Mbit/s
Supported network protocolsIPoE, PPPoE, PPPoA, IPoA, DHCP server
Security algorithmsWEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity1
Antenna gain level (max)5 dBi
Web-based management-
Ethernet LAN (RJ-45) ports4
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)9 W
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 95 %
Operating relative humidity (H-H)10 - 90 %
CertificationFC, CE, RoHS
Cables includedLAN (RJ-45)
Product colorWhite
LED indicatorsDSL, LAN, Link, Power, WAN, WLAN
Weight and Dimensions IconWeight and Dimensions
Depth171.95 mm
Width118.97 mm
Height31 mm
Weight- g
