ADSL2/2+ Router
However, a numeric address is inconvenient to remember; an address
which changes unpredictably makes connection impossible. The DDNS
provider allocates a static hostname to the user; whenever the user is
allocated a new IP address this is communicated to the DDNS provider
by software running on a computer or network device at that address;
the provider distributes the association between the hostname and the
address to the Internet's DNS servers so that they may resolve DNS
queries. Thus, uninterrupted access to devices and services whose
numeric IP address may change is maintained.

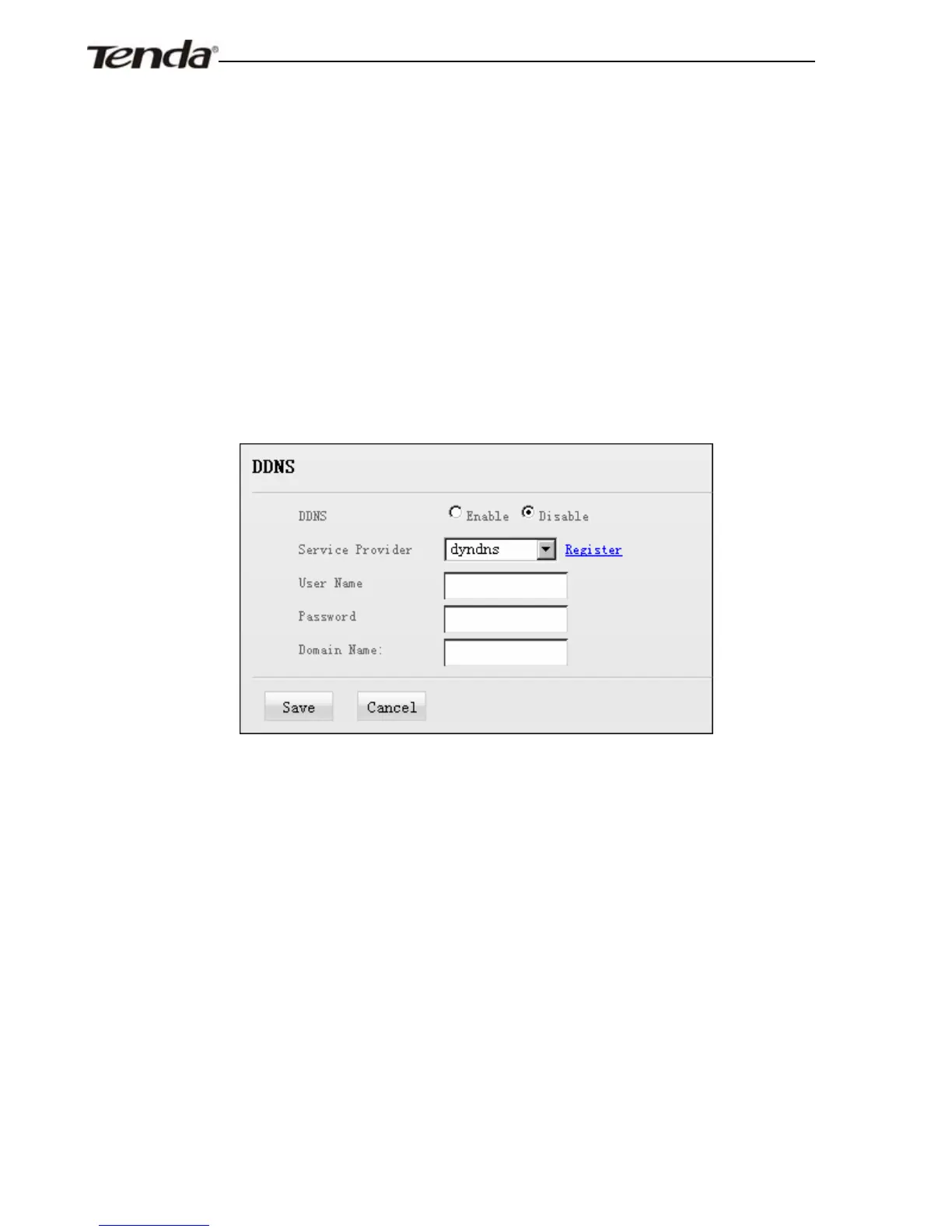

DDNS: Select to Enable or Disable the DDNS feature.
Service Provider: Select your DDNS service provider from the
drop-down menu.
Username: Enter the DDNS username registered on DDNS
server.
Password: Enter the DDNS password registered on DDNS
server.
Domain Name: Enter the DDNS domain name distributed by your
DDNS service provider.
Save: Click it to save your settings.
- 68 -

Other manuals for Tenda W150D

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Tenda W150D and is the answer not in the manual?

Tenda W150D Specifications

General IconGeneral
VPN supportPPPTP, L2TP, Ipsec
Ethernet LANYes
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeFast Ethernet
Wi-Fi bandNo
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity13 channels
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)150 Mbit/s
Bandwidth2.4 GHz
InterfaceLAN, WAN, WLAN
USB ports quantity0
Networking featuresEthernet, Fast Ethernet
Maximum data transfer rate0.1 Gbit/s
Minimum system requirementsInternet Explorer 6.0 / Firefox 1.0
Supported data transfer rates10/100Mbit/s
WLAN data transfer rates supported11, 54, 150 Mbit/s
Supported network protocolsIPoE, PPPoE, PPPoA, IPoA, DHCP server
Security algorithmsWEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity1
Antenna gain level (max)5 dBi
Web-based management-
Ethernet LAN (RJ-45) ports4
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)9 W
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 95 %
Operating relative humidity (H-H)10 - 90 %
CertificationFC, CE, RoHS
Cables includedLAN (RJ-45)
Product colorWhite
LED indicatorsDSL, LAN, Link, Power, WAN, WLAN
Weight and Dimensions IconWeight and Dimensions
Depth171.95 mm
Width118.97 mm
Height31 mm
Weight- g
