Tenda W308R User Manual

11N Wireless Broadband Router User Guide
61

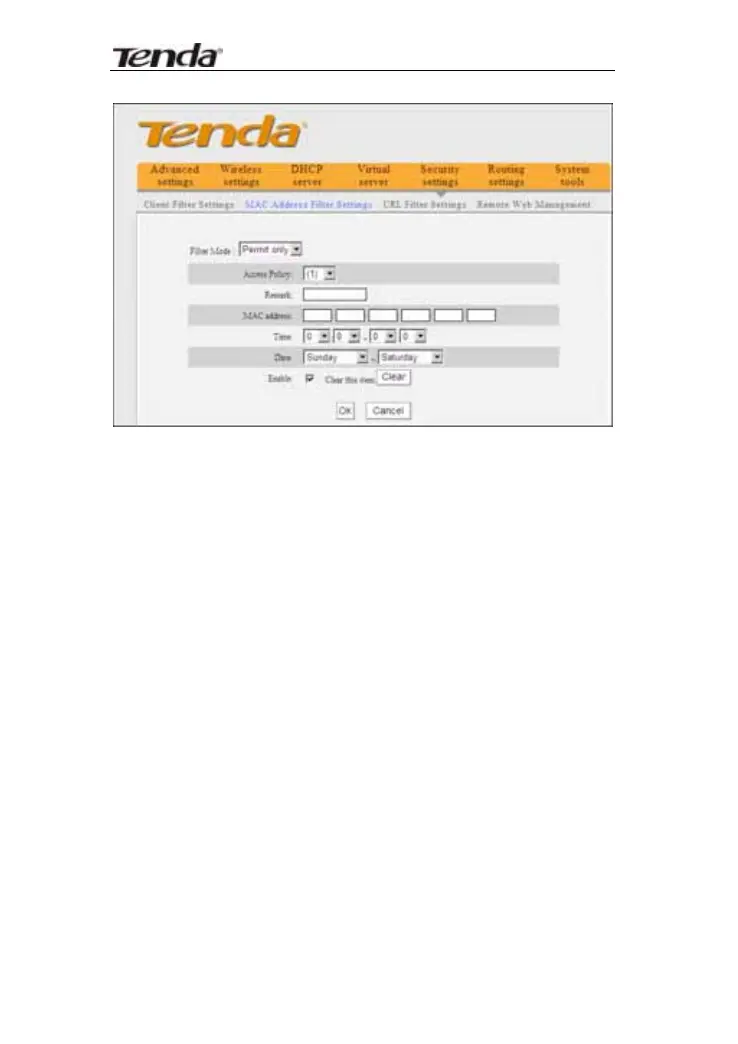

¾ Filter mode: You can select either “Permit only” or
“Forbid only”.
¾ Access Policy: Select one number from the
drop-down list.
¾ Remark: A simple description of the configured file.
You can also leave it blank.
¾ MAC Address: Enter the MAC address you want to
run the access policy.
¾ Time: Select the time range of MAC address
filter.
¾ Date: Select the day(s) to run the access policy.
¾ Enable: To enable/disable the access policy
(forbid/permit the packets matched with the
access policy to pass through the router).
Example 1 Forbid the computer with the MAC address

Tenda W308R Specifications

General

Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency Band	2.4 GHz
Data Rate	Up to 300 Mbps
Antenna	2 x 5dBi external antennas
LAN Ports	4x 10/100 Mbps
WAN Ports	1x 10/100 Mbps
Security	WPA, WPA2
WAN Connection Type	Dynamic IP, Static IP, PPPoE
