Tenda W308R User Manual

11N Wireless Broadband Router User Guide
19
Chapter 4 Advanced Settings

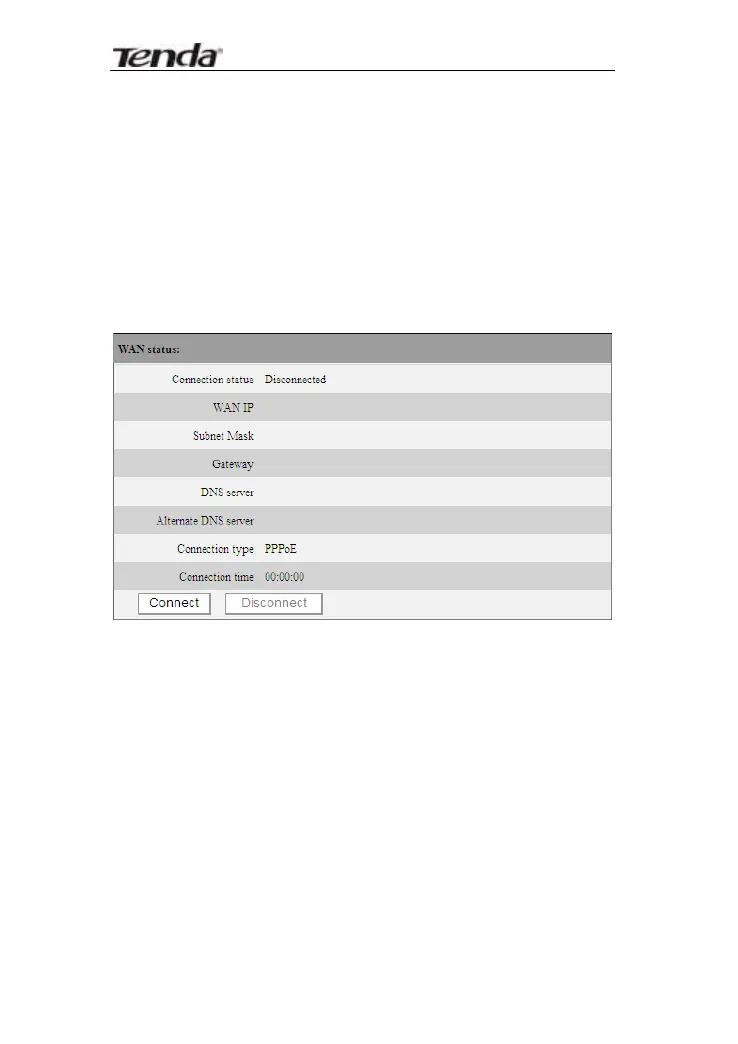

4.1 System Status
System status screen allows you to view the router’s
WAN port status and system status.
 Connection status: It displays the router’s WAN
connection status.
Disconnected: It indicates the router’s WAN port
hasn’t been connected with the network cable.
Connecting: It indicates the router’s WAN port is
obtaining IP address.
Connected: It indicates the Router is well
connected with the ISP.
 WAN IP：IP address obtained from ISP.
 Subnet mask: Obtained from ISP.
 Gateway: Obtained from ISP.
 DNS server: Obtained from ISP.
 Alternate DNS server: Obtained from ISP.

Tenda W308R Specifications

General

Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency Band	2.4 GHz
Data Rate	Up to 300 Mbps
Antenna	2 x 5dBi external antennas
LAN Ports	4x 10/100 Mbps
WAN Ports	1x 10/100 Mbps
Security	WPA, WPA2
WAN Connection Type	Dynamic IP, Static IP, PPPoE
