Tenda W308R User Manual

11N Wireless Broadband Router User Guide
49

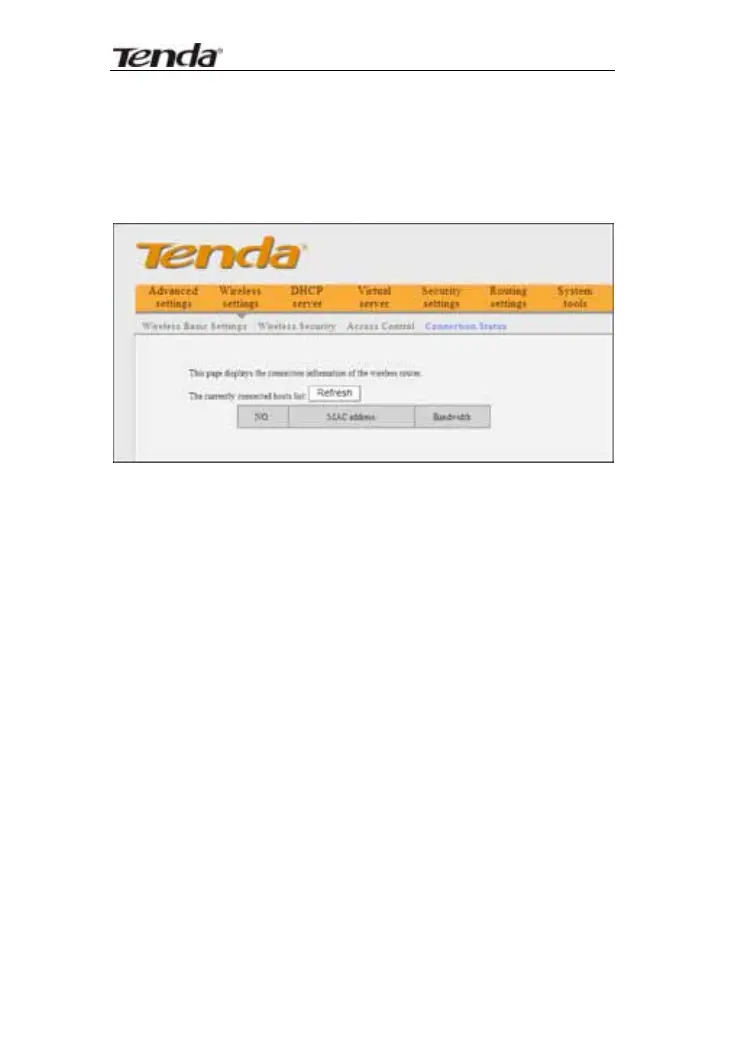

5.4 Connection Status
This screen shows wireless client’s connection status,
including MAC address, Channel bandwidth.
¾ MAC address: Shows the MAC addresses of the
hosts connected to the Router.
¾ Bandwidth: Shows the channel bandwidth of the
current connected hosts (wireless clients).
Chapter 6 DHCP Server
6.1 DHCP Server
DHCP (Dynamic Host Control Protocol) is used to assign
an IP address to the computers on the LAN/private
network. When you enable the DHCP Server, the DHCP
Server will allocate automatically an unused IP address
from the IP address pool to the requesting computer in

Tenda W308R Specifications

General

Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency Band	2.4 GHz
Data Rate	Up to 300 Mbps
Antenna	2 x 5dBi external antennas
LAN Ports	4x 10/100 Mbps
WAN Ports	1x 10/100 Mbps
Security	WPA, WPA2
WAN Connection Type	Dynamic IP, Static IP, PPPoE
