Tenda W308R User Manual

11N Wireless Broadband Router User Guide
64

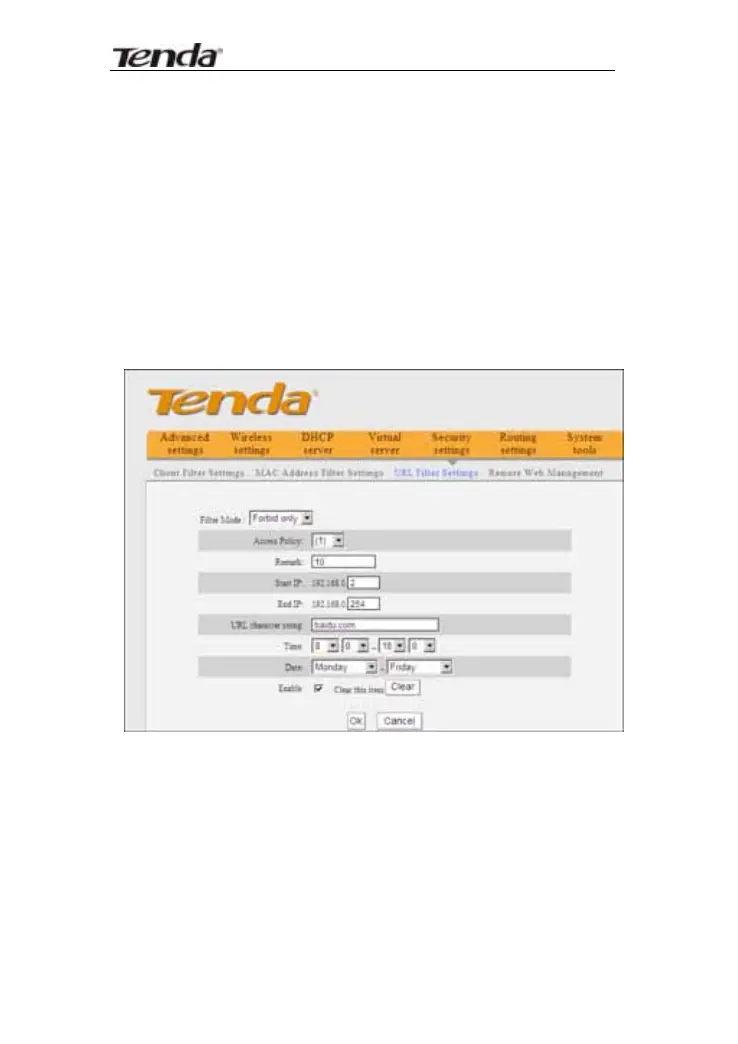

¾ Time: Select the time range of URL filter.
¾ Date: Select the day(s) to run the access policy.
¾ Enable: To enable/disable the access policy (forbid
/permit the packets matched with the access policy
to pass through the router).
Example1 Forbid all computers on LAN to access
baidu.com during 8:00 to 18:00 from Monday to Friday.
Example2 Permit LAN computers with the IP
addresses of 192.168.0.100-192.168.0.115 to access
yahoo.com.

Tenda W308R Specifications

General

Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency Band	2.4 GHz
Data Rate	Up to 300 Mbps
Antenna	2 x 5dBi external antennas
LAN Ports	4x 10/100 Mbps
WAN Ports	1x 10/100 Mbps
Security	WPA, WPA2
WAN Connection Type	Dynamic IP, Static IP, PPPoE
