Tennant 6500 - Service Manual

354 pages

Save Page as PDF

To Next Page

To Next Page

Loading...

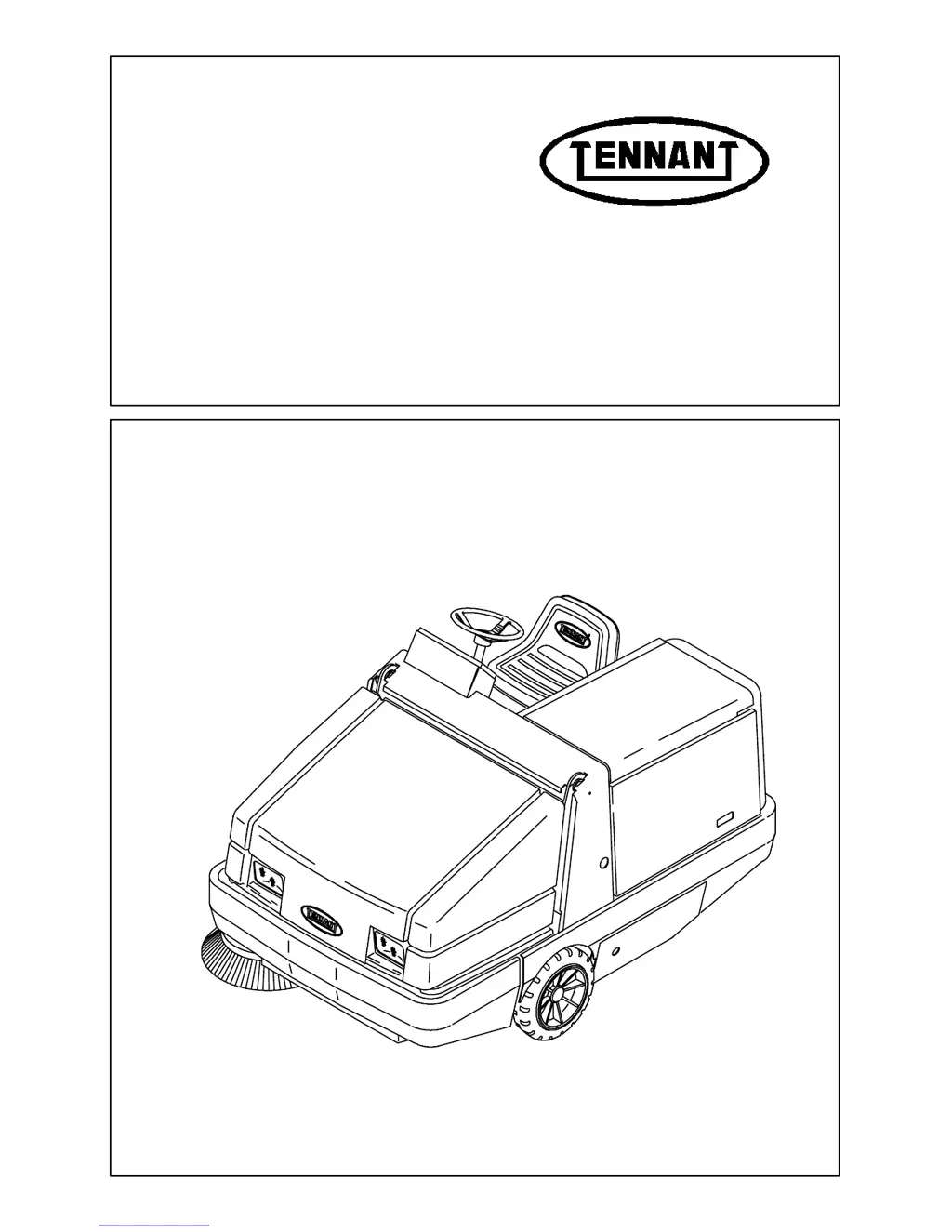

6500/6550

330275

Rev. 02 (5--02)

Service Manual

Gas/LP/Diesel

*330275*

Table of Contents

Other manuals for Tennant 6500

Operator's Manual112 pages

Instruction Bulletin3 pages

Questions and Answers

D
Daniel PalmerJul 28, 2025
Why is my Tennant Blower having poor sweeping performance?
- M
  Martha FlowersJul 28, 2025
  If your Tennant Blower's sweeping performance is poor, start by checking the brushes for wear and replace them if needed. Make sure the main and side brushes are properly adjusted. Clear any debris caught in the main brush drive mechanism. Ensure the hopper isn't full, and replace the hopper lip skirts if they are worn or damaged. Also, verify that the hopper door is fully open and the main brush is in the Float position.
A
Andrew LarsonAug 12, 2025
What to do if my Tennant 6500 Blower is excessively dusting?
- G
  Gabrielle SullivanAug 12, 2025
  If your Tennant Blower is excessively dusting, several factors could be the cause. Check the brush skirts and dust seals for wear, damage, or incorrect adjustment; replace or adjust them as needed. Also, inspect the hopper dust filter for clogs; shake, clean, or replace it. Ensure the shaker solenoid spring is connected and the filter shaker plate is correctly installed. Verify that the shaker solenoid pin is properly inserted into the hole of the filter element comb. Operating the engine at (Fast 1) speed instead of (Fast 2) might help. Check the vacuum hose for damage and replace if necessary. Remember to check if the hopper door is fully open and reset the Thermo Sentryt if it has tripped.

Summary

General Information

Safety Precautions

Essential safety guidelines for machine operation and servicing.

Specifications

Detailed machine dimensions, capacities, and performance data.

Maintenance

Maintenance schedules and procedures for Gas/LP and Diesel engines.

Operational Procedures

Procedures for safely moving, jacking, and storing the machine.

Chassis

Seat

Procedures for removing, replacing, and adjusting the seat assembly.

Static Drag Chain

Function and contact requirement of the static drag chain.

Braking System

Details on service, parking brakes, and adjustment procedures.

Wheels and Tires

Maintenance for front and rear tires and wheel bearings.

Sweeping

Debris Hopper

Procedures for removing, installing, and adjusting the debris hopper.

Brushes

Maintenance and replacement of main and side brushes.

Skirts and Seals

Procedures for replacing various skirts and seals for debris containment.

Hopper Lift Arm

Procedures for removing and installing the hopper lift arm.

Electrical

Electrical System Overview

Overview of the machine's electrical system components and battery.

Instrument Touch Panel

Replacing the instrument touch panel assembly.

Circuit Breakers

Identification and function of circuit breakers protecting electrical components.

Wire Harnesses

Schematics and identification of wire harnesses for Gas/LP and Diesel models.

Hydraulics

Hydraulic Fluid and Reservoir

Details on hydraulic fluid types, reservoir maintenance, and checks.

Hydraulic Pumps

Procedures for replacing propel and accessory hydraulic pumps.

Cylinders and Valves

Procedures for replacing hydraulic cylinders and steering valve.

Motors

Procedures for replacing brush, vacuum fan, and drive motors.

Engine - G;LPG

Engine Lubrication and Cooling

Engine oil and coolant level checks and maintenance procedures.

Air Intake System

Maintenance of the air filter indicator and air filter element.

Fuel System

Maintenance and safety for Gasoline and LPG fuel systems.

Governor Troubleshooting

Troubleshooting engine speed control issues.

Engine - D

Engine Lubrication and Cooling

Engine oil and coolant level checks and maintenance procedures.

Air Intake System

Maintenance of the air filter indicator and air filter element.

Diesel Fuel System

Fuel system components, filter replacement, and priming procedures.

Governor System

Function and adjustment of the electronic governor system.

Tennant 6500 Specifications

General

Brand	Tennant
Model	6500
Category	Blower
Language	English
