a
b
c
Tools needed: No.4 Hex Key,
and No.3 Hex Key.
01

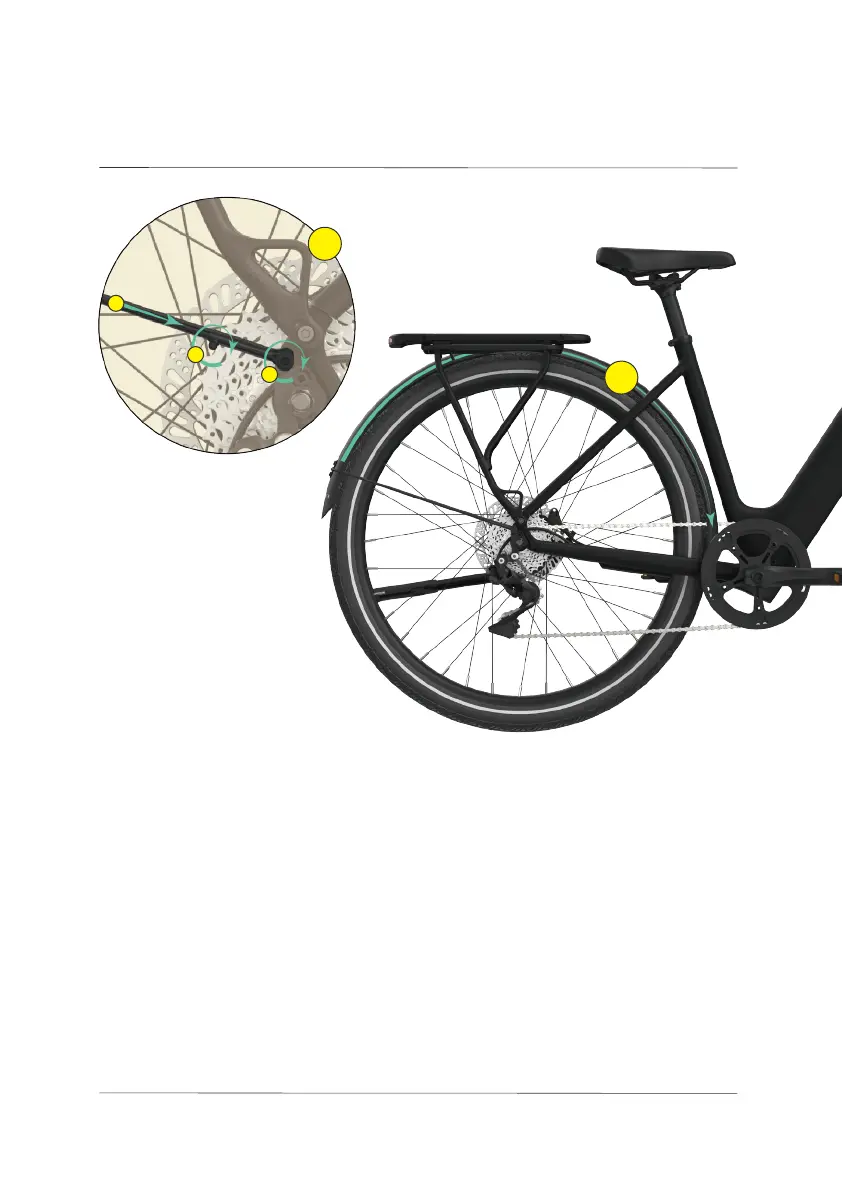

Use the No.4 Hex Key to remove the pre-
installed screws on the rear fork, install the
mudguard support rods, and then tighten
the screws.
Note: There is no need for you to fully tighten
the nut at this time.
02
Manually adjust the height of the mudguard
to align the top edge of its rear side with that
of the front side of the rear wheels.
support length using the No.3 Hex Key).
03
Tighten the corresponding screws (Torque:
2 to 3 Nm).
1
3
015
INSTALL THE
REAR MUDGUARD
07.
Install the rear mudguard
