second (it stands fps number) and convert the number to a decimal number to
display on two seven-section LEDs.
⚫ CLOCKMEM: This module will divide the three clocks (VGA_CLK, MIPI_REFCLK
and MIPI_PIXEL_CLK) to 1Hz to display on LEDs. Users can observe the LEDs
to see if the clocks work or not.
We provide the Line-Buffer demonstrations on both DE1-SoC and DE2-115. The
switch setting and Key operation are the same on both DE1-SoC and DE2-115.
The following are the descriptions of the two platforms’ set up, as well as the test
steps.
DE1-SoC Demonstration:
◼ Hardware Setting Up

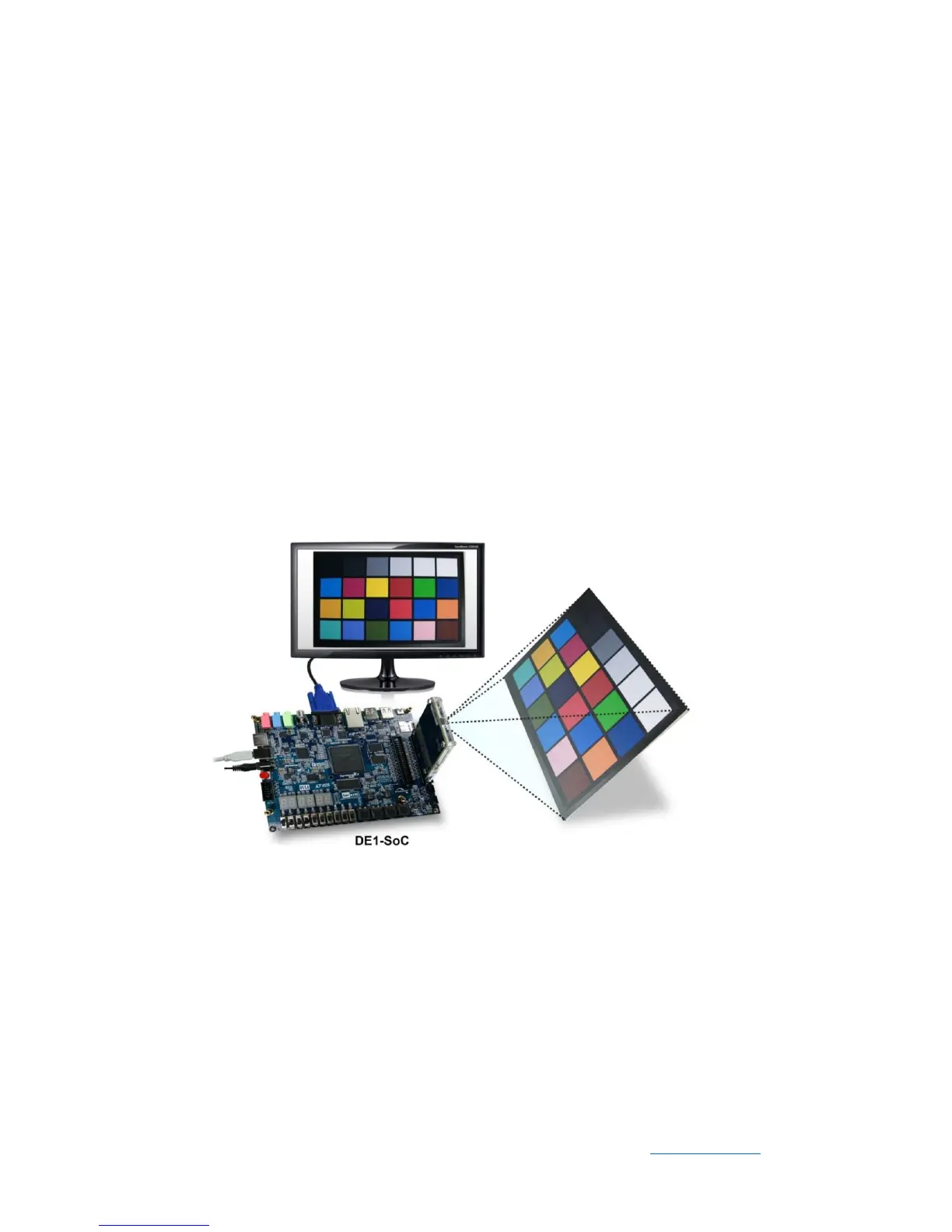

As shown in Figure 4-2
Figure 4-2 DE1-SoC demo hardware setting up
◼ Design Tools
⚫ Quartus II v15.0
◼ Demonstration Source Code
⚫ Quartus project directory: DE1_SOC_D8M_LB_RTL
⚫ Nios II Eclipse project workspace: DE1_SOC_D8M_LB_RTL.sof
