7.16 Air Cleaner Inspection / Replacement
The air cleaner is one of the most important maintenance items on the machine.
Regular inspection and replacement is necessary to ensure proper performance
and to prolong engine life. Inspect the air cleaner elements daily. If damaged
or heavily soiled, clean or replace the elements.
1. Shut the machine down according to the procedure in section 5.12, then
open the hood. Release the latches on either side of the air cleaner and
remove the cover.

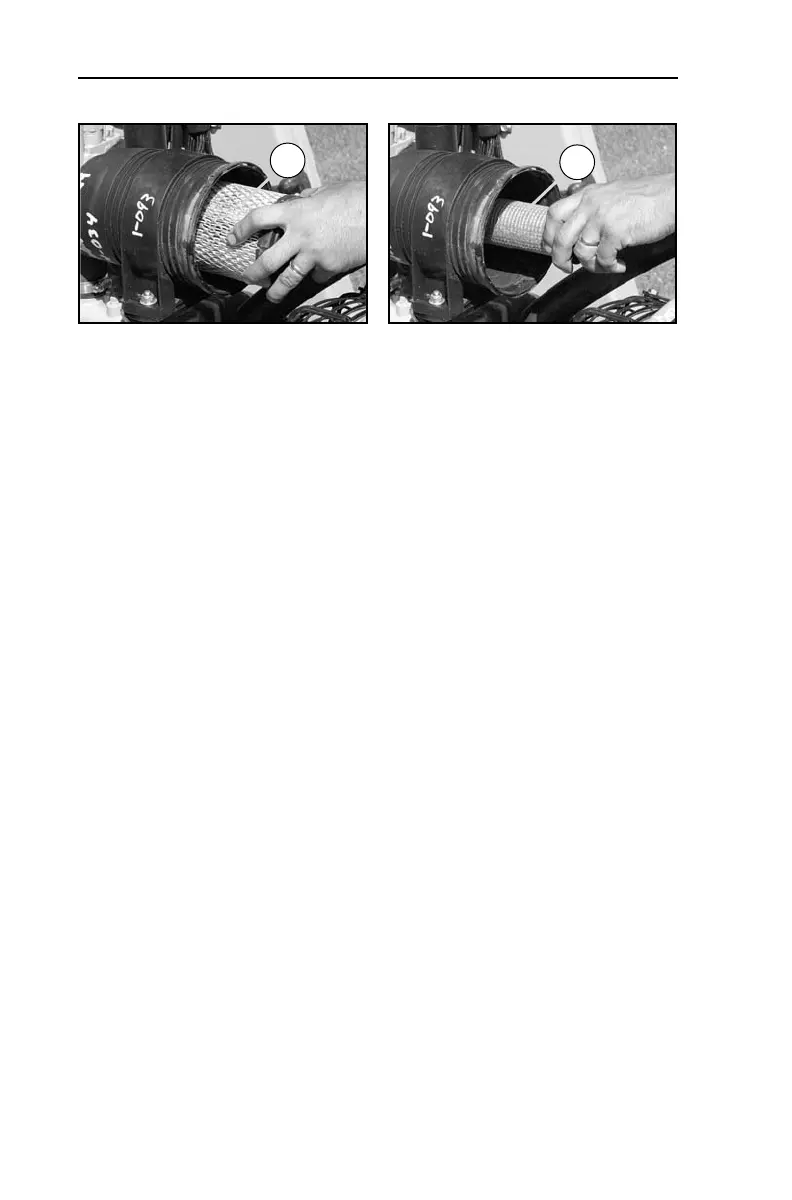

2. Remove the primary element (1). The primary element can be cleaned and
reused up to five times, but should be changed at least once a year.
3. Remove the secondary element (2). The secondary element is not
serviceable or washable. The secondary element should be replaced every
three cleanings of the primary element.
7 MAINTENANCE
74
2
1
