Terex PT30 - ISO Safety Signs and Locations

2.4.1 ISO Safety Sign Location

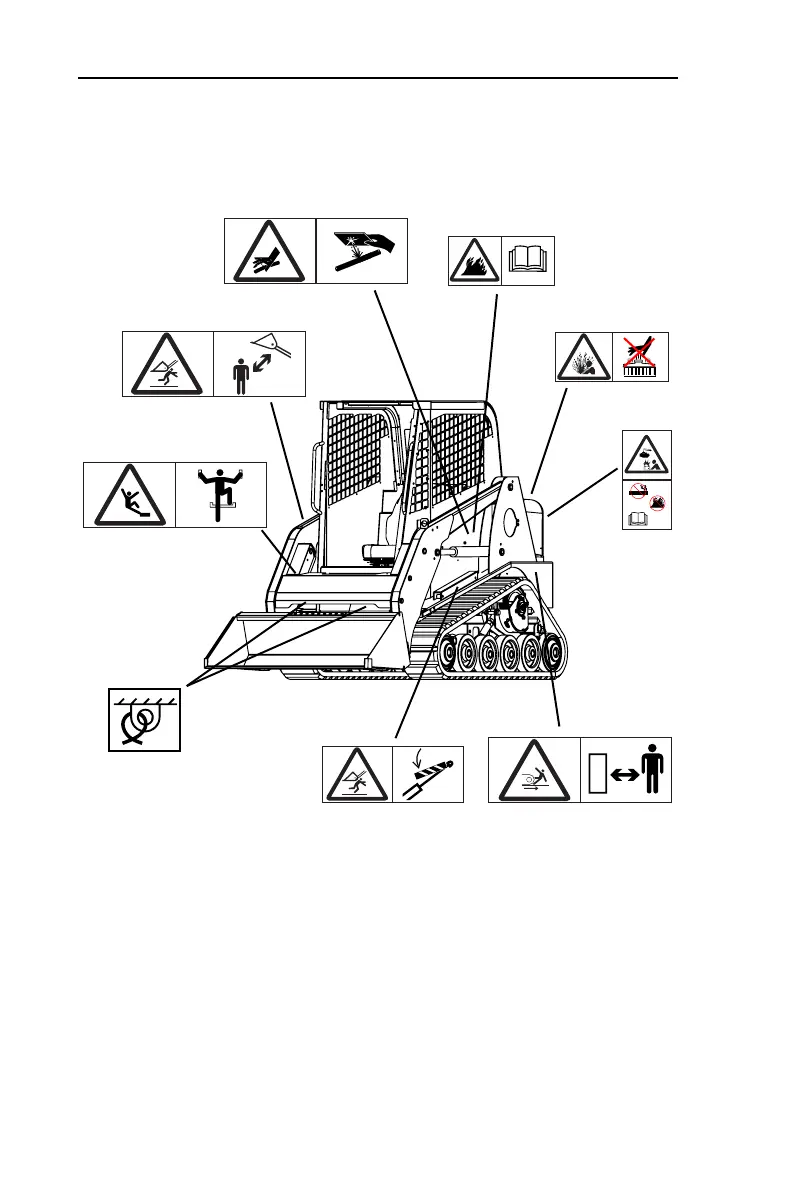

The safety signs are located in/on the machine as indicated. (Descriptions of the
symbols are provided in section 2.3)
Key
1. Fall hazard
2. Crush hazard (lift arms)
3. Skin (oil) injection hazard
4. Fire hazard (read manual) (inside cab enclosure)
5. Burn hazard (engine compartment)
6. Explosion / burn hazard (read operator’s manual) (engine compartment)
7. Tie down location (on chassis, beneath lift arm)
8. Crush hazard (run over)
9. Crush hazard (lift arm brace)
