Operating Manual Crawler Excavator TC37
Technical Specifications 3
3.11 Working range for grab operations
Danger of injury
due to overturning hazard of machine.
• For safety reasons, ensure that the
indicated reach distances are not
exceeded when the grab is full.

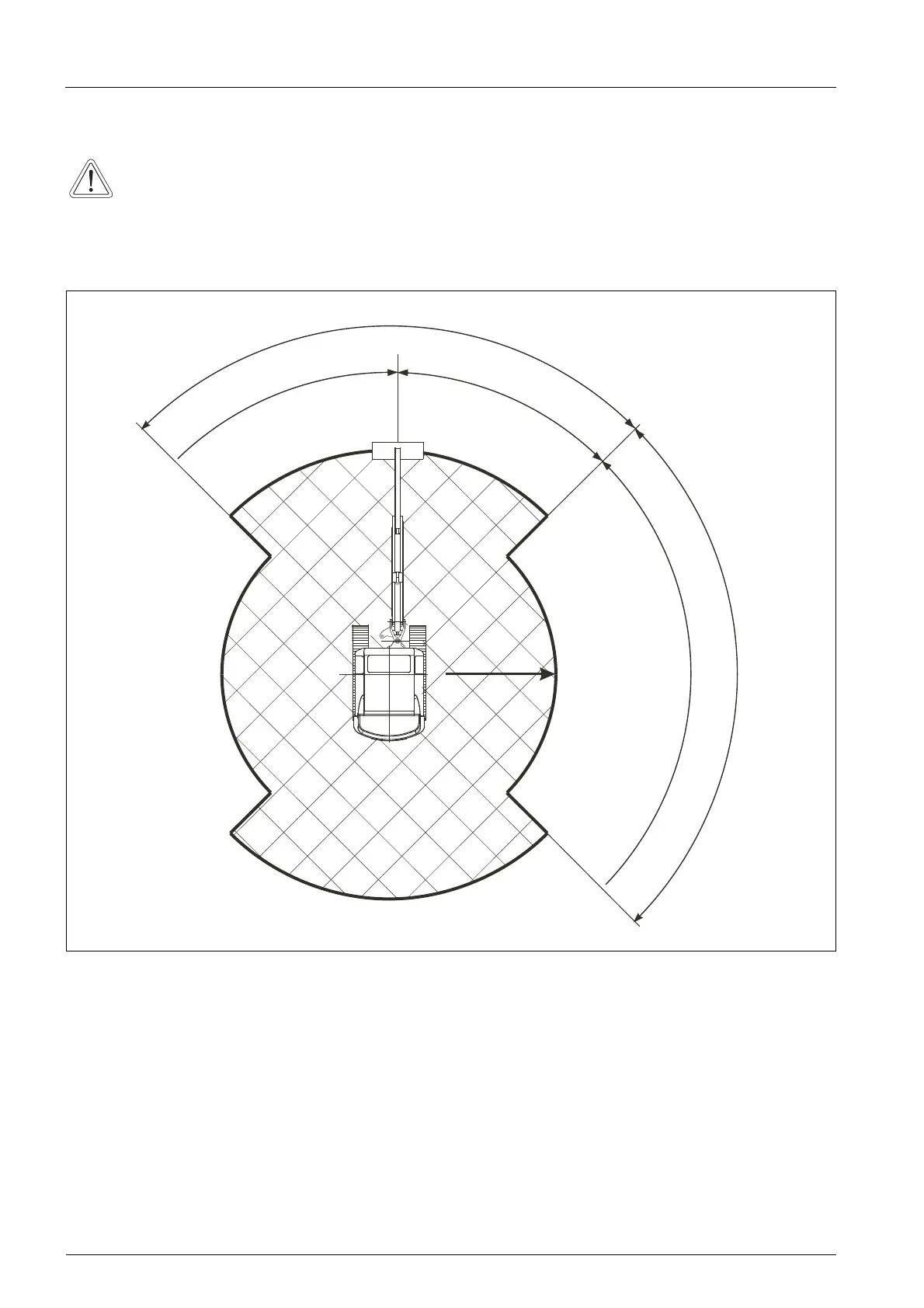

Fig. 11 Working range of grab
A) maximum reach
B) restricted reach
45
45
H
R
1
6
0
8
90
max. 13.12 ft
A
B
