Terex tc37 - Display Elements and Operator Controls

40
Operating Manual Crawler Excavator TC37
Operation4
4.2 Display elements and operator
controls

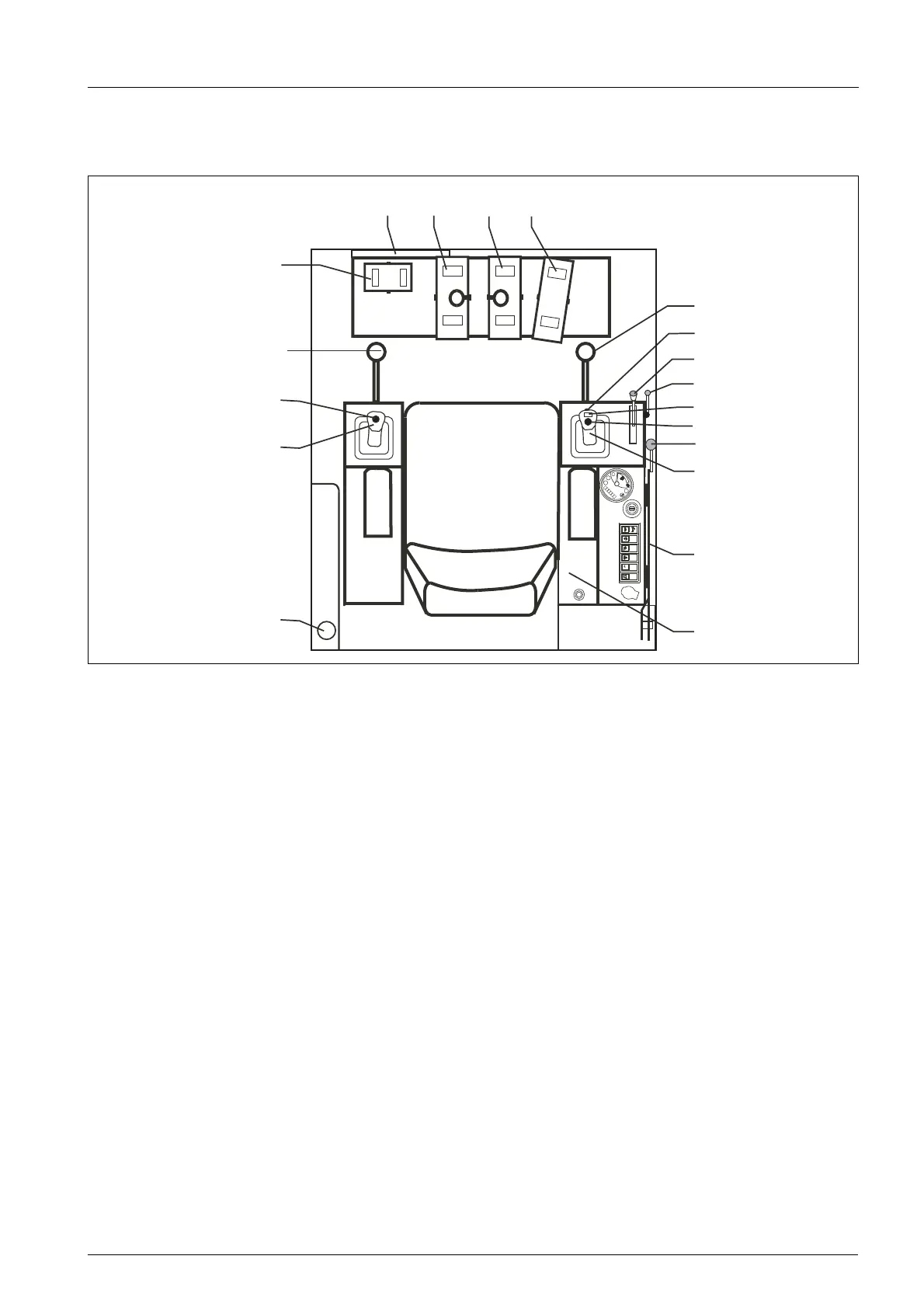

Fig. 12 Operator controls
1 Operation–excavator installation
2 OFF switch – excavator hydraulics / exit barrier
3 Brake - swing motion of uppercarriage
4 Operation – articulation
5 Crawler unit, left
6 Crawler unit, right
7 Additional control circuit – rock breaker, etc.
8 Operation – dozer blade
9 Manual throttle
10 Operation – excavator installation
11 Fuse and relay box
12 Change-over "ISO" to "SAE" control (option)
13 Vandalism guard (canopy only) (option)
14 Windshield washer fluid tank
15 Horn
16 Storage space for control rod of quick-attach system
17 Electropneumatic control of the additional control circuit – rock bearer, etc. (option)
18 Operation – dozer blade (option)
2
2
1
5
6
7
15
10
11
9
4
HR3.7-04-101
16
13
12
8
14
17
18
3
