4.7 Driving and steering
Driving
– Rocker pedal / hand lever (20/6) for right-hand
crawler chain:
– Rocker pedal / hand lever (20/5) for left-hand
crawler chain:
Driving forward or reverse
• Move the rocker pedal / hand lever on the right
(20/6) and the left (20/5) equally forward or back-
ward.
Cornering
• Reduce the speed of one crawler chain according
to the curve.
Spot-turning
• Operate the rocker pedal / hand lever for the right
and left-hand crawler chains in an opposed
manner.
Turning over one crawler chain
• Operate the rocker pedal / hand lever for the right
or left-hand crawler chain.

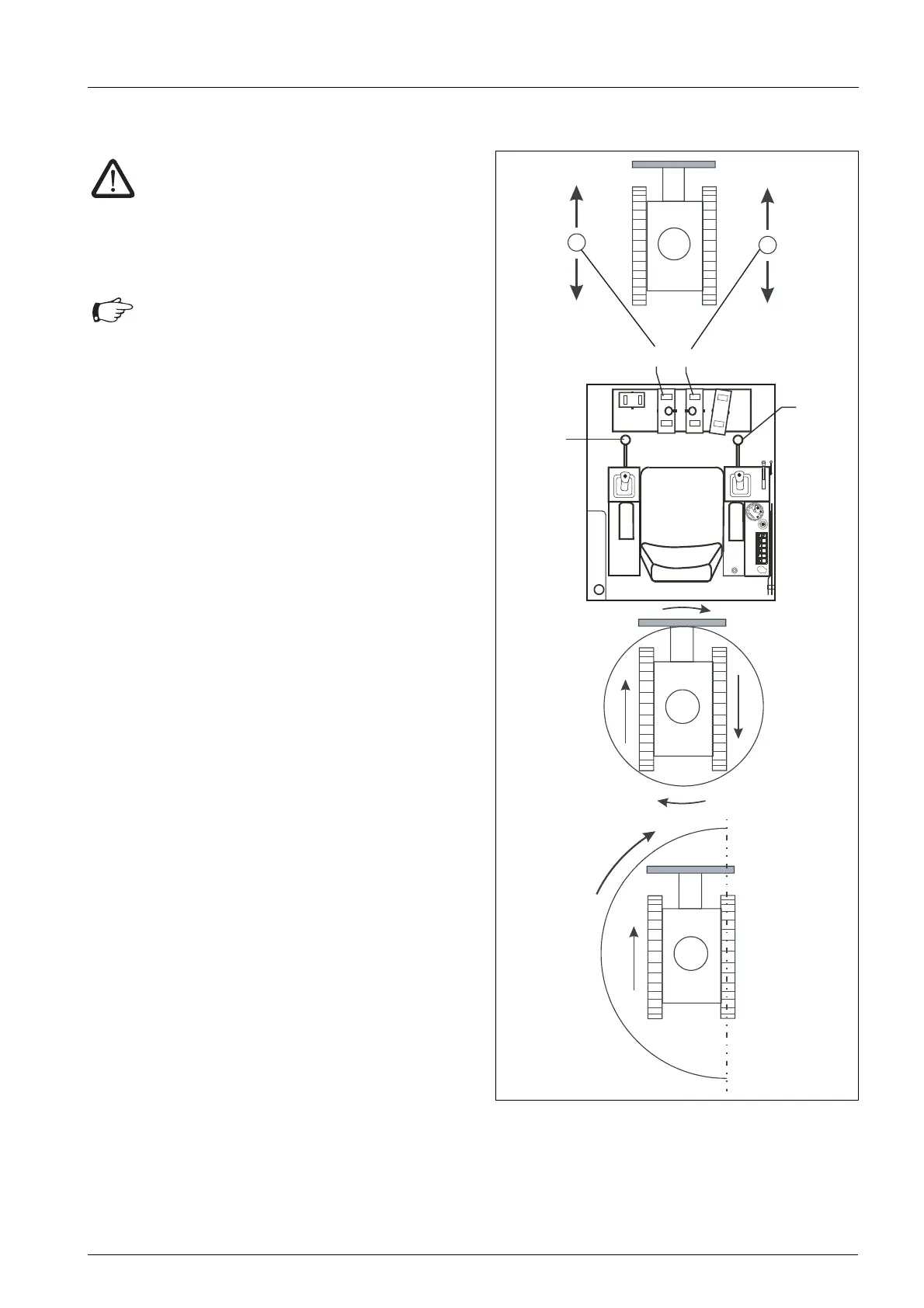

Fig. 20 Driving and steering
A
B
C
D
HR3.7-03-17
0
4/4
h.
56
2
2
R
Danger to life
due to incorrect operation.
• Always observe that the direction of travel
always relates to the undercarriage (drive
at the rear, dozer blade in front)
Attention
The engine must be switched off before lifting
the exit barrier (20/2) and leaving the
machine.
A) forward
B) reverse
C) forward
D) reverse
